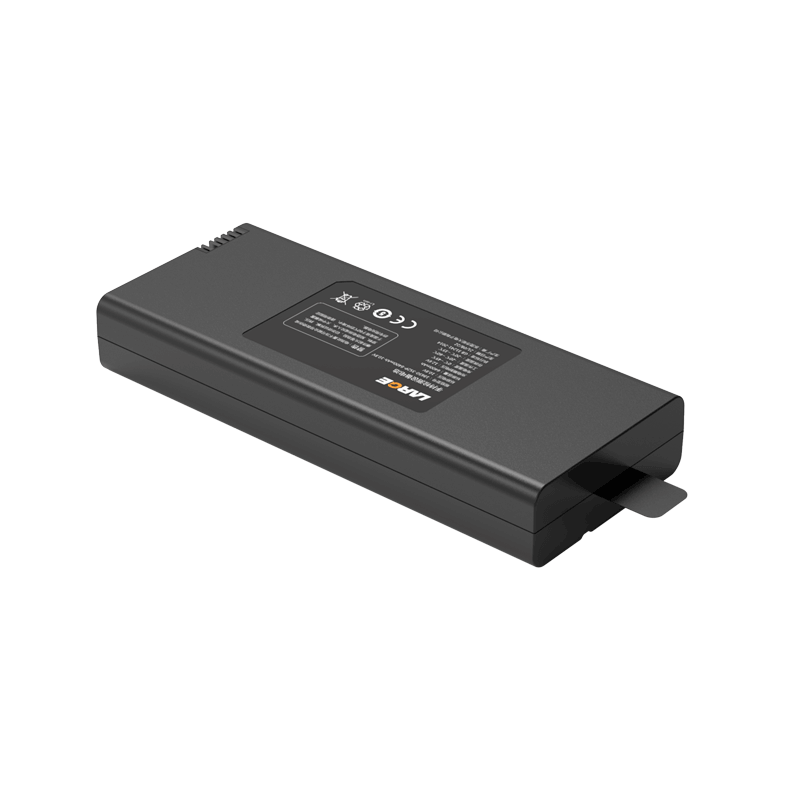

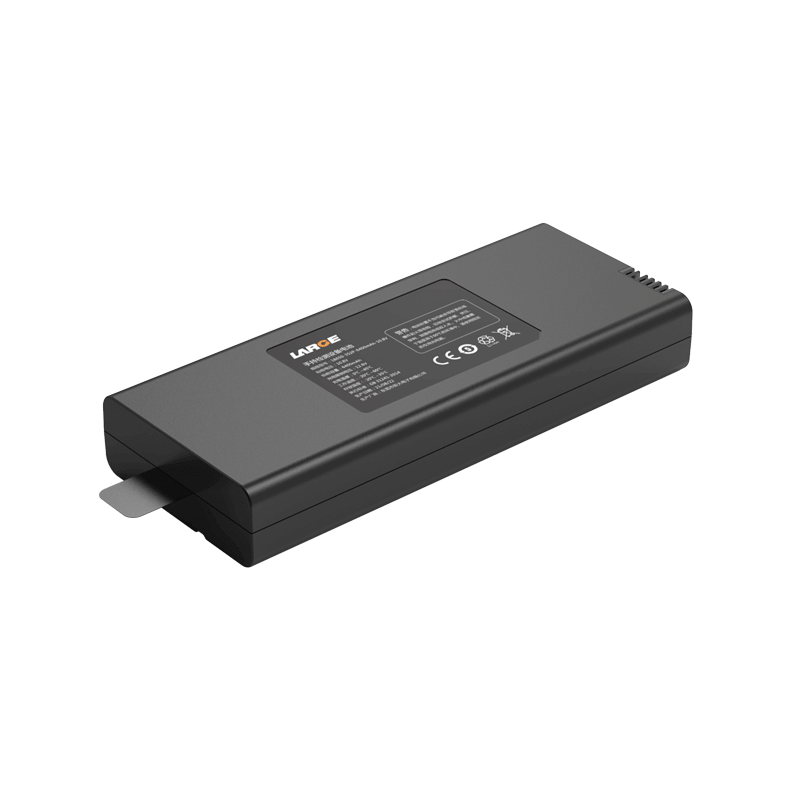

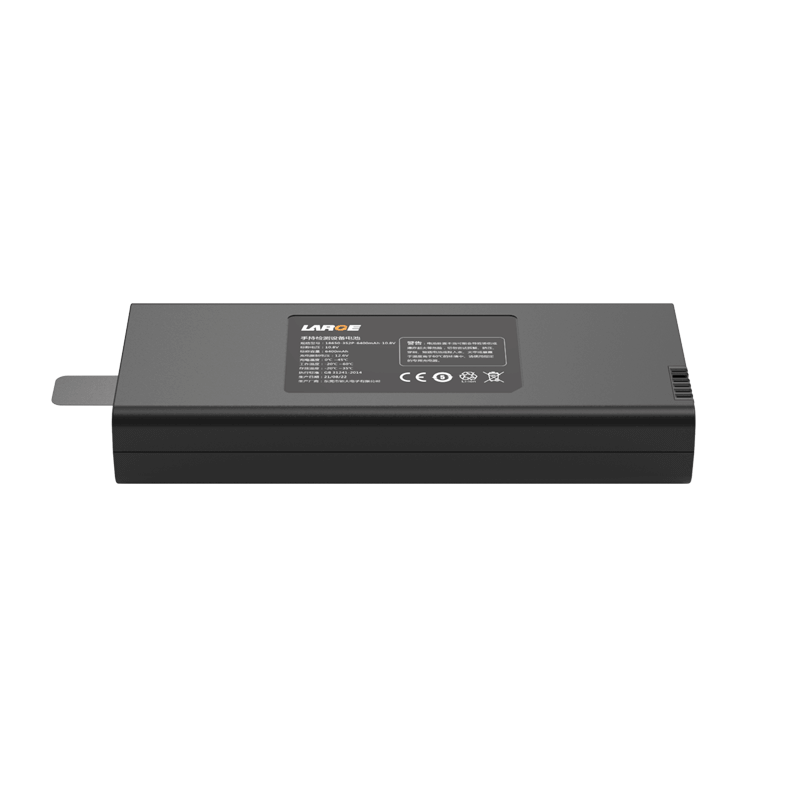

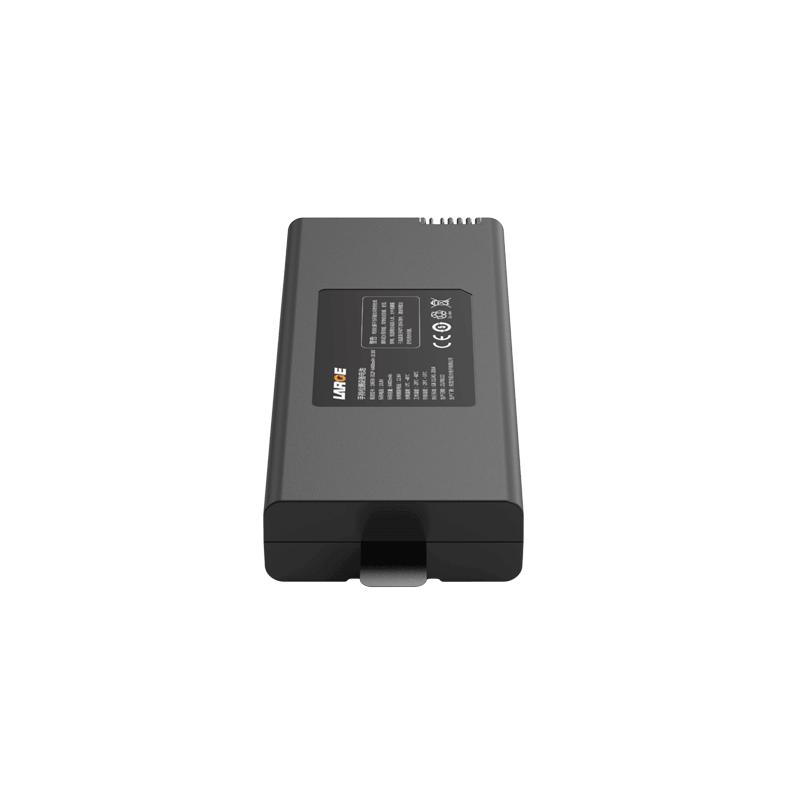

Custom Lithium ion Battery Pack
Product number: 08DQ0039-01
Cell model: 18650-3350MAH-3.6V
Specification: 18650-3S2P-6400MAH-10.8V
Product size: 144*59.8*22.5mm
Nominal voltage: 10.8V
Nominal capacity: 6400mAh
Charging voltage: 12.6V
Charging current: ≤3.2A
Discharge current: ≤4.0A
Discharge cut-off voltage: 7.5V
Product internal resistance: ≤200mΩ
Battery weight: 350G
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60 ℃
Storage temperature: -20 to 35 ° C
Battery case: ABS+PC case
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection, etc.
Application: Radar equipment, portable ultrasonic exploration equipment, portable mapping equipment
Product Features
1.ABS+PC shell increases battery reliability and firmness.
2.Connector output terminal: A gold-plated shrapnel output is used to increase conductive reliability;
3.Communication management: The SYSTEM uses Ti-Smbus software to manage the chip, transmit data precisely and control the temperature accurately, minimizing security risks.
4.The battery pack has good safety, nice discharge performance and long cycle life.
5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
