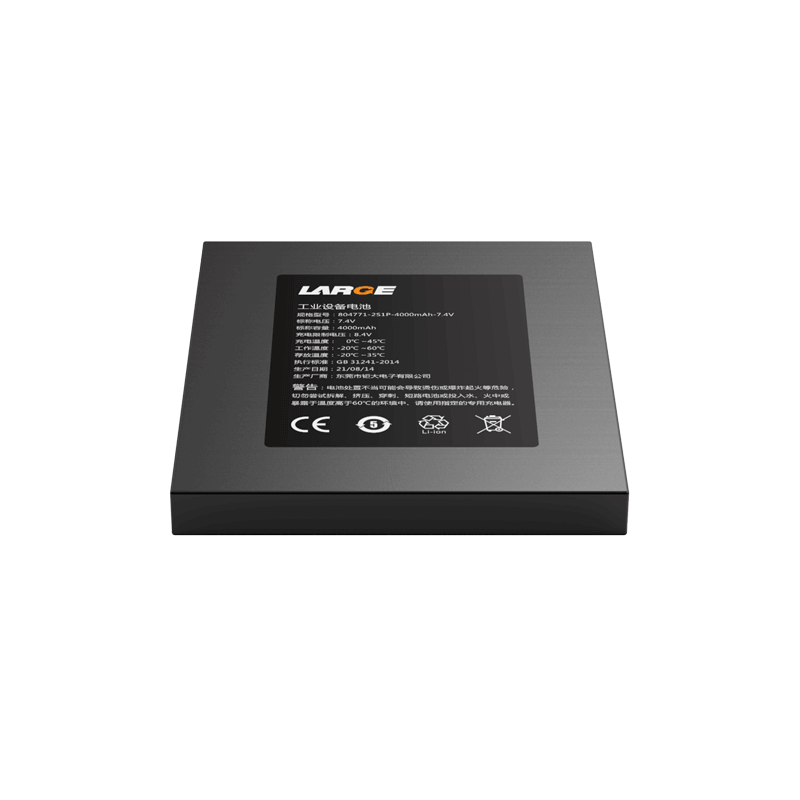

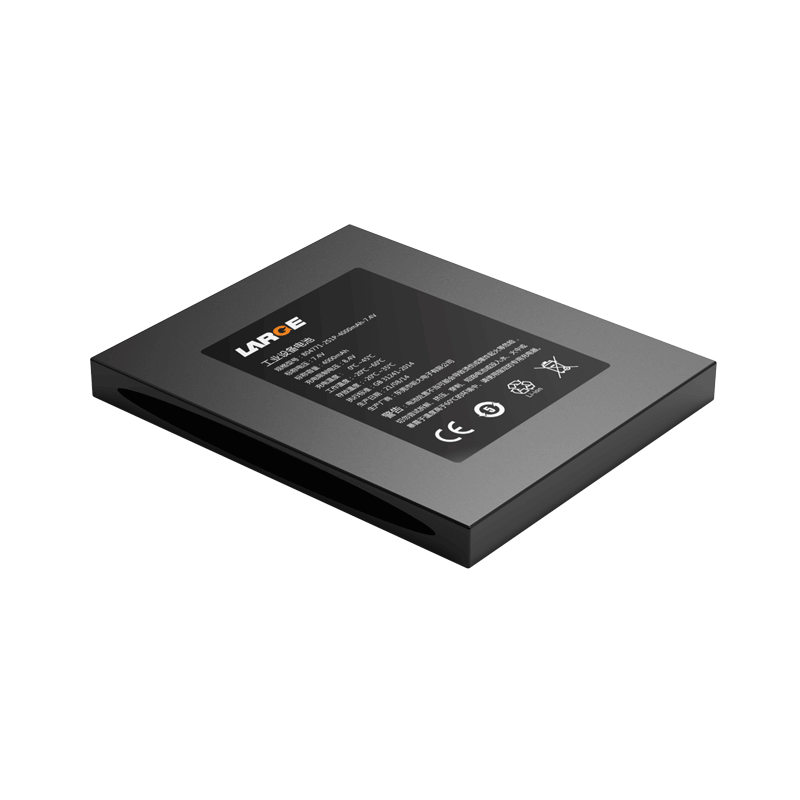

4000mAh 7.4V Lithium Polymer Battery for Industrial Equipment

Customization | Free Battery Solution

Product Detail

Product number: 36AQ363-03

Cell model: 804771-4000MAH-3.7V

Specification: 804771-2S1P-4000MAH-7.4V

Product size: 97*80*8.9mm (Max)

Nominal voltage: 7.4V

Nominal capacity: 4000mAh

Internal resistance: ≤250mΩ

Charging voltage: 8.4V

Charging current: ≤2A

Discharge current: ≤4A

Discharge cut-off voltage: 6.0V

Battery weight: 140G

Charging temperature: 0 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 to 35 ° C

Battery package: blue PVC heat shrinkable film package

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Portable equipment, industrial equipment


Product Features

1.Blue PVC heat shrinkable film package is simple, reliable and easy to be installed.

2.Battery protection management: Adopt special protection chip for lithium battery with good stability, high precision monitoring and precise control, to eliminate potential safety hazards to the maximum.

3.The battery pack has good safety, nice discharge performance and long cycle life.

4.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
