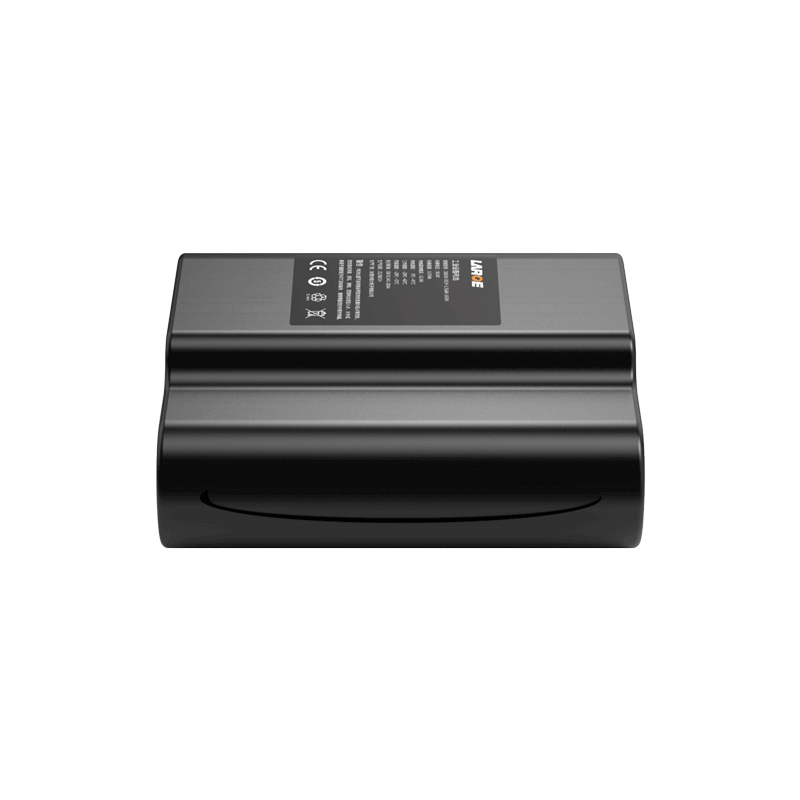

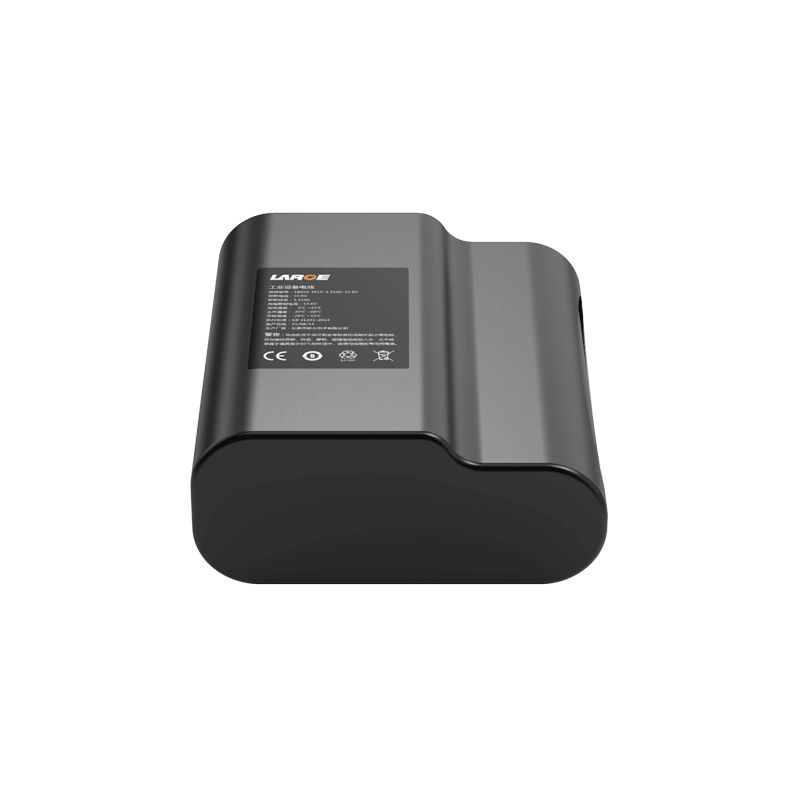

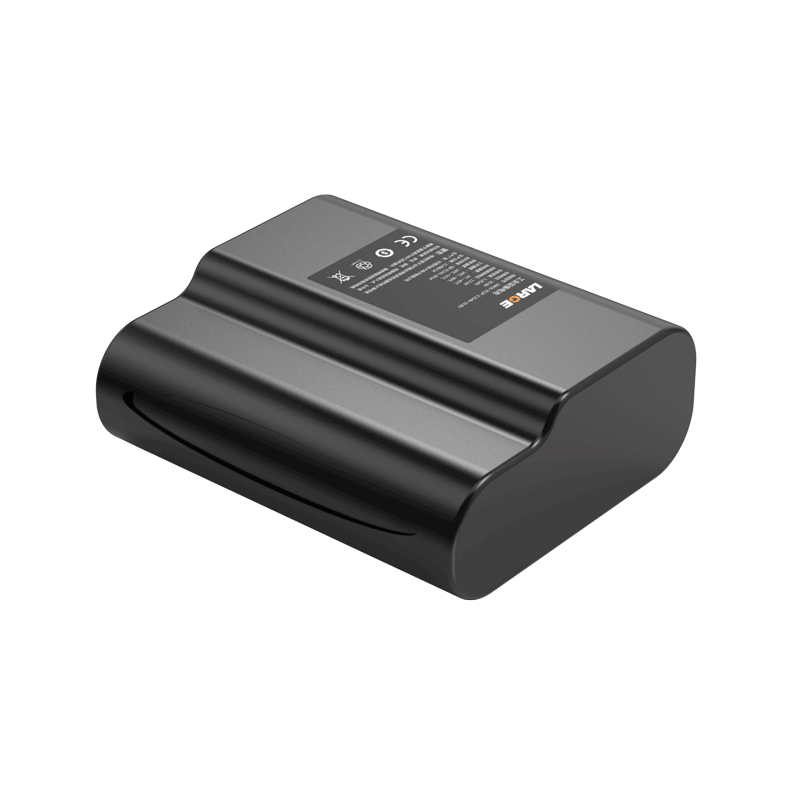

Custom Lithium ion Battery Pack
Product number: 01WQ0087-03
Cell model: 18650/3350mah /3.6V
Specification: 18650-3S1P-3.35AH-10.8V
Product size: 67*57*24mm (Max)
Nominal voltage: 10.8V
Nominal capacity: 3.35Ah
Charging voltage: 12.6V
Charging current: ≤ 1.675a
Discharge current: ≤3.35A
Discharge cut-off voltage: 8.4V
Product internal resistance: ≤200mΩ
Battery weight: 200G
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60 ℃
Storage temperature: -20 to +55 ° C (less than 1 month) -20 to 45 ° C (less than 3 months); -20~+25℃ (less than 12 months)
Battery package: PVC
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Portable massager
Product Features
1.PVC process is simple, reliable and easy to be installed.
2.Onput terminal: Adopt GB UL wire output mode to increase conductive reliability.
3.Battery protection management: Adopt imported well-known protection chips with good stability, high precision monitoring and precise control, to eliminate safety risks to the maximum.
4.The battery pack has good safety, nice discharge performance and long cycle life.
5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
