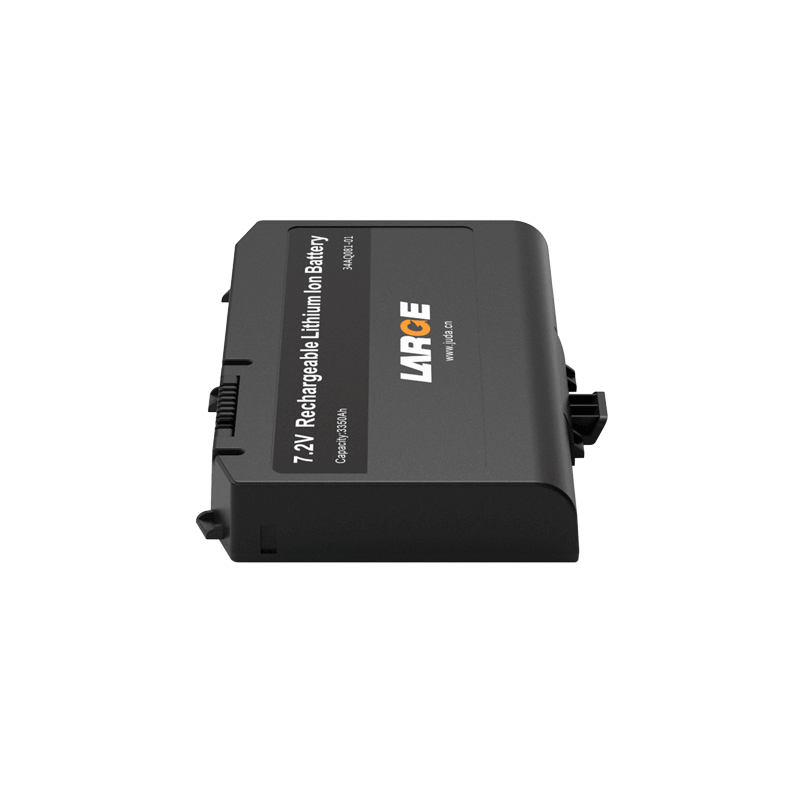

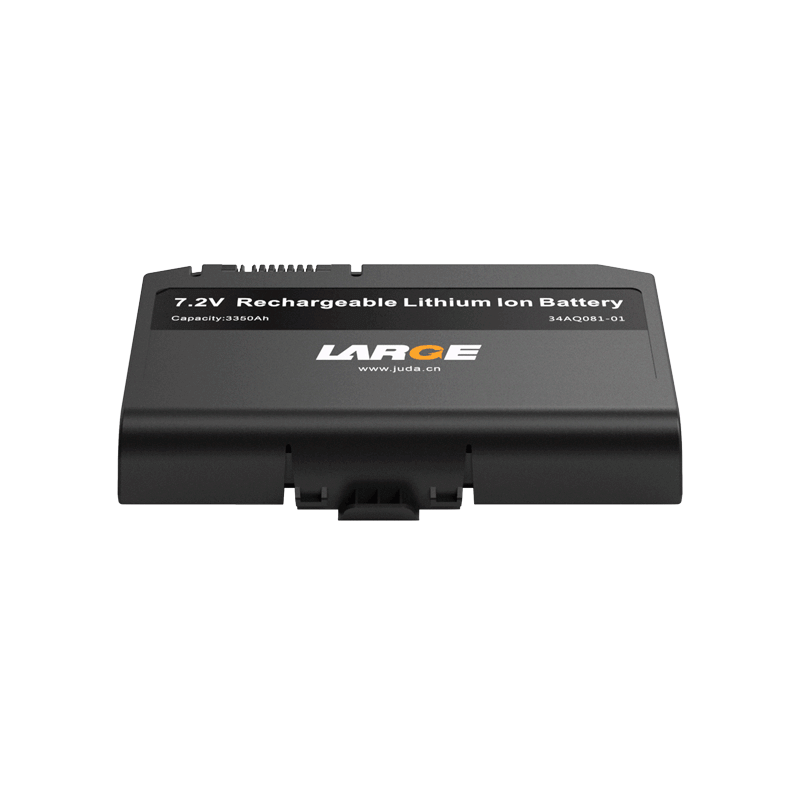

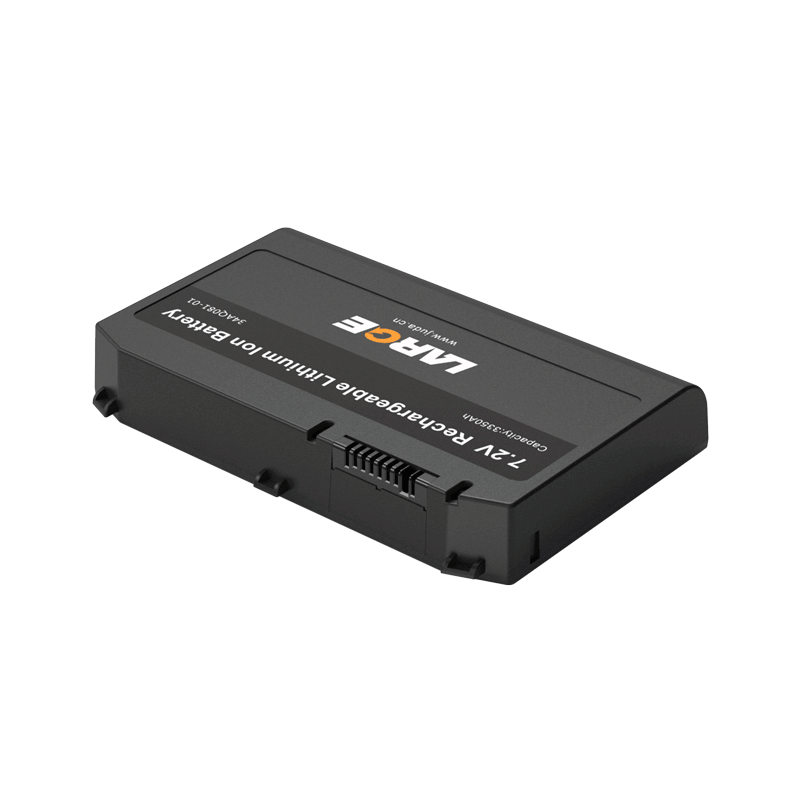

Product number: 34AQ081-01
Cell model: 18650/3350mah /3.5V
Product size: 136.5*86.6*22mm
Nominal voltage: 7.2V
Nominal capacity: 13.4Ah
Charging voltage: 8.4V
Charging current: ≤10A
Discharge current: ≤ 6.5A
Discharge cut-off voltage: 5V
Product internal resistance: ≤180mΩ
Battery weight: 500G
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60 ℃
Storage temperature: -20 to +55 ° C (less than 1 month) -20 to 45 ° C (less than 3 months); -20~+25℃ (less than 12 months)
Battery package: plastic case
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.
Application: Wireless conference system
1.The plastic shell is simple, reliable and easy to be installed.
2.I2C communication protocol
3.Output terminal: Adopt the output mode of GB UL wire to increase conductive reliability.
4.Battery protection management: Adopt imported well-known protection chips with good stability, high precision monitoring and precise control, to eliminate safety risks to the maximum.
5.The battery pack has good safety, nice discharge performance and long cycle life.
6.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
