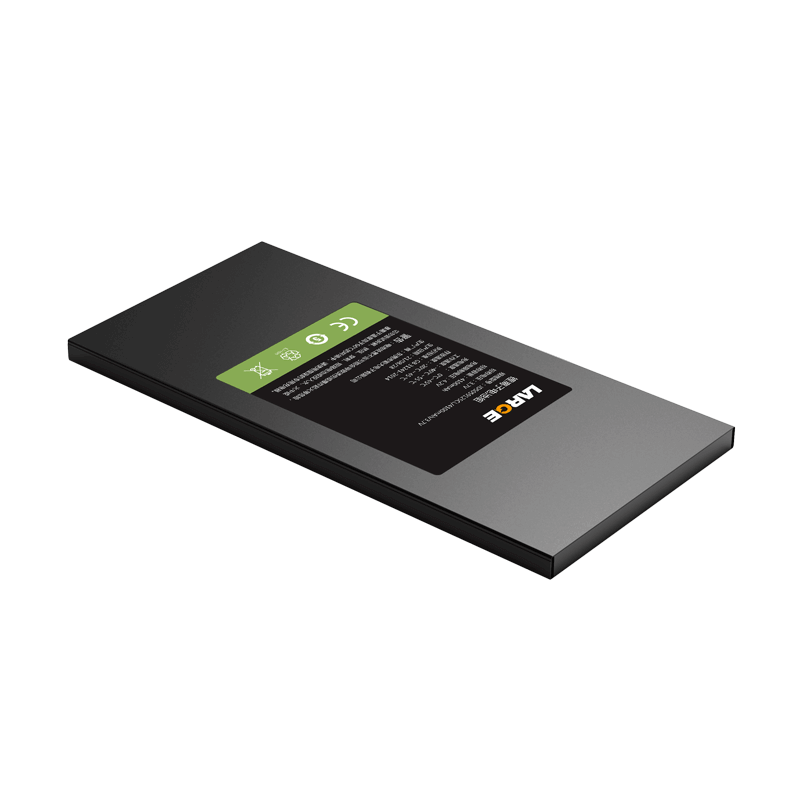

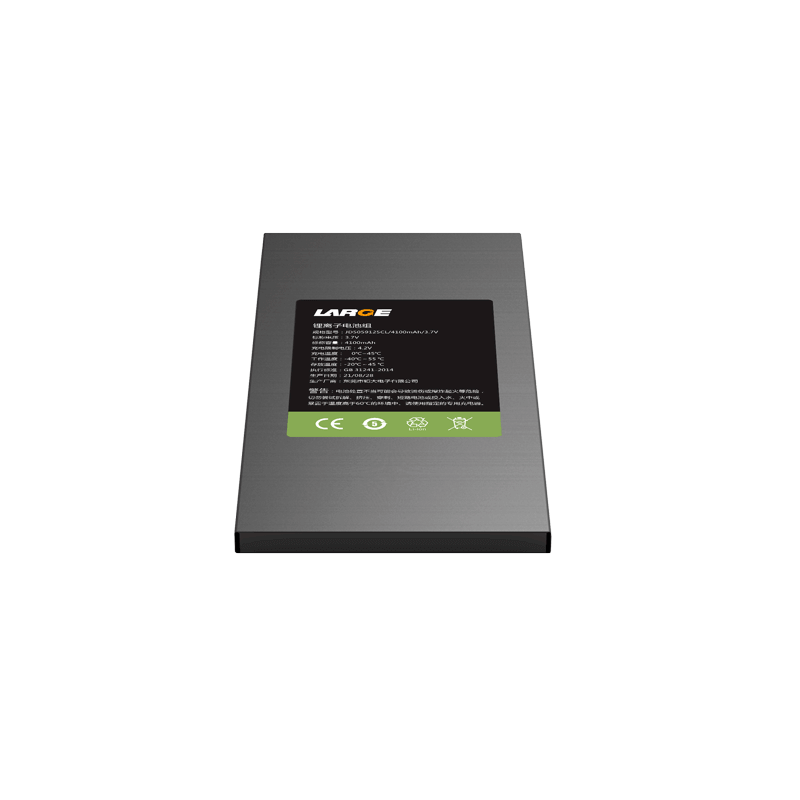

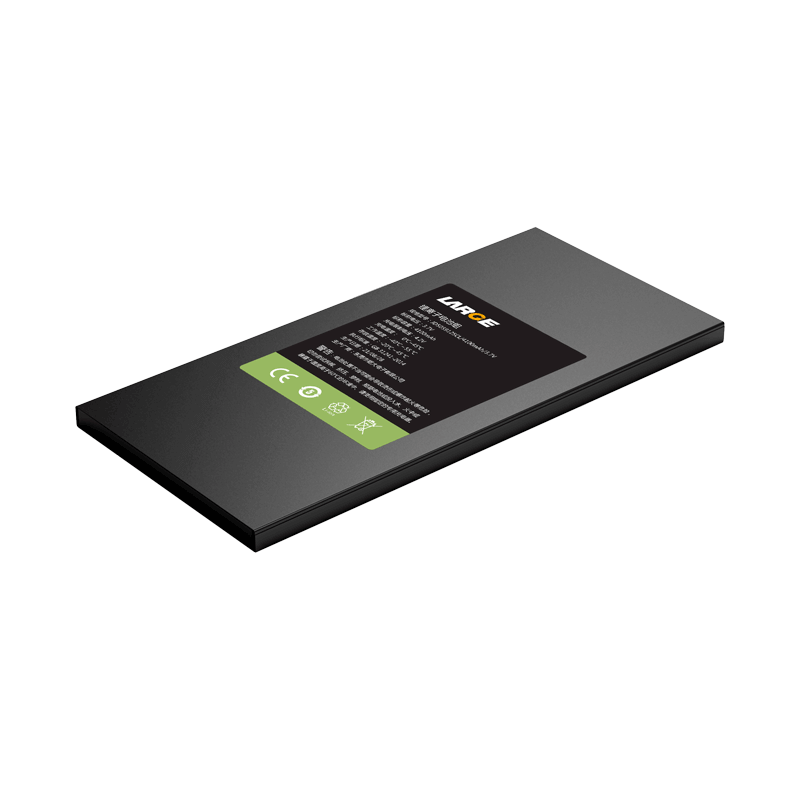

Custom Lithium ion Battery Pack
Product number: 35AQ712-01
Cell model: JD5059125CL/4100mAh/3.7V
Specification: JD5059125CL-1S1P-3.7V-4100mah
Product size: 130*60*5.5mm (Max)
Nominal voltage: 3.7V
Nominal capacity: 4100mAh
Charging voltage: 4.2V
Charging current: 4100mA
Discharge current: 4100mA
Discharge cut-off voltage: 2.5V
Product internal resistance: ≤180mΩ
Battery weight: 100G
Charging temperature: 0 ~ 45℃
Discharge temperature: -40 ~ 55 ℃
Storage temperature: -20 to +45 ° C (less than 1 month) -20 to 35 ° C (less than 3 months); -20~+20℃ (less than 12 months)
Battery encapsulation: low temperature injection molding + labeling process
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Handheld terminal
Product Features
1.Low temperature injection molding and labeling process are simple and reliable, and easy to be installed.
2.Output terminal: Adopt the output mode of GB UL wire to increase conductive reliability.
3.Battery protection management: Adopt imported well-known protection chips with good stability, high precision monitoring and precise control, to eliminate safety risks to the maximum.
4.The battery pack has good safety, nice discharge performance and long cycle life.
5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
