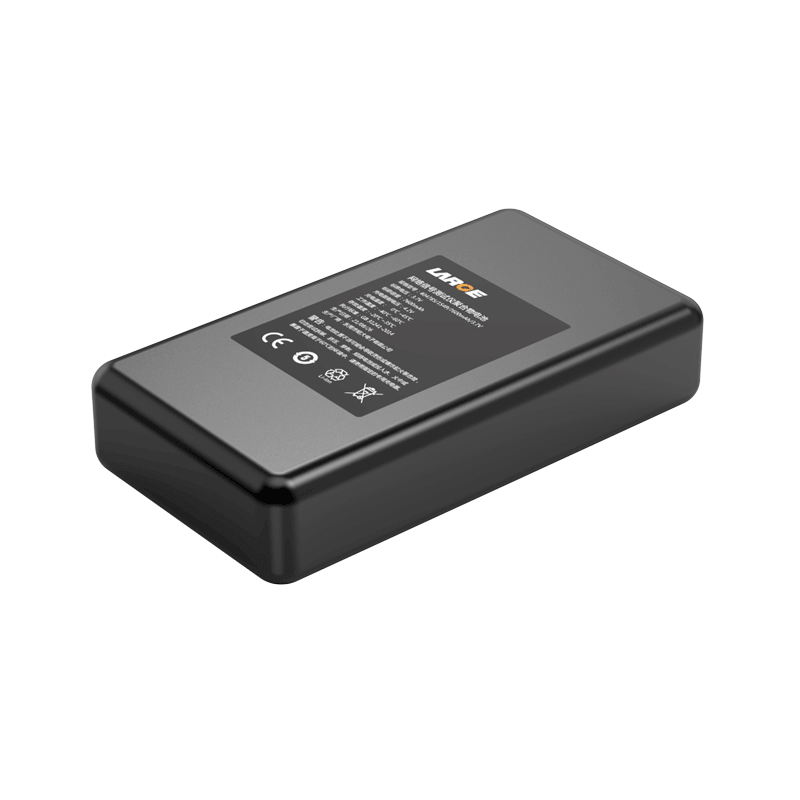

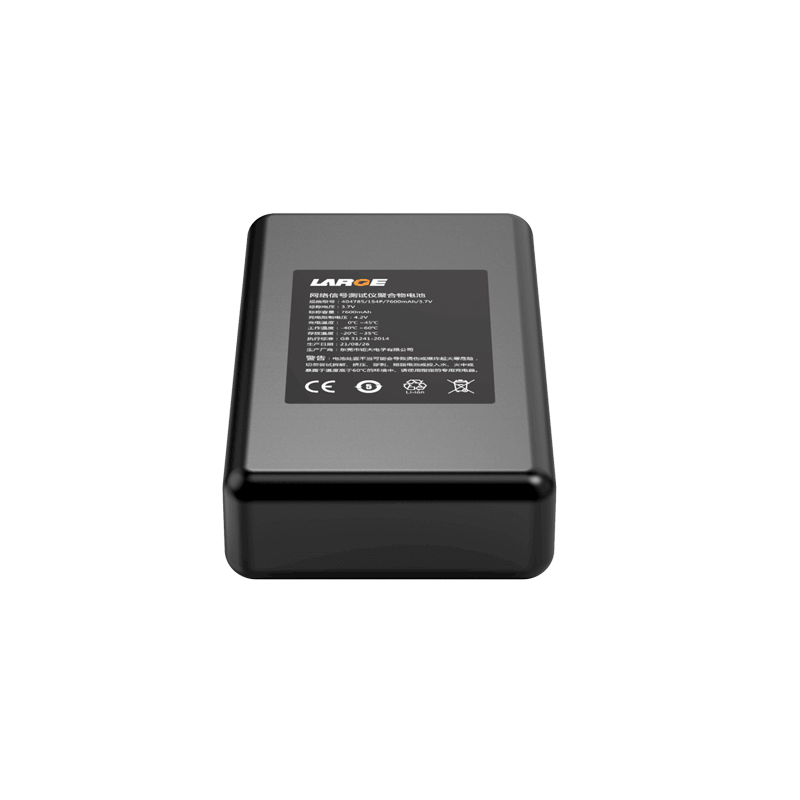

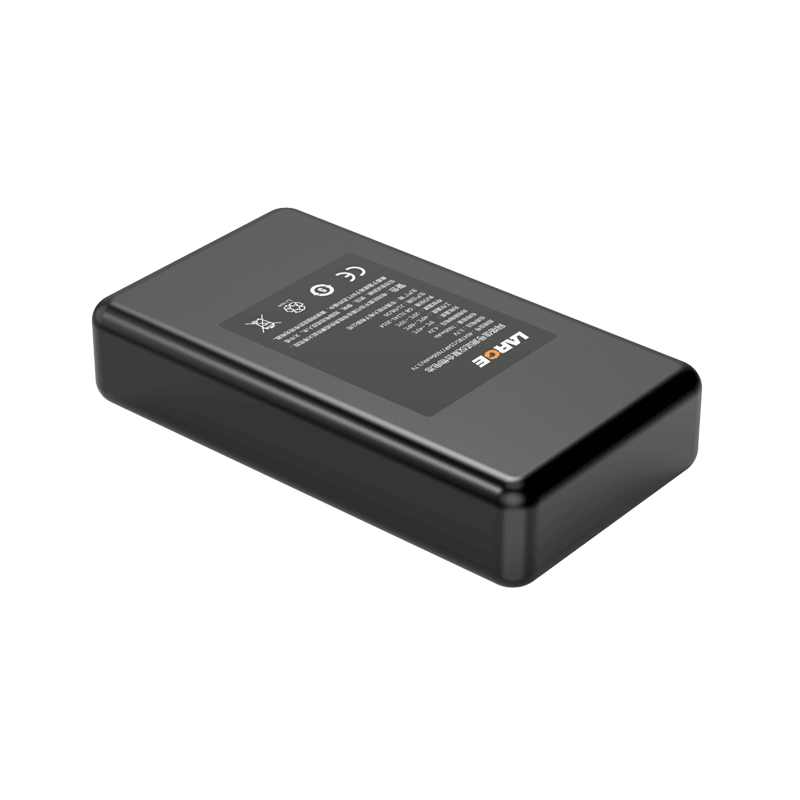

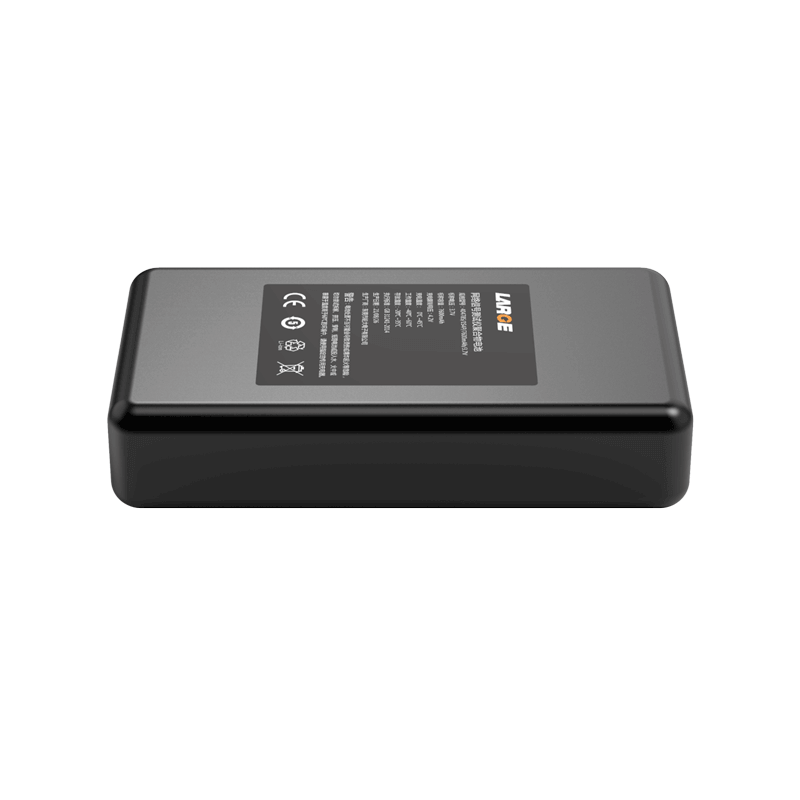

Custom Lithium ion Battery Pack
Product number: 01WQ0037-11T
Cell model: 404785/1900mah /3.7V
Specification: 404785/1S4P/7600mAh/3.7V
Nominal voltage: 3.7V
Nominal capacity: 1900mAh
Charging voltage: 4.2V
Charging current: ≤3.8A
Discharge current: 1.5A
Instantaneous discharge current: 3.8A
Discharge cut-off voltage: 3.0V
Product internal resistance: ≤200mΩ
Battery weight: 0.15kg
Product size: 89*47.5*16.5mm (Max)
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60 ℃
Storage temperature: -20 to 35 ° C
Battery case: soft case
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Portable devices
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
