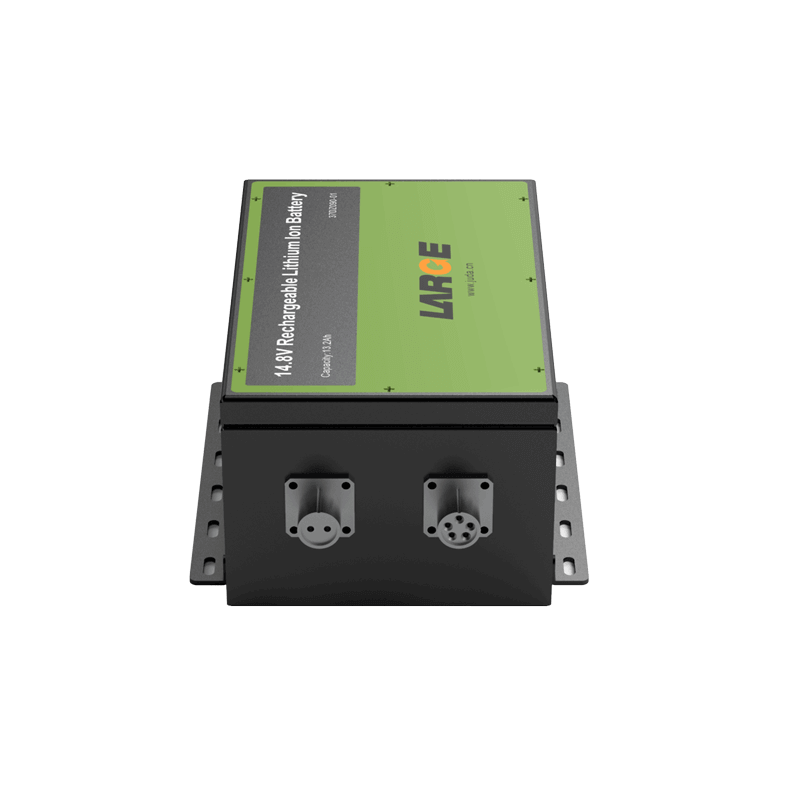

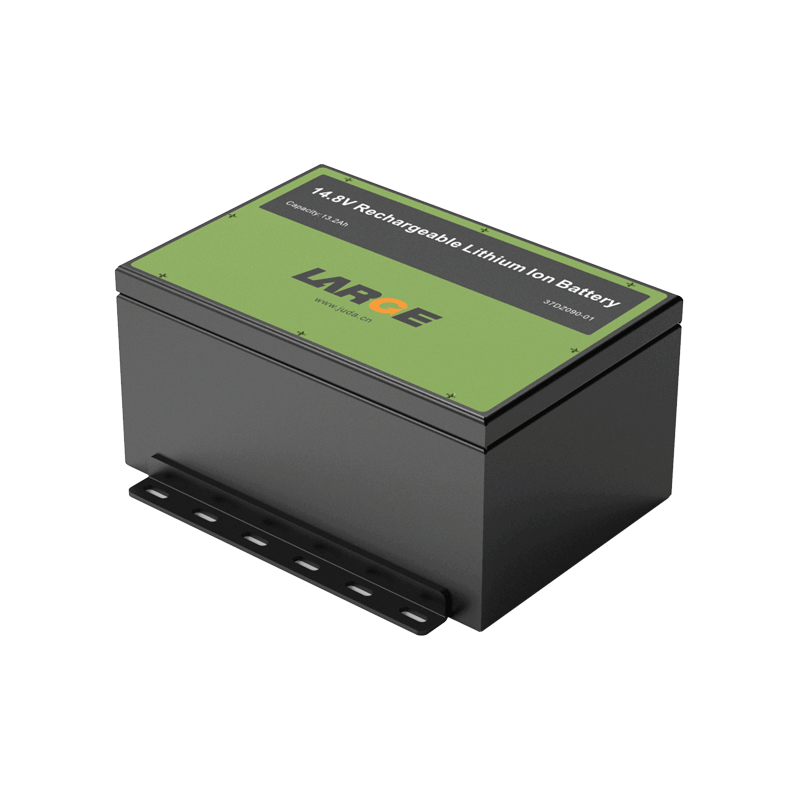

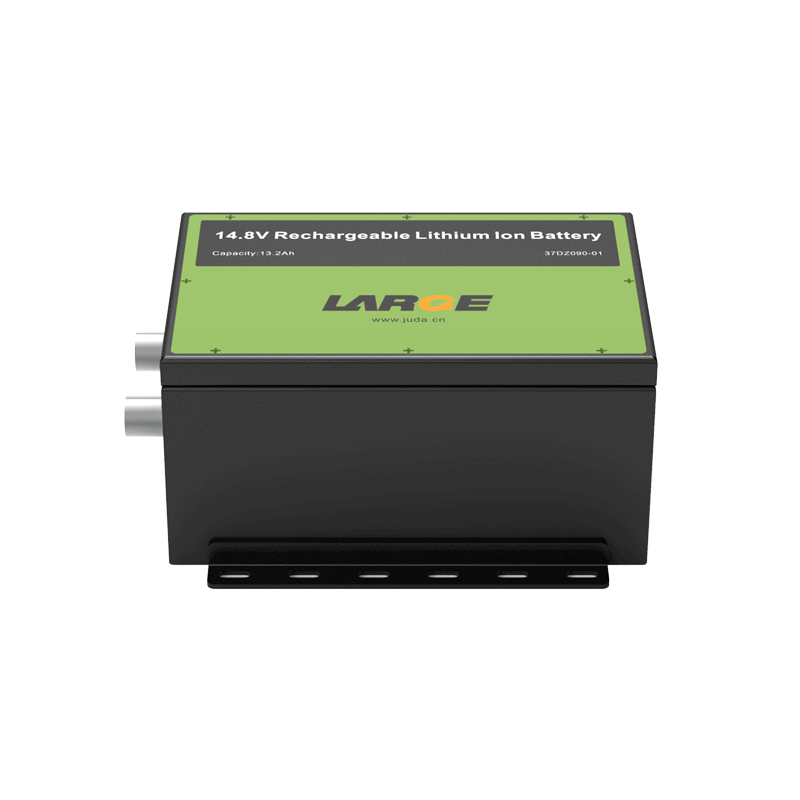

Project number: 37DZ090-01
Cell model: 18650 3.7V/2200mAh
Specification: 4S6P/14.8V/ 13.2AH (low temperature)
Nominal voltage: 14.8V
Nominal capacity: 13.2Ah
Charging voltage: 16.8V
Charging current: ≤6A
Discharge current: 6A
Instantaneous discharge current: 10-20A
Discharge cut-off voltage: 10V
Internal resistance: ≤250mΩ
Battery weight: 3.5kg
Product size: 90*120*180mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -40 ~ 60 ℃
Storage temperature: -40 ° C to 45 ° C
Battery case: metal plate shell
Communication: 485 communication
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature communication, etc.
Application: Instrumentation equipment power supply
1.Low temperature -40 discharge
3.485 MODBUS communication
4.The battery pack has good safety and long cycle life.
5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
