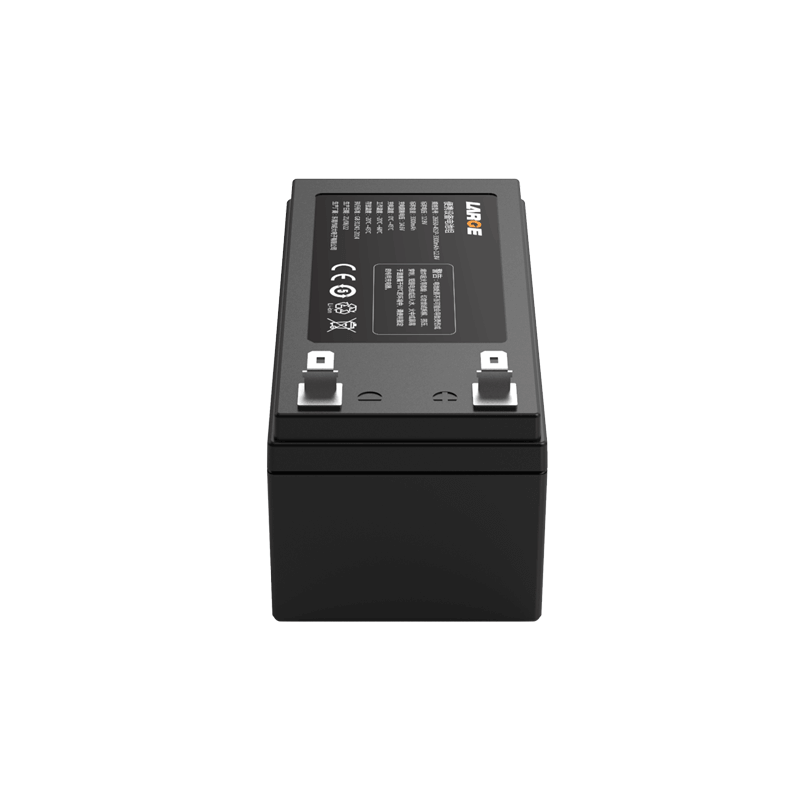

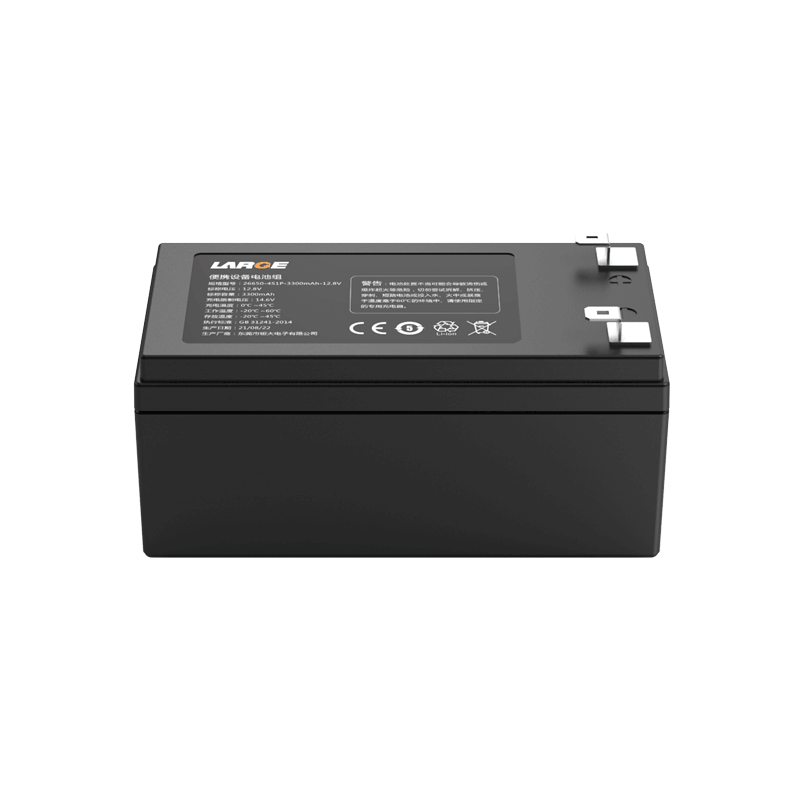

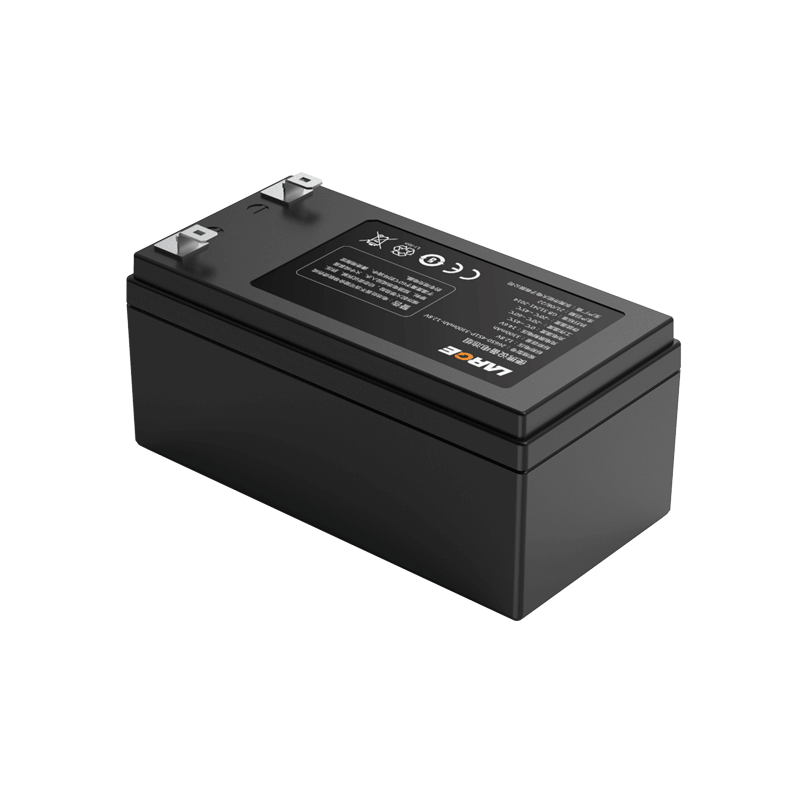

Custom Lithium ion Battery Pack
Product number: 33DZ023-01A
Cell model: 26650/3.2V/3400mAh
Specification: 26650-4S1P-3300MAH-12.8V
Nominal voltage: 12.8V
Nominal capacity: 3300mAh
Charging voltage: 14.6V
Charging current: ≤1650mA
Discharge current: ≤3300mA
Instantaneous discharge current: 7-13A
Discharge cut-off voltage: 8.8V
Product internal resistance: ≤200mΩ
Battery weight: 400G
Product size: L*W*H 134.1*67.3*59.5mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60 ℃
Storage temperature: -20 to 45 ° C
Battery case: plastic case
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature and so on
Application: Backup power supply
Product Features
1.According to the CQC (GB31241-2014) standard.
2.Cell: Adopt super-safe lithium iron phosphate cell which can charge at -20℃.
3.The battery pack has good safety, low temperature performance and long cycle life.
4.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
