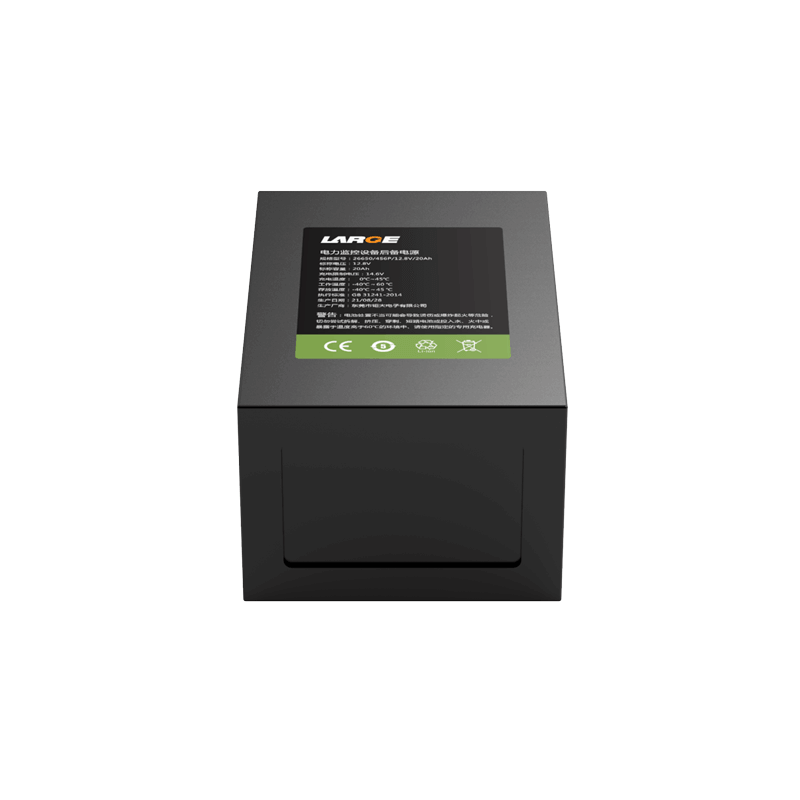

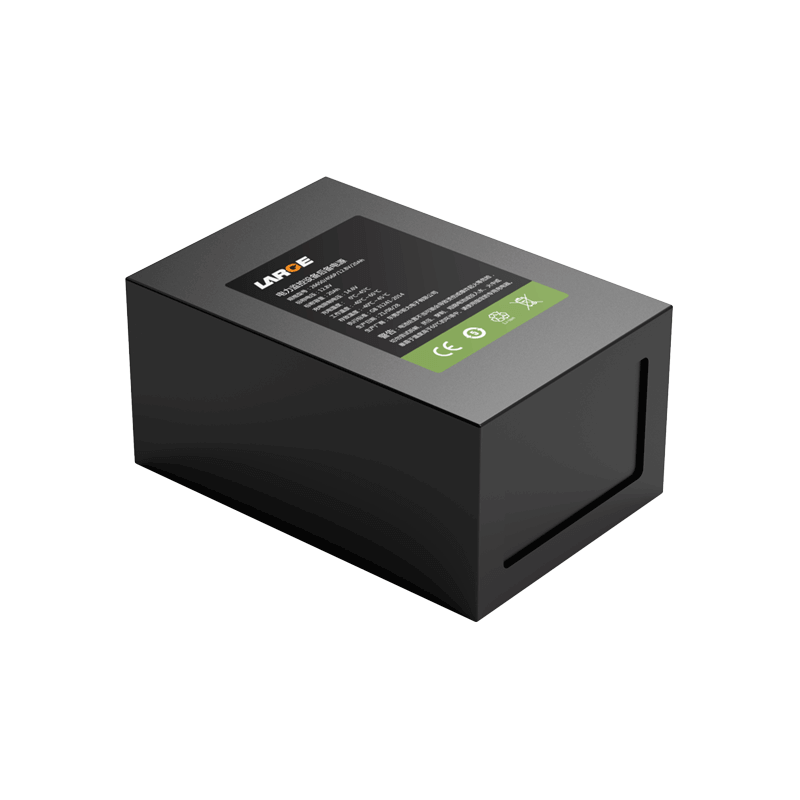

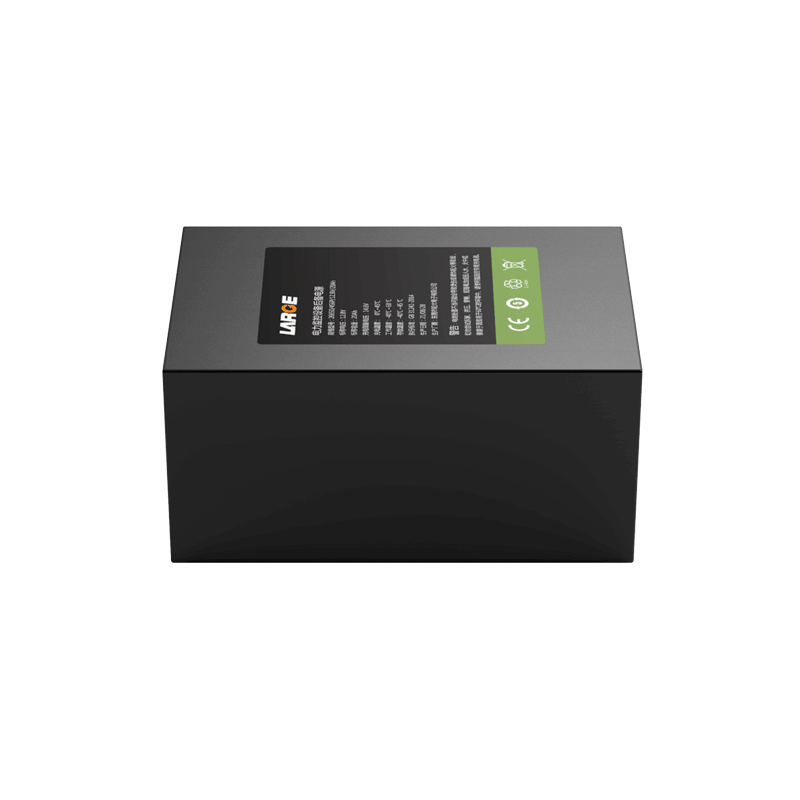

Custom Lithium ion Battery Pack
Project number: 37DZ013-05
Cell model: 26650 3.2V/ 3.3AH
Specification: 4S6P/12.8V/20Ah (low temperature)
Nominal voltage: 12.8V
Nominal capacity: 20Ah
Charging voltage: 14.6V
Charging current: ≤10A
Discharge current: 10A
Instantaneous discharge current: greater than 30A
Discharge cut-off voltage: 8V
Product internal resistance: ≤200mΩ
Battery weight: 2.5kg
Product size: 105*118*171mm
Charging temperature: -20 ~ 45℃
Discharge temperature: -40 ~ 60 ℃
Storage temperature: -40 ° C to 45 ° C
Battery case: PVC
Communication: no
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Backup power supply for portable devices
Product Features
1.Lithium iron phosphate low temperature charge and discharge battery
2.Temperature protection,
3.Large current discharge
4.The battery pack has good safety and long cycle life.
5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
