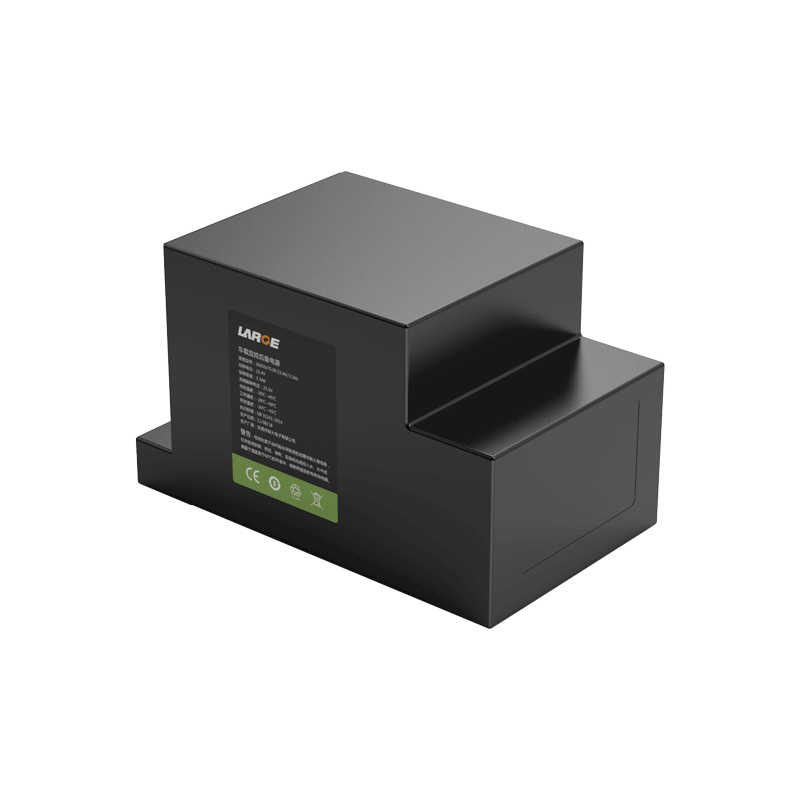

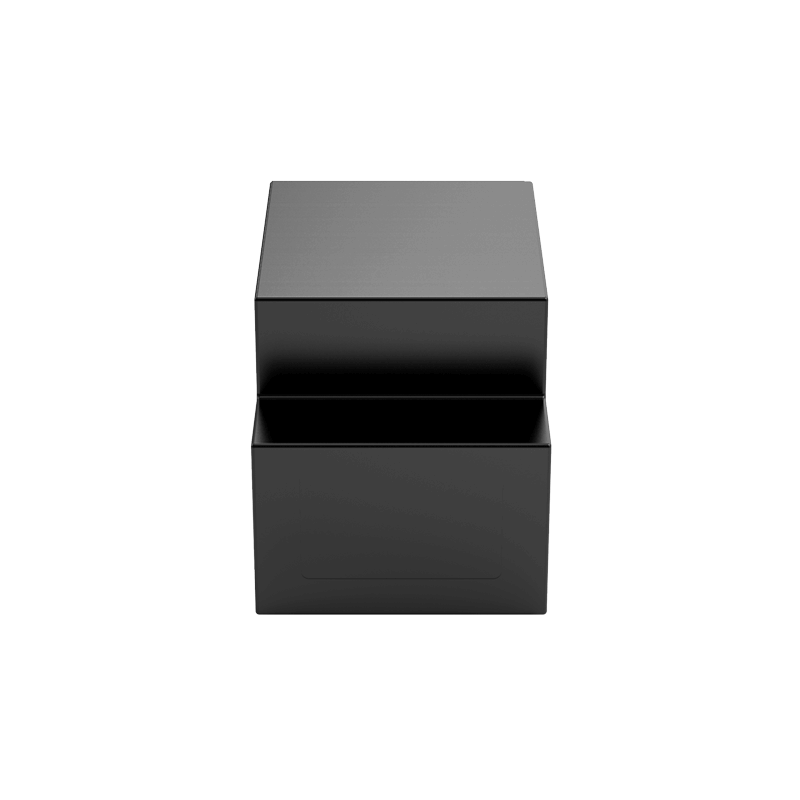

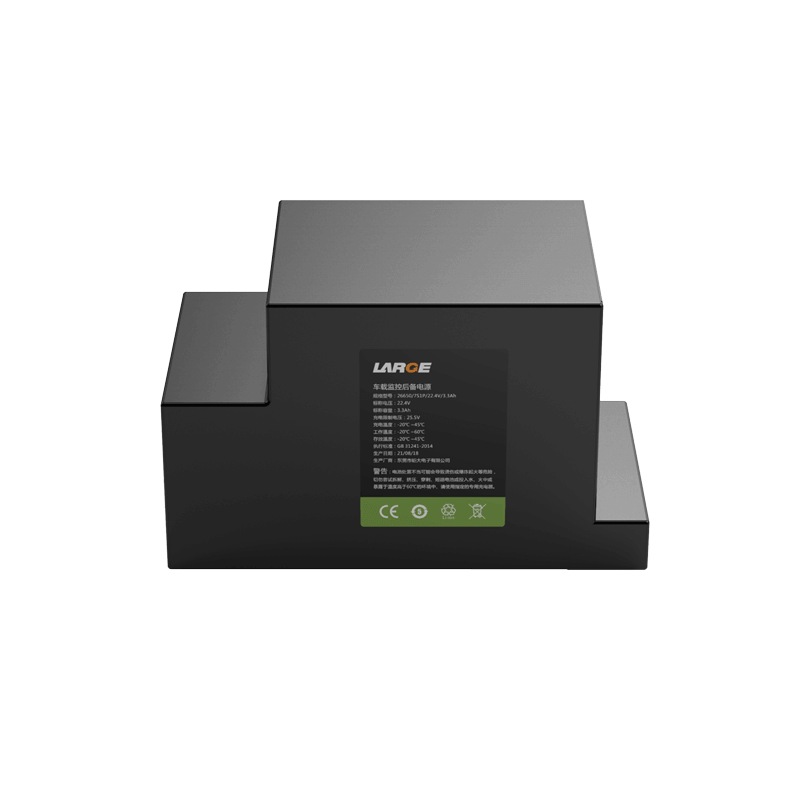

26650 3.2V 3.3Ah Backup Power Supply for Vehicle Monitoring

Customization | Free Battery Solution

Product Detail

Project number: 37DZ092-01

Cell model: 26650 3.2V/ 3.3AH

Specification: 7S1P/22.4V/3.3Ah

Nominal voltage: 22.4V

Nominal capacity: 3.3Ah

Charging voltage: 25.5V

Charging current: ≤1A

Discharge current: 1A

Instantaneous discharge current: less than 3A

Discharge cut-off voltage: 14V

Internal resistance: ≤250mΩ

Battery weight: 200G

Product size: 135*75*80mm (Max)

Charging temperature: -20 ~ 45℃

Discharge temperature: -20 ~ 60 ℃

Storage temperature: -20 to 45 ° C

Temperature protection: 65℃±5℃

Battery case: PVC

Communication: 485 communication

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, temperature protection, etc.

Application: Vehicle monitoring backup power supply


Product Features

1.Lithium iron phosphate low temperature battery

2.Temperature protection,

3.Small current discharge

4.The battery pack has good safetty and long cycle life.

5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
