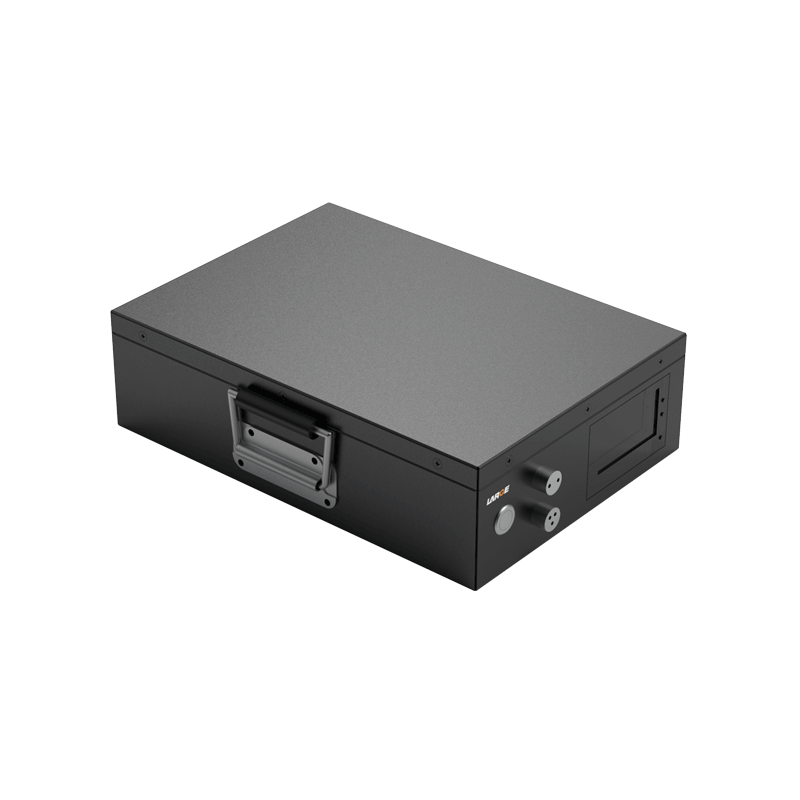

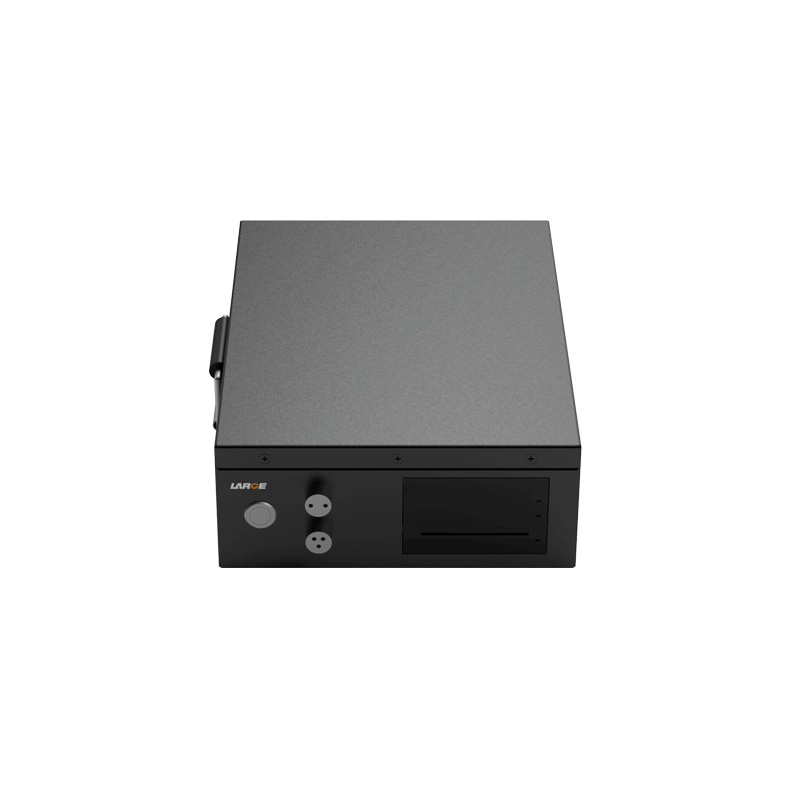

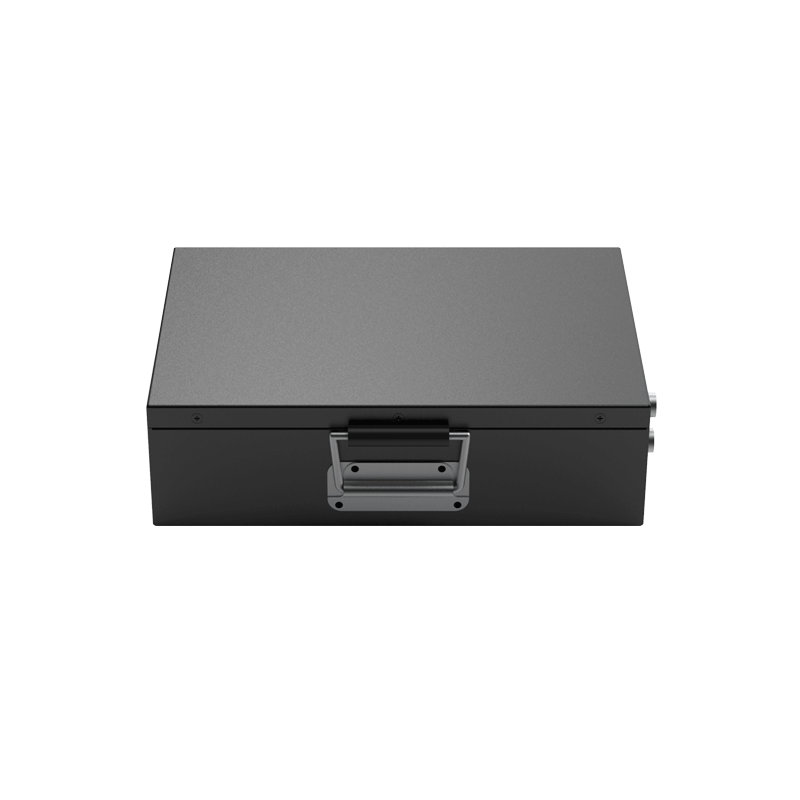

Custom Lithium ion Battery Pack
Project number: 37DZ089-01
Cell model: 26650 3.2V/ 3.3AH
Specification: 8S9P/25.6V/29.7Ah
Nominal voltage: 25.6V
Nominal capacity: 29.7Ah
Charging voltage: 29.2V
Charging current: ≤14A
Discharge voltage: 24V/45W(voltage regulator)
Discharge cut-off voltage: 16V
Product internal resistance: ≤200mΩ
Battery weight: 13.5kg
Product size: 100*248*345 mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60 ℃
Storage temperature: -20 to 45 ° C
Temperature protection: 75℃±5℃
Battery case: metal plate shell
Communication: RS485 communication with LCD display
Battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, temperature protection, etc.
Application: Industrial equipment backup power supply
Product Features
1.Lithium iron phosphate low temperature battery
2.Temperature protection
3.Constant voltage output
4.RS485 Communication with LCD
5.The battery pack has good safety and long cycle life.
6.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
