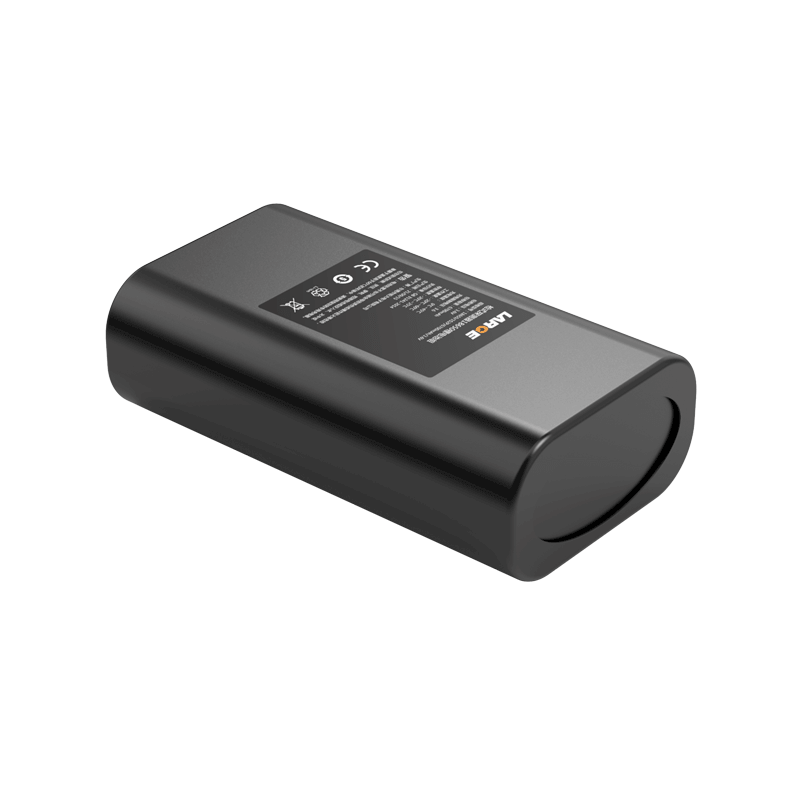

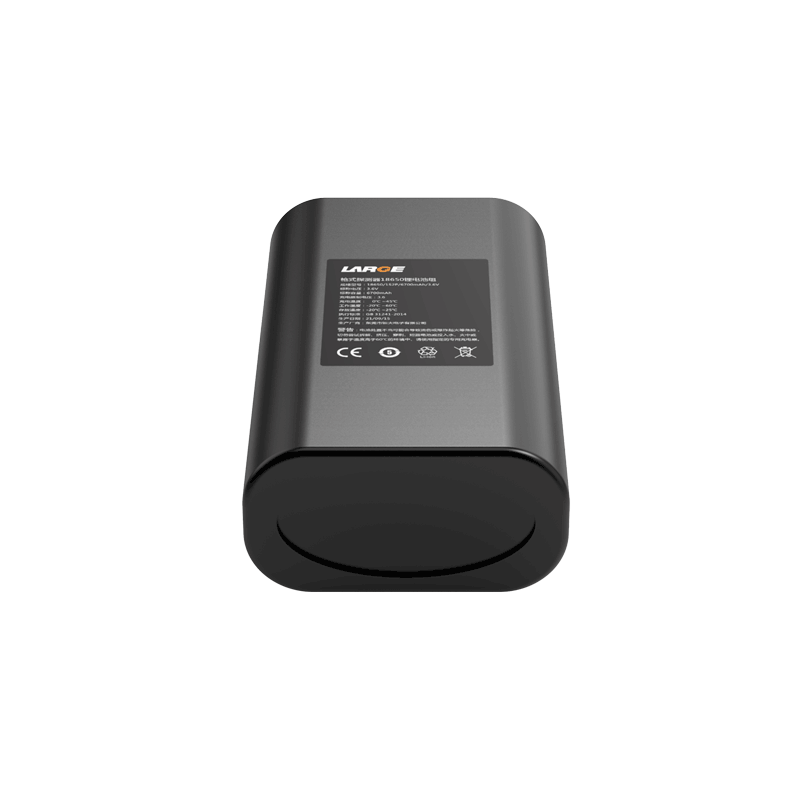

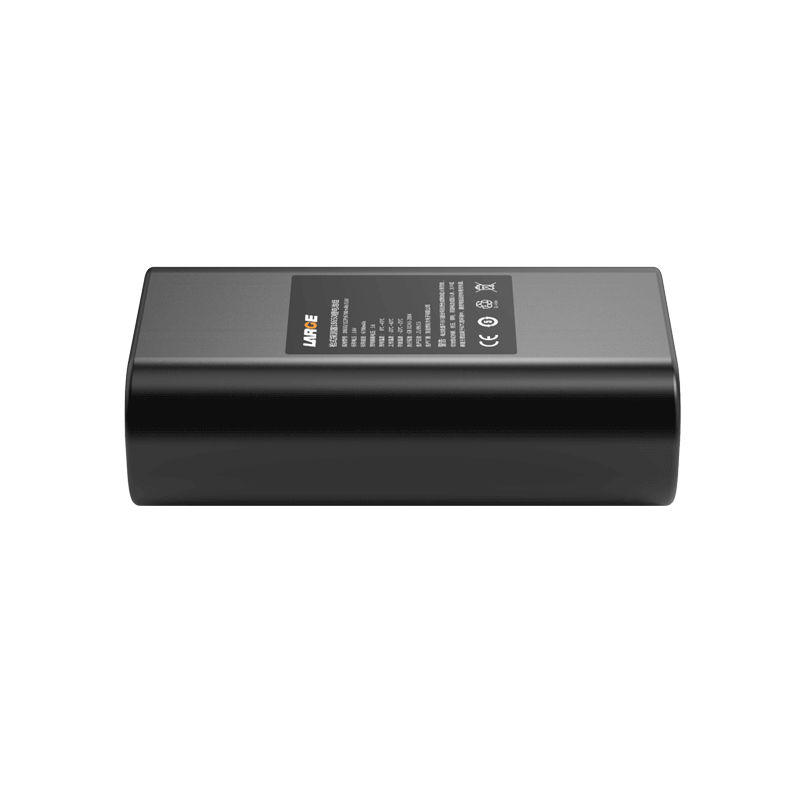

Project number: 08DQ0040-01
Cell model: NCR18650BF/3350mAh/3.6V
Specification: 18650/1S2P/6700mAh/3.6V
Nominal voltage: 3.6V
Nominal capacity: 6700mAh
Charging current: ≤2.0A
Discharge current: 2.3A
Instantaneous discharge current: 3.0A
Discharge cut-off voltage: 3.0V
Product internal resistance: ≤180mΩ
Battery weight: 130G
Product size: 20*38*68 mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 to 25 ° C
Battery case: ABS+PC
Intelligent lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Gun detector
