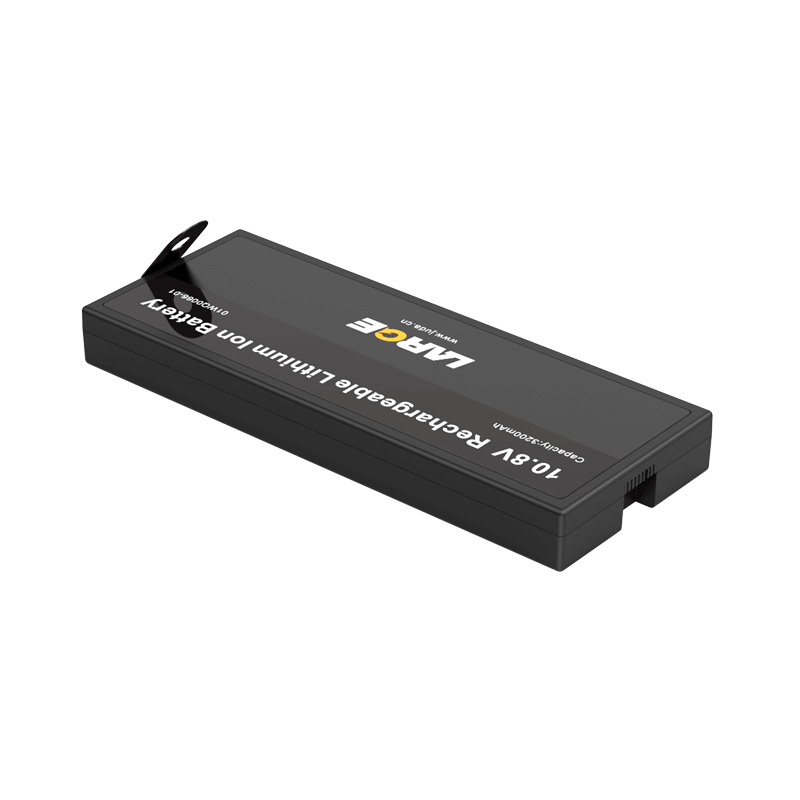

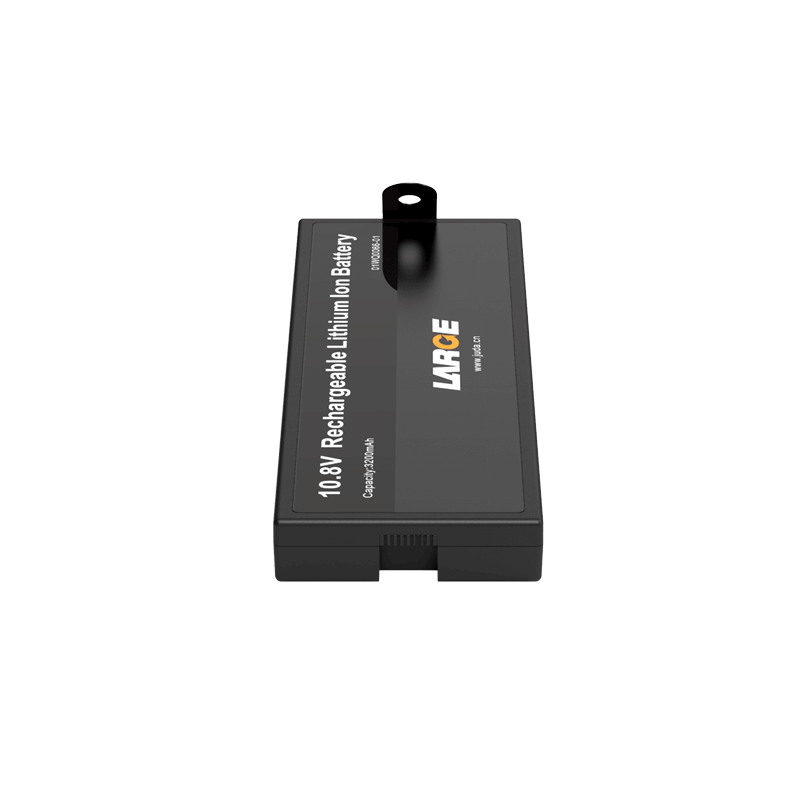

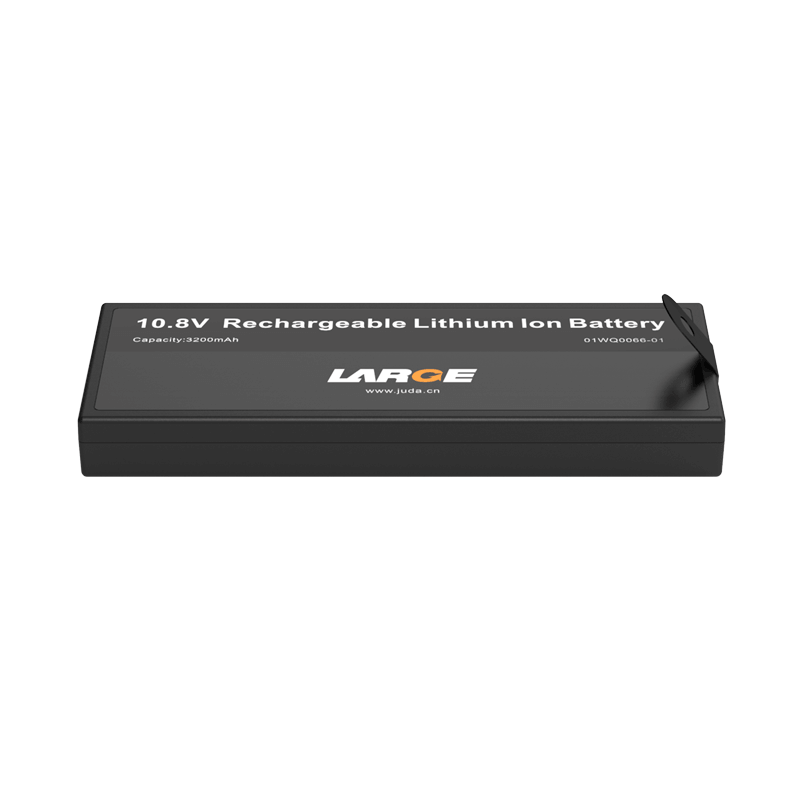

Custom Lithium ion Battery Pack
Product number: 01WQ0066-01
Cell model: 18650/3200mah /3.6V
Specification: 18650/3S4P/ 12.4AH /10.8V
Product size: 210*82.3*22.8mm
Nominal voltage: 10.8V
Nominal capacity: 12.4Ah
Charging voltage: 12.6V
Charging current: ≤5.0A
Discharge current: ≤8.0A
Discharge cut-off voltage: 8.4V
Internal resistance: ≤250mΩ
Battery weight: 750G
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60 ℃
Storage temperature: -20 to 35 ° C
Battery package: engineering plastic ABS+PC
Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.
Application: Portable computer devices, tablets, laptops, portable devices
Product Features
1.ABS+PC shell, an aluminum alloy shell, increases reliability and firmness to the battery.
2.Hardware output: Adopt gold-plated output mode to increase conductive reliability;
3.Communication management: The SYSTEM uses Ti-Smbus software to manage the chip, transmit data precisely and control the temperature precisely, so as to minimize security risks.
4.Battery management: Adopt imported TI protection chip with good stability, high precision monitoring, precise control, ESD protection, temperature protection and other functions,so as to eliminate security risks to the greatest extent.
5.The battery pack has good safety, nice discharge performance and long cycle life.
6.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
