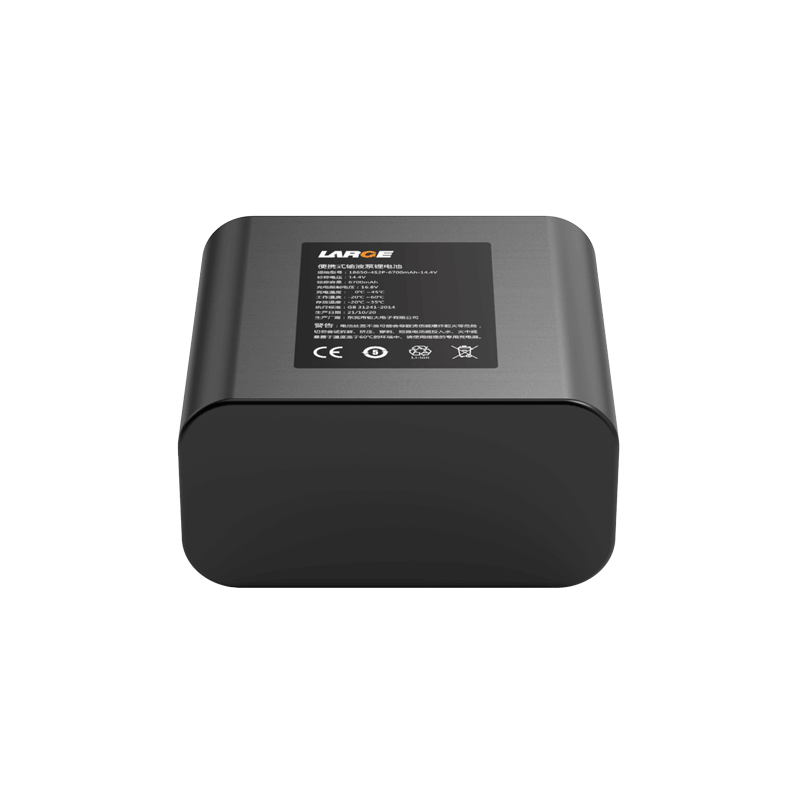

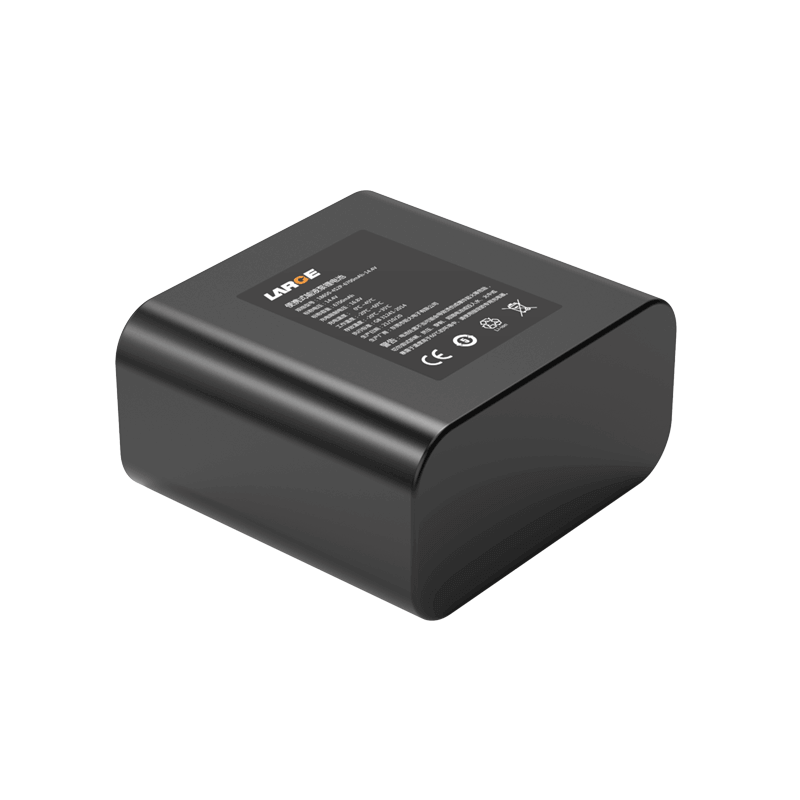

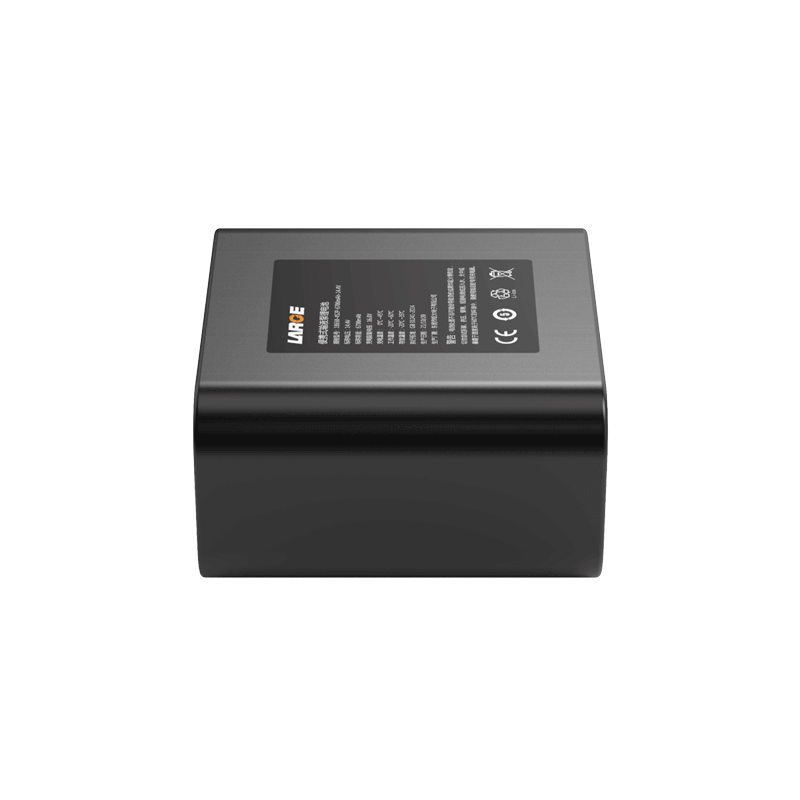

Product number: 08AQ606-05
Cell model: 18650-3350MAH-3.6V
Nominal voltage: 14.4V
Nominal capacity: 6700mAh
Charging voltage: 16.8V
Charging current: ≤ 3.3A
Discharge current: ≤6.0A
Discharge cut-off voltage: 11.2V
Product internal resistance: ≤180mΩ
Battery weight: 310g
Product size: 72*38.5*76mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60 ℃
Storage temperature: -20 to 35 ° C
Battery case: PVC heat shrinkable film package
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, secondary over voltage protection, current insurance, etc.
Application: Portable infusion pump medical equipment, portable medical equipment
1.Protective blue PVC heat shrinkable film package is simple, reliable and easy to be installed.
2.Data communication management: The SYSTEM uses Ti-Smbus software to manage the chip, transmit data precisely and control the temperature precisely, so as to minimize security risks.
3.Battery management: Adopt TI protection chip with good stability, high precision monitoring, precise control, ESD protection, temperature protection and other functions.
4.The battery pack has good safety, nice discharge performance and long cycle life.
5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
