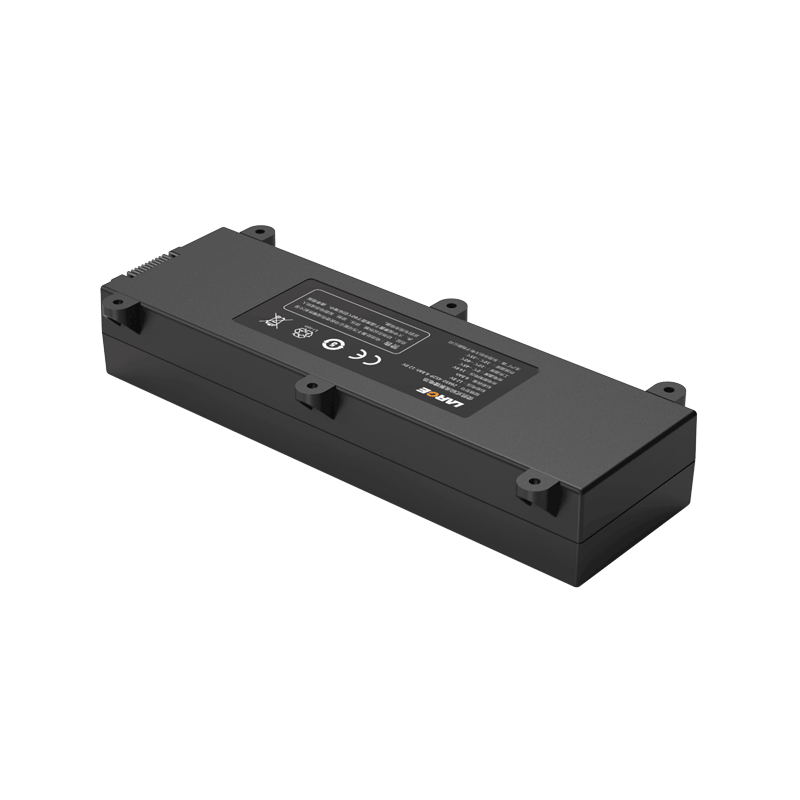

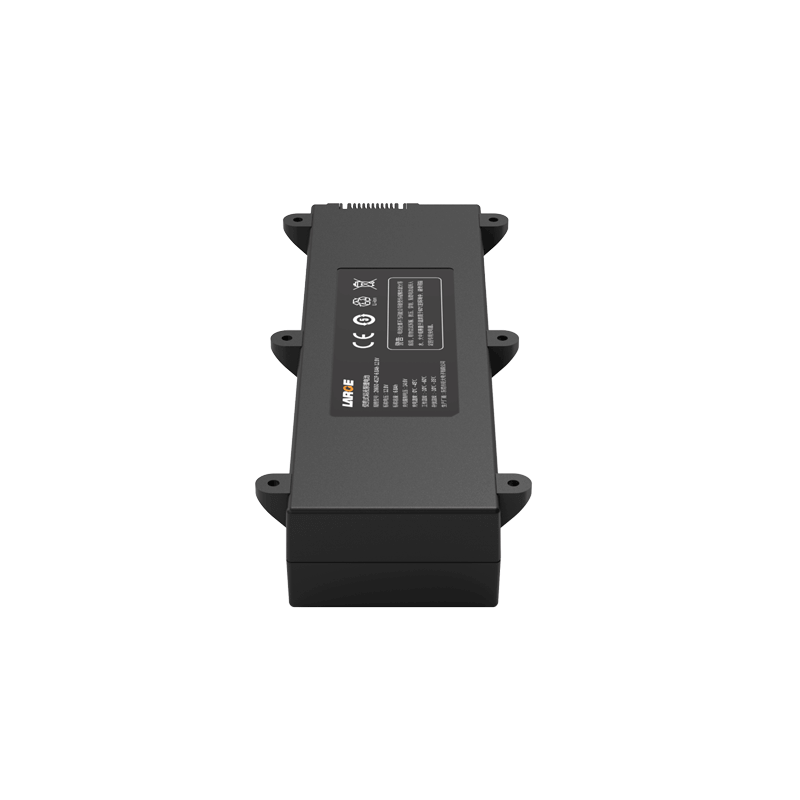

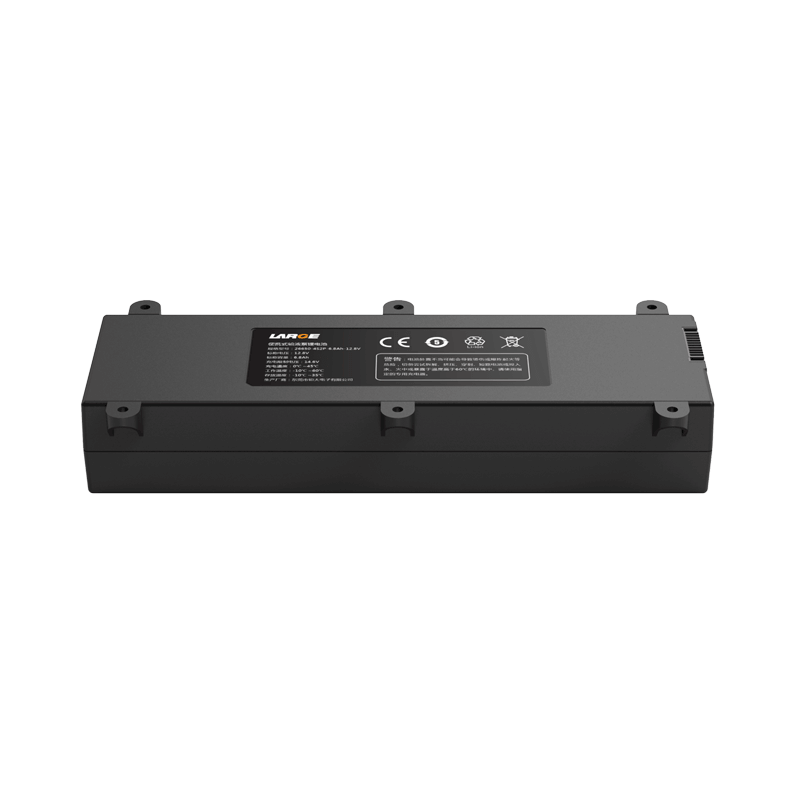

Custom Lithium ion Battery Pack
Product number: 08DQ0038-01
Cell model: 26650-3400MAH-3.2V
Specification: 26650-4S2P-6.8AH-12.8V
Product size: 245*75*45mm
Nominal voltage: 12.8V
Nominal capacity: 6.8Ah
Charging voltage: 14.6V
Charging current: ≤ 3.3a
Discharge current: ≤4.0A
Discharge cut-off voltage: 8.0V
Internal resistance: ≤250mΩ
Battery weight: 950 GB
Charging temperature: 0 ~ 45℃
Discharge temperature: -10 ~ 60 ℃
Storage temperature: -10 to 35 ° C
Battery case: ABS+PC case
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection, etc.
Application: Medical equipment workstation power supply, portable equipment, standby power supply equipment
Product Features
1.ABS+PC shell increases battery reliability and firmness.
2.Hardware output: Adopt gold-plated shrapnel output to increase conductive reliability;
3.Battery protection management: Use ST/MCU software to manage chips, transmit precise data and control temperature to minimize security risks.
4.Data communication management adopts 485 communication for precise data transmission, accurate temperature control, and real-time battery status monitoring to minimize security risks.
5.The battery pack has good safety, nice discharge performance and long cycle life.
6.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
