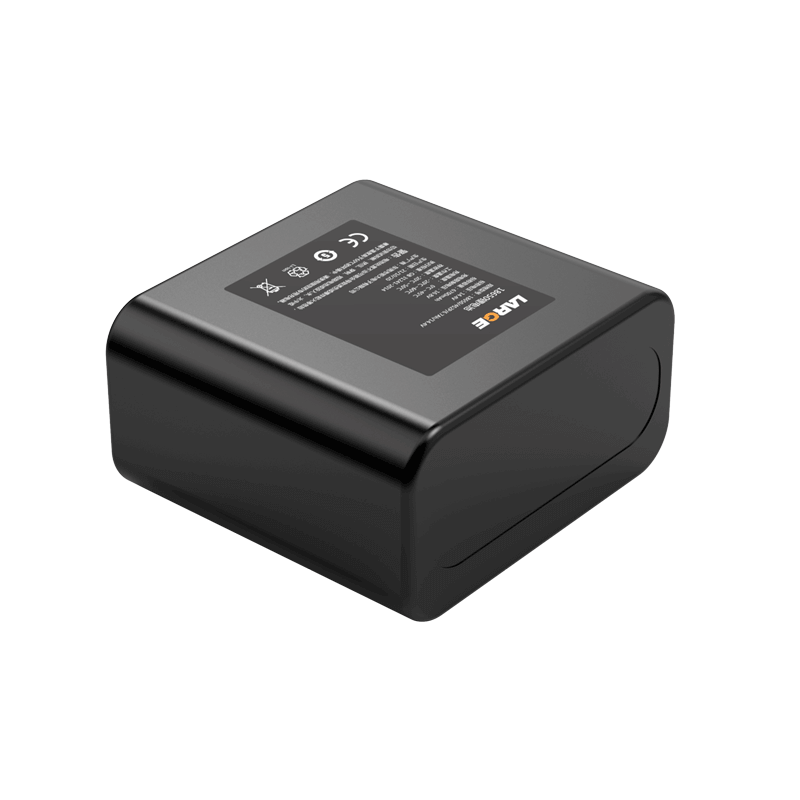

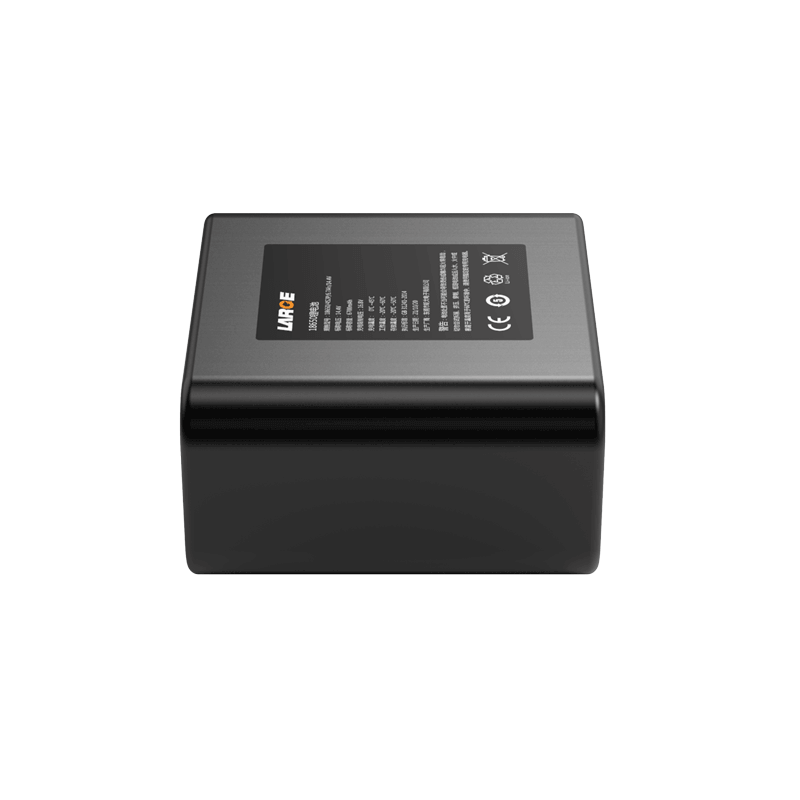

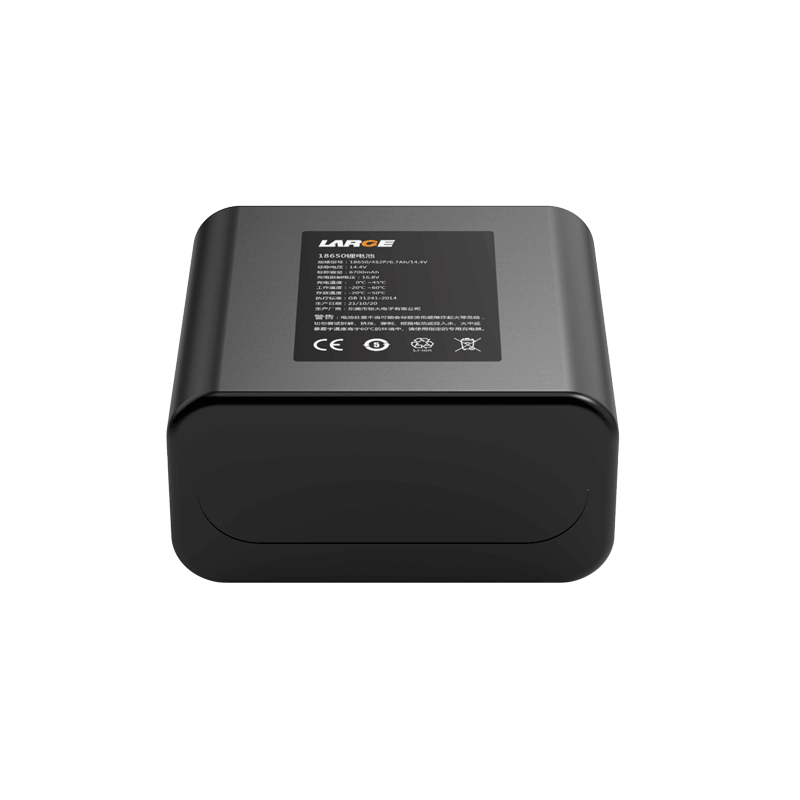

Custom Lithium ion Battery Pack
Product number: 05DQ0056-01
Cell model: 18650/3350mah /3.6V
Specification: 18650/4S2P/6.7Ah/14.4V
Product size: 75mm*70mm*37.5mm (Max)
Nominal voltage: 14.4V
Nominal capacity: 6.7Ah
Charging voltage: 16.8V
Charging current: ≤3.35A
Discharge current: ≤3.35A
Discharge cut-off voltage: 10V
Product internal resistance: ≤180mΩ
Battery weight: About 500G
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60 ℃
Storage temperature: -20~+50℃ (less than 1 month) -20~ 40 ℃(less than 3 months); -20~+20℃ (less than 12 months)
Battery packaging: PVC process
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: UV disinfection equipment
Product Features
1.PVC process
2.Output terminal: Adopt the GB UL wire output mode to increase conductive reliability.
3.Battery protection management: Adopt well-known protection chips with good stability, high precision monitoring and precise control, to minimize safety risks.
4.The battery pack has good safety, nice discharge performance and long cycle life.
5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
