Home>Battery Pack>Lithium Polymer Battery

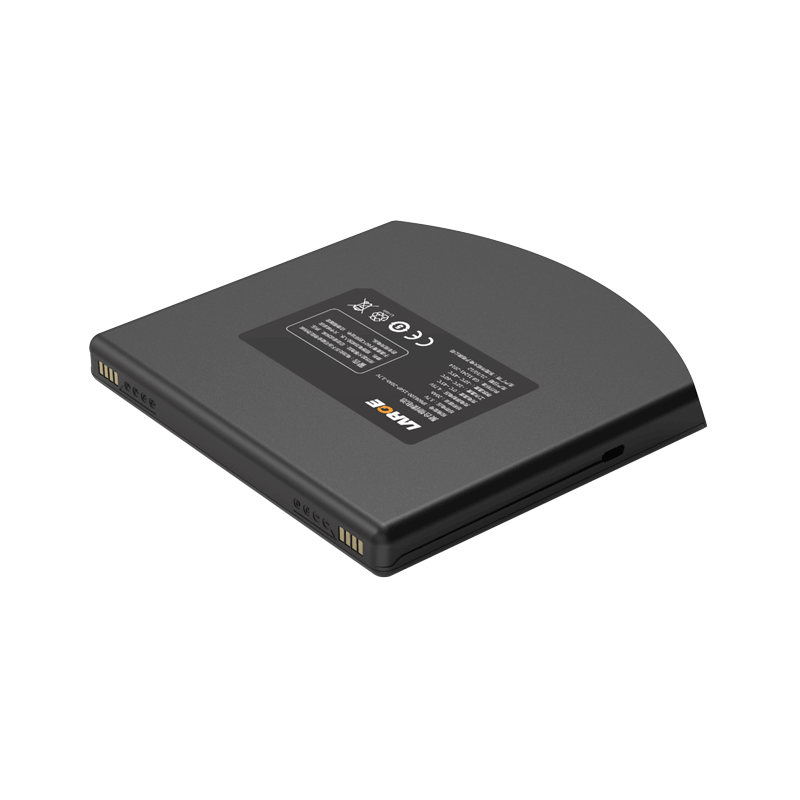

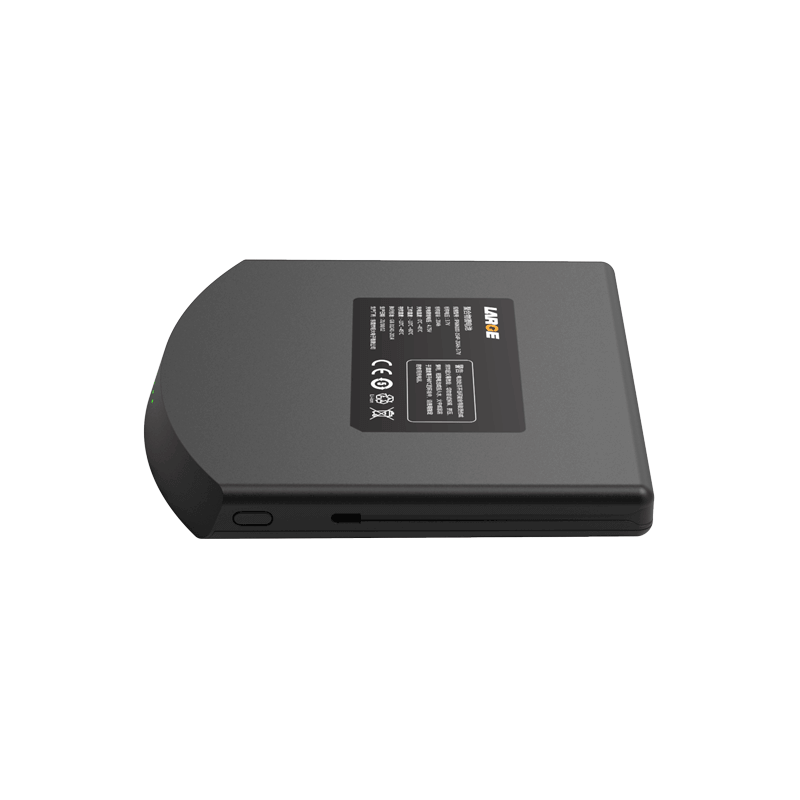

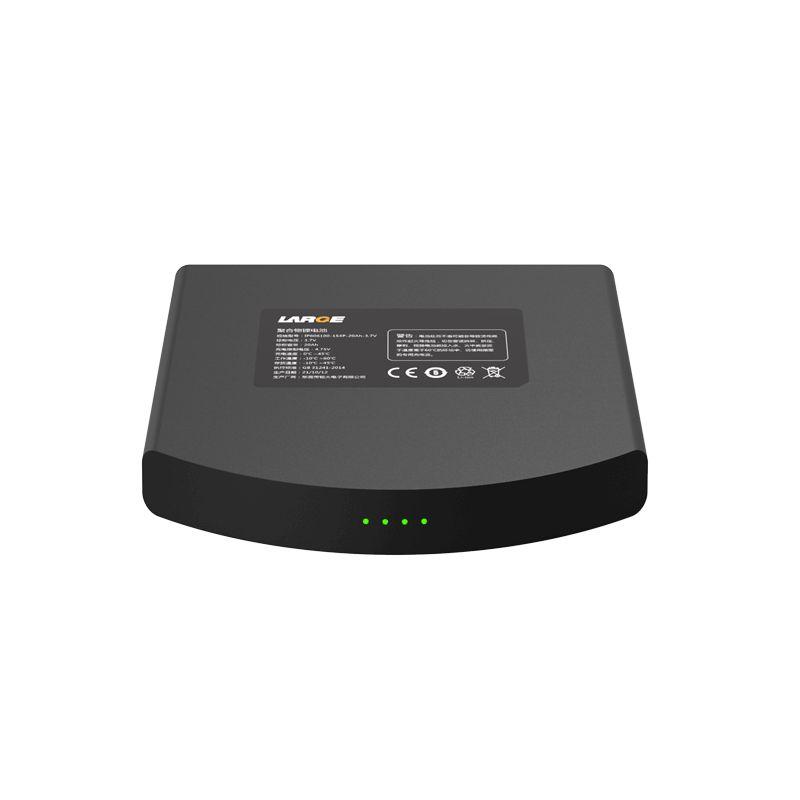

20Ah 3.7V Lithium Polymer Battery for Medical Device

Customization | Free Battery Solution

Product Detail

Product number: 34AQ077-02

Specification: IP606100-5AH-3.7V

Product size: 133.97*137.07*15.54mm (Max)

Rated output voltage: 4.75V~5.25V

Nominal capacity: 20Ah

Charging voltage: 4.75V~5.25V

Charging current: ≤2A

Discharge current: ≤2A

Discharge cut-off voltage: 2.8V

Battery weight: 500G

Charging temperature: 0 ~ 45℃

Discharge temperature: -10 ~ 60 ℃

Storage temperature: -10~+45 ° C (less than 1 month) -10~ 35 ° C (less than 3 months);

Battery package: plastic case

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.

Application: Medical devices

Product Features

1.Plastic shell has ultrasonic process for both upper and lower covers, which is simple, reliable and easy for installation.

2.I2C communication protocol

3.Output terminal: The POGO metal block is connected to the host.

4.Battery protection management: Adopt imported well-known protection chips with good stability, high precision monitoring and accurate control, to eliminate safety risks to the maximum.

5.The battery pack has good safety, nice discharge performance and long cycle life.

6.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
