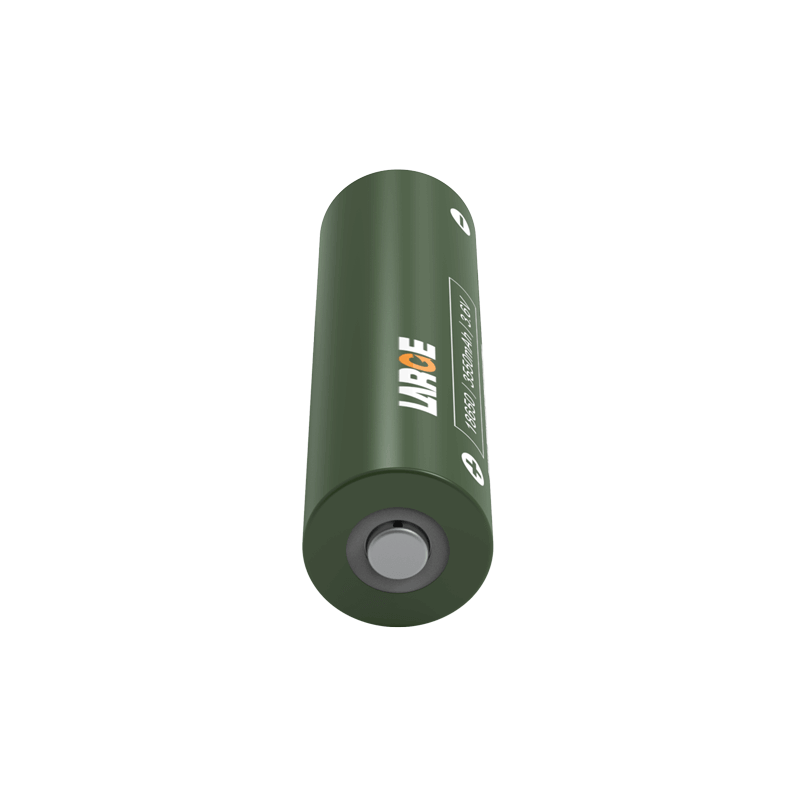

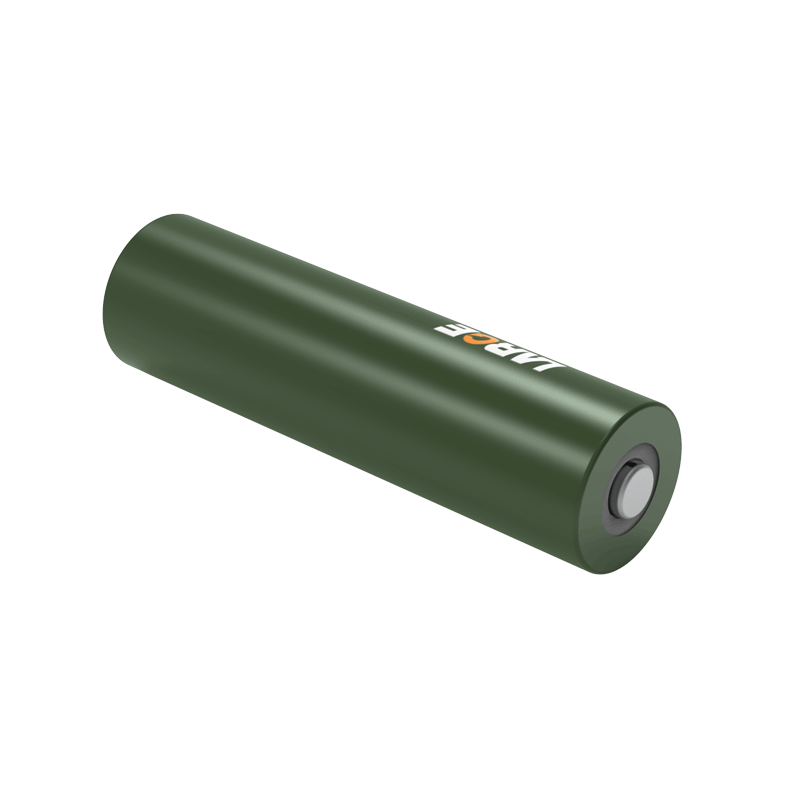

18650 3.7V 2200mAh Battery Lithium-ion Batteries for Industrial Instruments

Customization | Free Battery Solution

Product Detail

Product number: 40AQ015-01

Cell model: 18650/2200mah /3.67V

Specification: 18650/1S1P/2200mAh/3.7V

Nominal voltage: 3.7V

Nominal capacity: 2200mAh

Charging voltage: 4.2V

Charging current: 1A

Discharge current: 1A

Instantaneous discharge current: 2A

Discharge cut-off voltage: 2.5V

Internal resistance of finished product: ≤100mΩ

Battery weight: 70G

Product size: φ19.5*71mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ +55 ℃

Storage temperature: -20 to +45 ° C

Battery packing: PVC

Lithium battery protection: conventional protection

Product Features

1.Super safe design: Super safe cell is used to meet the needling requirements;

2.-40℃ discharge, good performance, compact structure design
