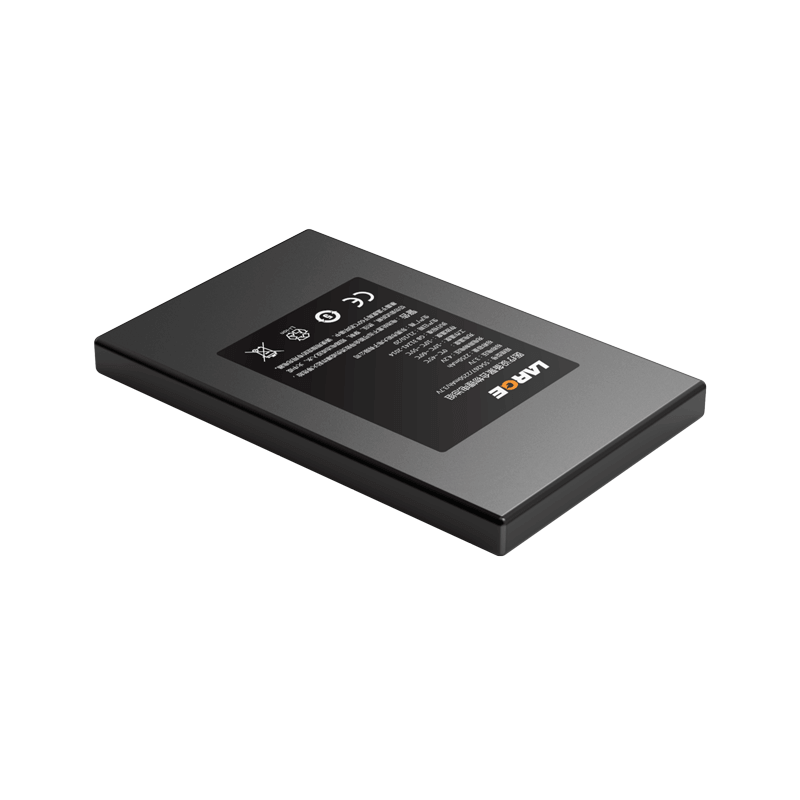

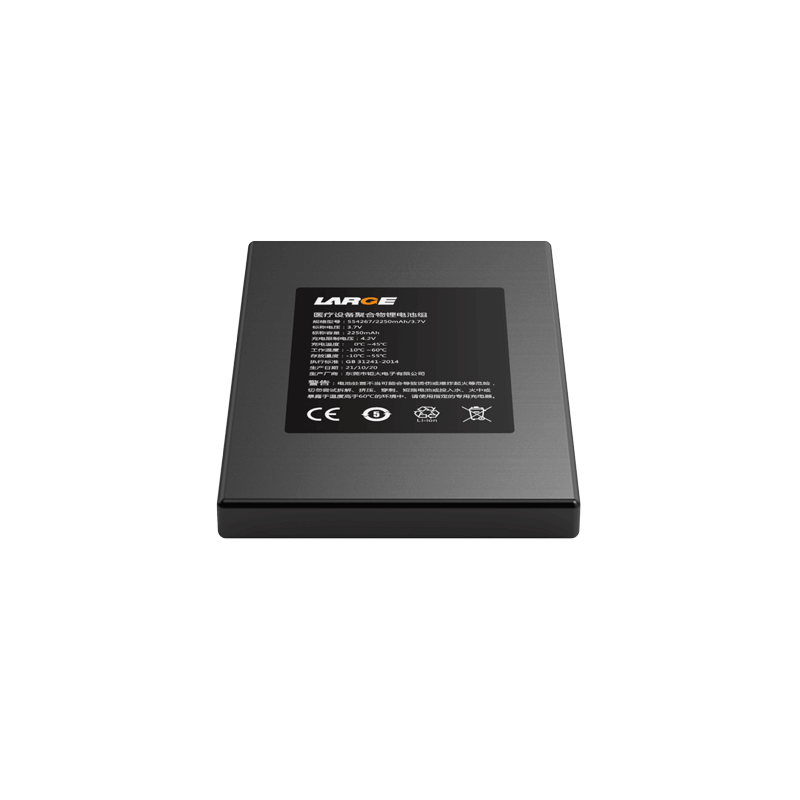

Custom Lithium ion Battery Pack
Product number: 40AQ019-01
Cell model: 554267/2250mah /3.7V
Specification: 554267-2250MAh-3.7V
Nominal voltage: 3.7V
Nominal capacity: 2250mAh
Charging voltage: 4.2V
Charging current: 450mA
Discharge current: 450mA
Discharge cut-off voltage: 3V
Product internal resistance: ≤200mΩ
Battery weight: 50G
Product size: 68.5*42.5*5.5mm (Max)
Charging temperature: 0 ~ 45℃
Discharge temperature: -10 ~ 60 ℃
Storage temperature: -10 to 45 ° C
Battery packing: labeled
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Medical devices
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
