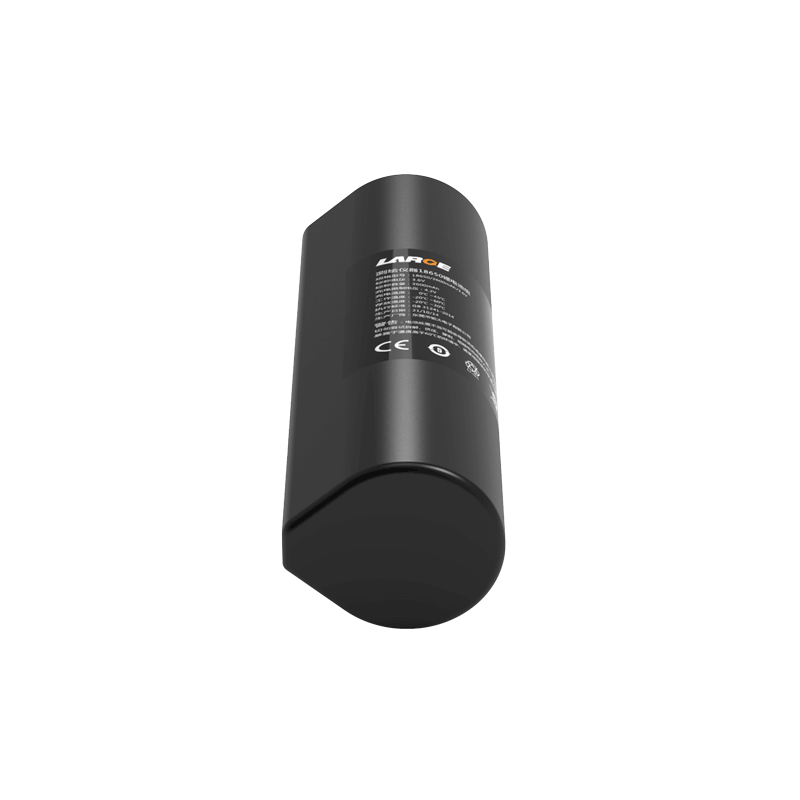

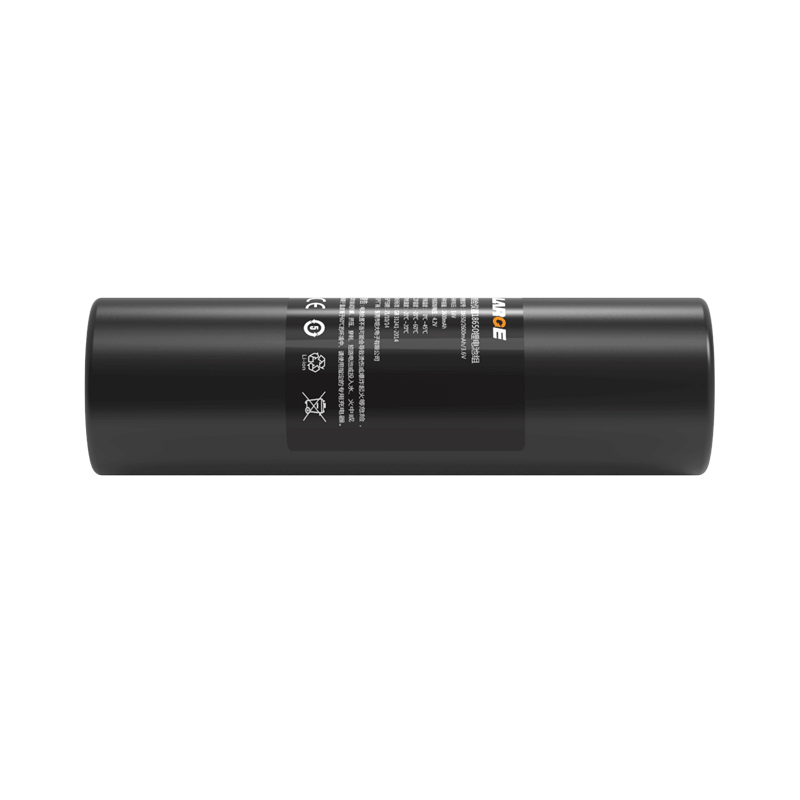

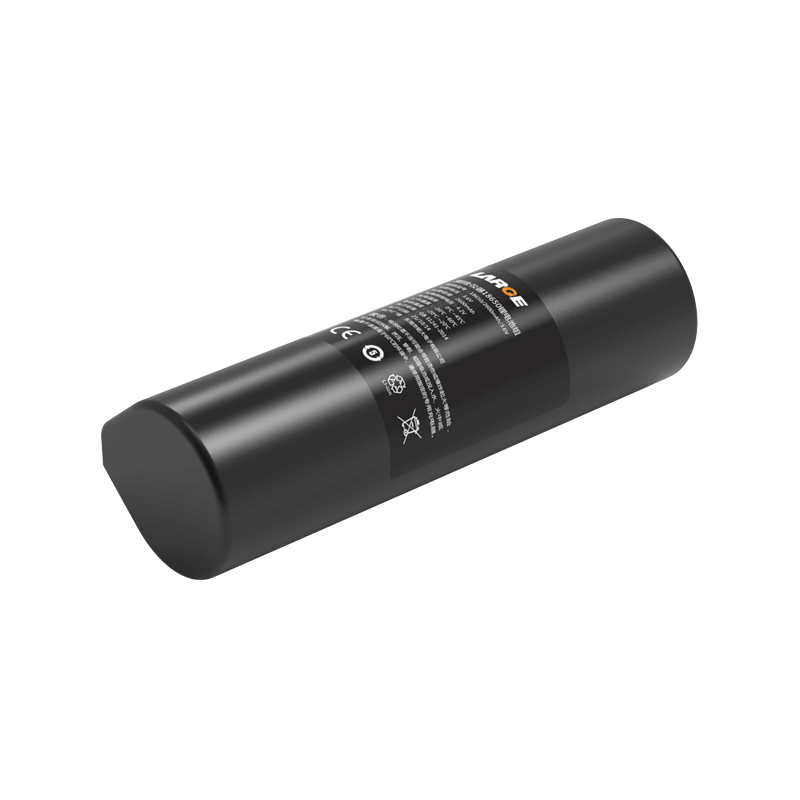

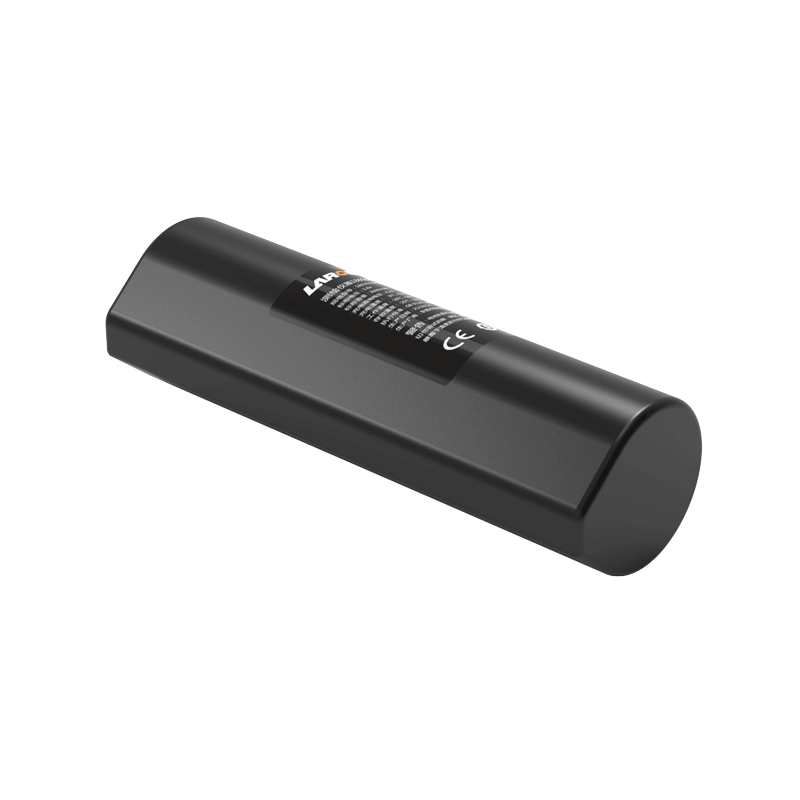

Custom Lithium ion Battery Pack
Project number: 05BQ673-41
Cell model: 18650/2600mah /3.6V
Specification: 18650/1S1P/2600mAh/3.6V
Nominal voltage: 3.6V
Nominal capacity: 2600mAh
Charging current: ≤ 1.3A
Discharge current: 2.6A
Instantaneous discharge current: 5A
Discharge cut-off voltage: 2.8V
Finished product internal resistance: ≤150mΩ
Battery weight: 50G
Product size: 22.0*68.0mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ° C to 20 ° C
Battery case: /
Intelligent lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: surveying and mapping instruments
