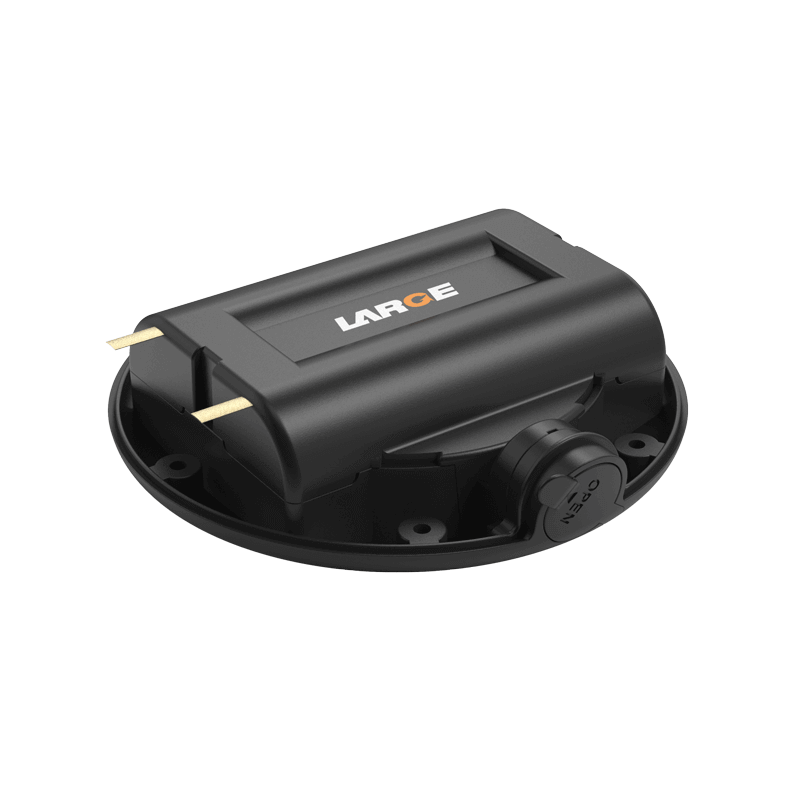

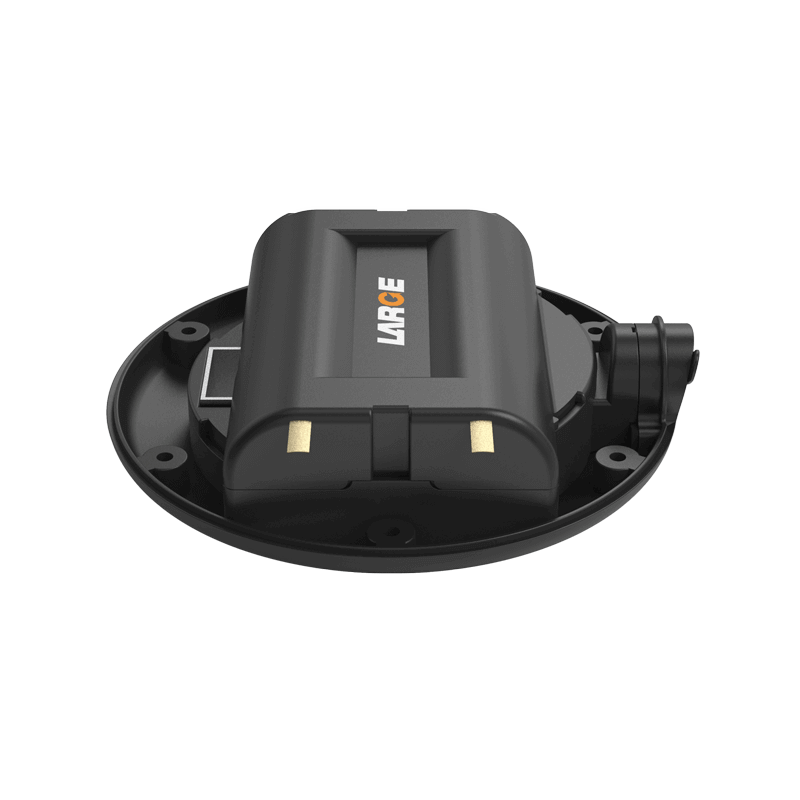

Project number: 01DQ0040-24T
Cell model: 18650/3350mah /3.6V
Specification: 18650/1S2P/6000mAh/3.6V
Nominal voltage: 3.6V
Nominal capacity: 6000mAh
Charging current: ≤ 2.6A
Discharge current: 2.6A
Instantaneous discharge current: 2.6A
Discharge cut-off voltage: 3.0V
Internal resistance: ≤250mΩ
Battery weight: 130G
Product size: 25.54*89.36mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 to 25 ° C
Battery case: ABS+PC
Intelligent lithium battery protection: power calculation, short circuit protection, over charge protection, over discharge protection, over current protection, USB charging and so on
Application: Security monitoring
