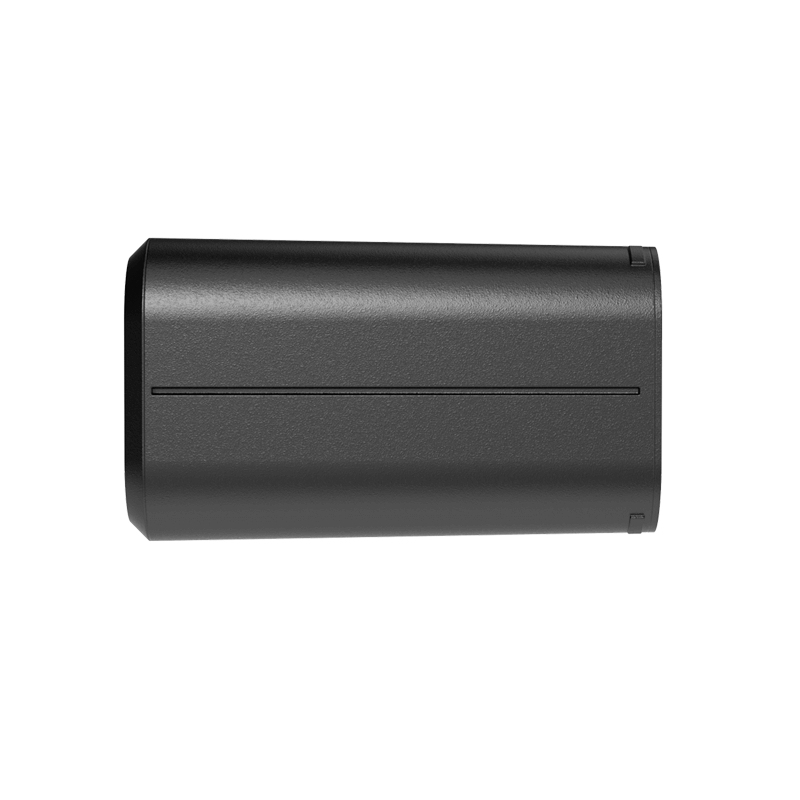

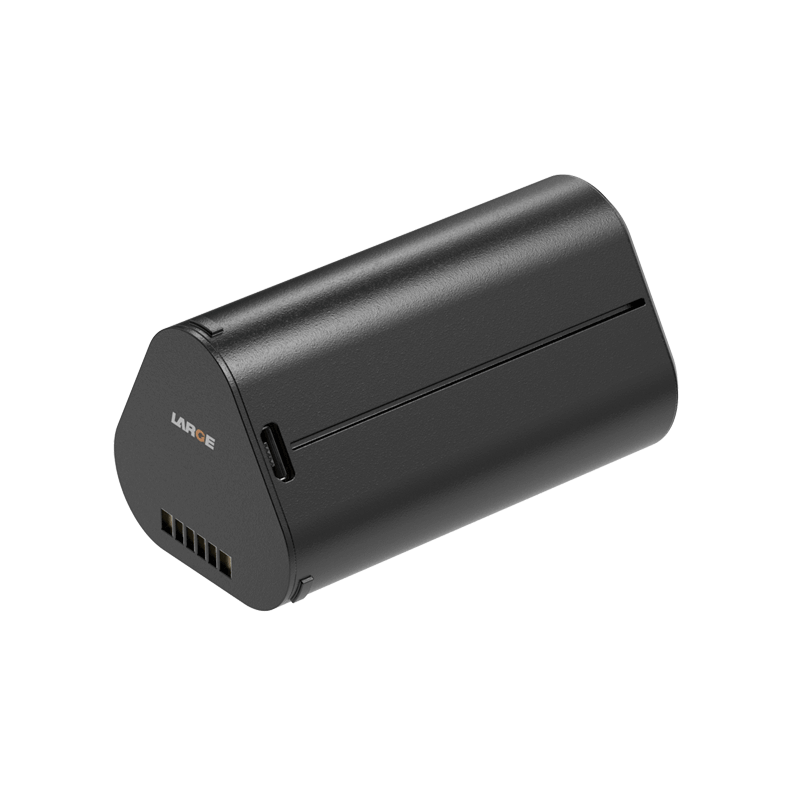

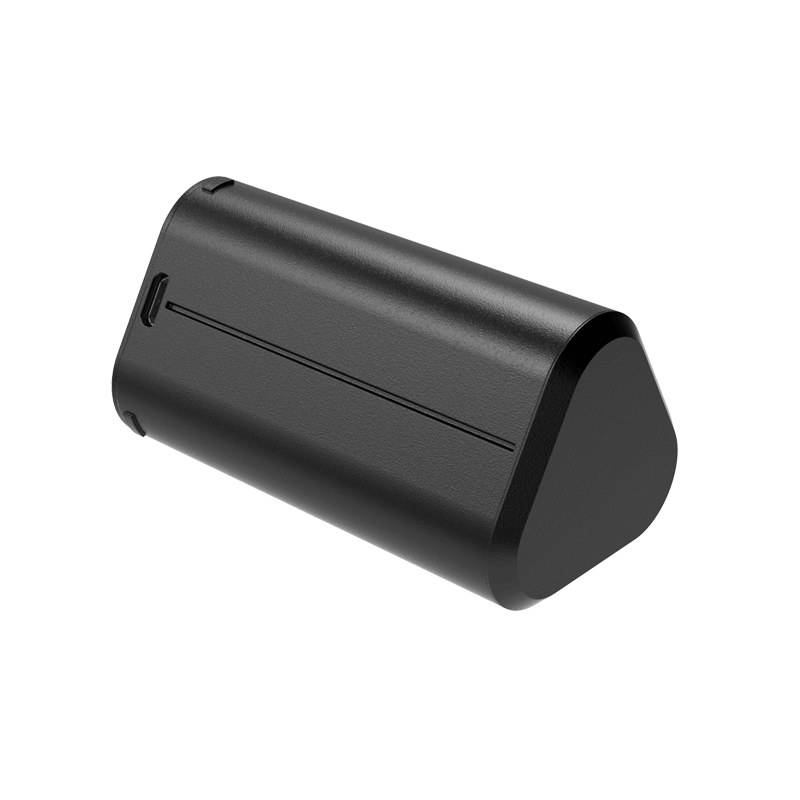

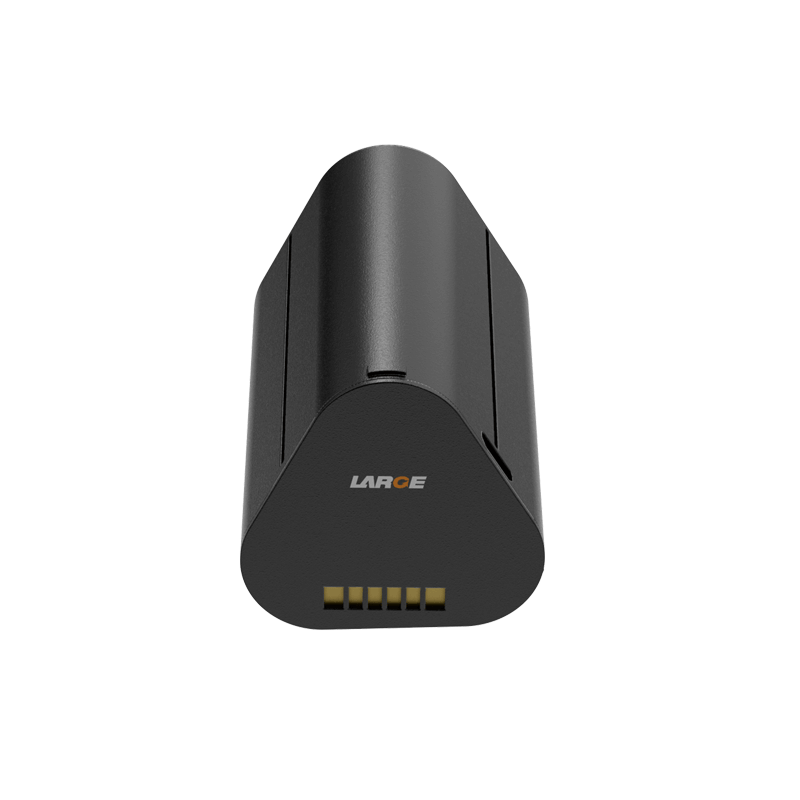

Custom Lithium ion Battery Pack
Project number: 01DQ0040-23T
Cell model: 18650/2600mah /3.6V
Specification: 18650/1S3P/7800mAh/3.6V
Nominal voltage: 3.6V
Nominal capacity: 7800mAh
Charging current: ≤2.0A
Discharge current: 3.5A
Instantaneous discharge current: 3.5A
Discharge cut-off voltage: 2.9V
Finished product internal resistance: ≤160mΩ
Battery weight: 180G
Product size: 39.14*41.65*74.20mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 to 25 ° C
Battery case: Metal case
Intelligent lithium battery protection: power calculation, short circuit protection, over charge protection, over discharge protection, over current protection, USB charging and so on
Application: Security monitoring
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
