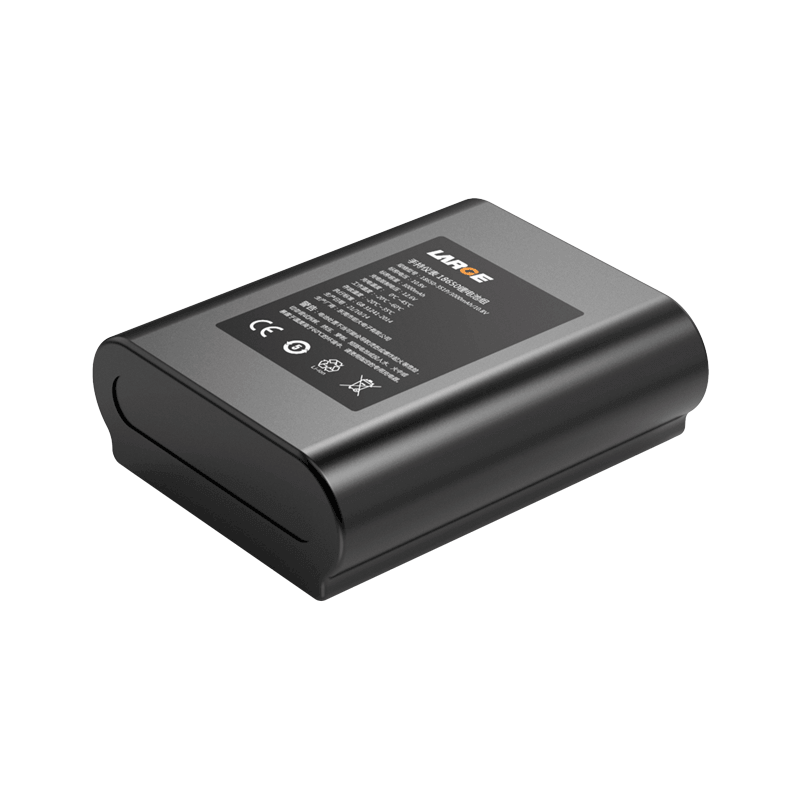

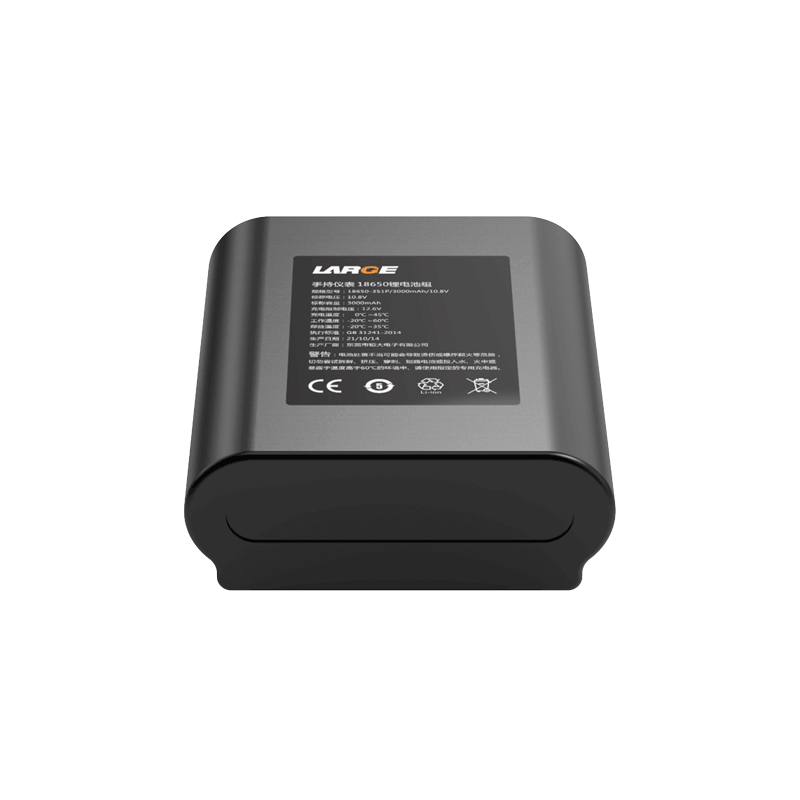

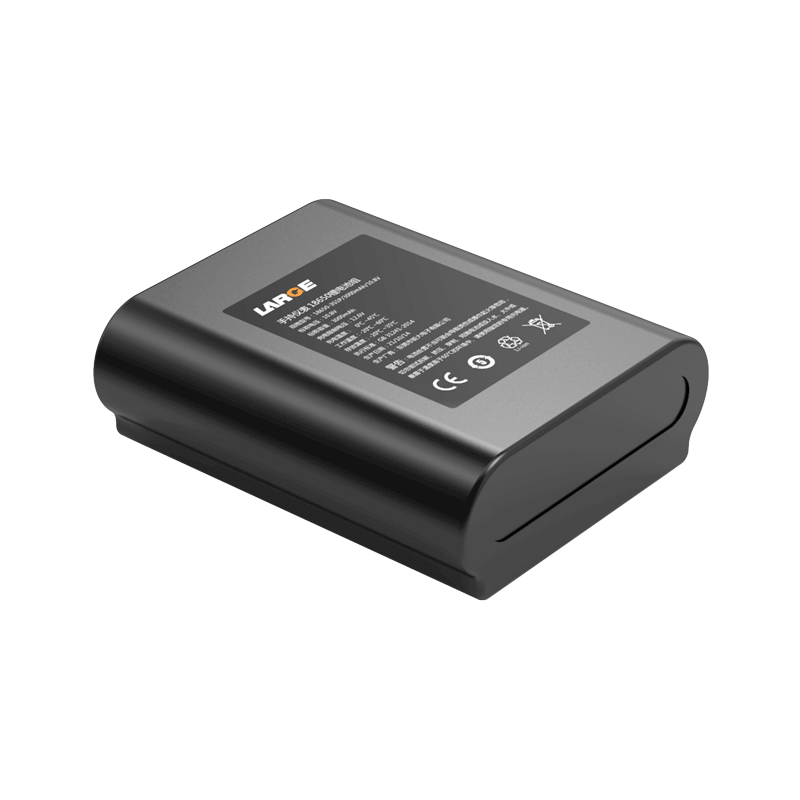

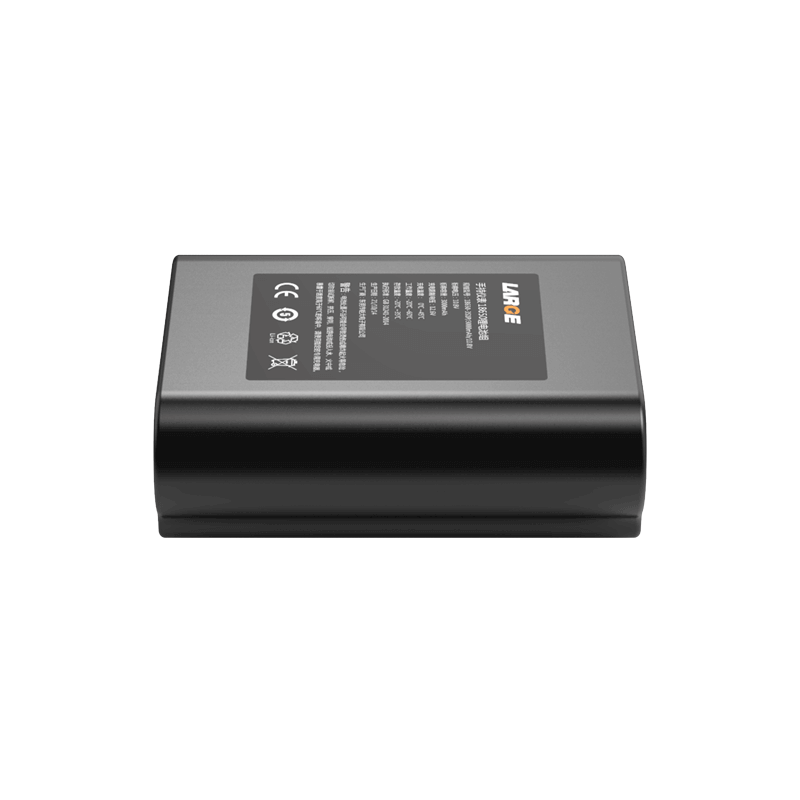

Custom Lithium ion Battery Pack
Project number: 08DQ0041-01
Cell model: NCR18650BF/3350mAh/3.6V
Specification: 18650-3S1P/3000mAh/10.8V
Nominal voltage: 10.8V
Nominal capacity: 3000mAh
Charging voltage: 12.6V
Charging current: ≤ 2.5A
Discharge current: 1.0A
Instantaneous discharge current: 2.5A
Discharge cut-off voltage: 8.10V
Product internal resistance: ≤180mΩ
Battery weight: 150G
Product size: 22.0*56*67.0mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 to 35 ° C
Battery case: /
Intelligent lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Handheld instruments
