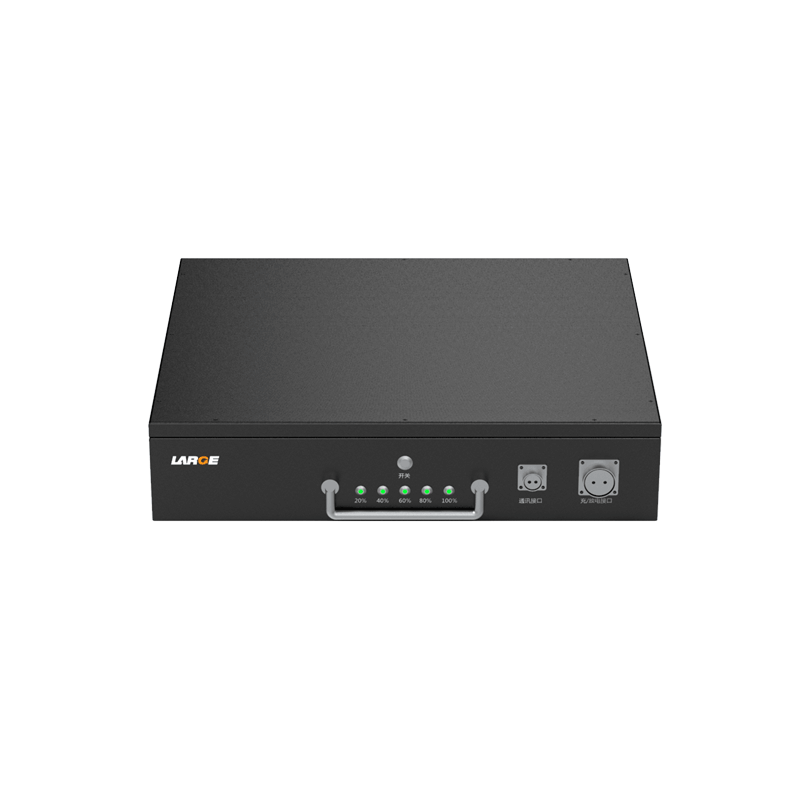

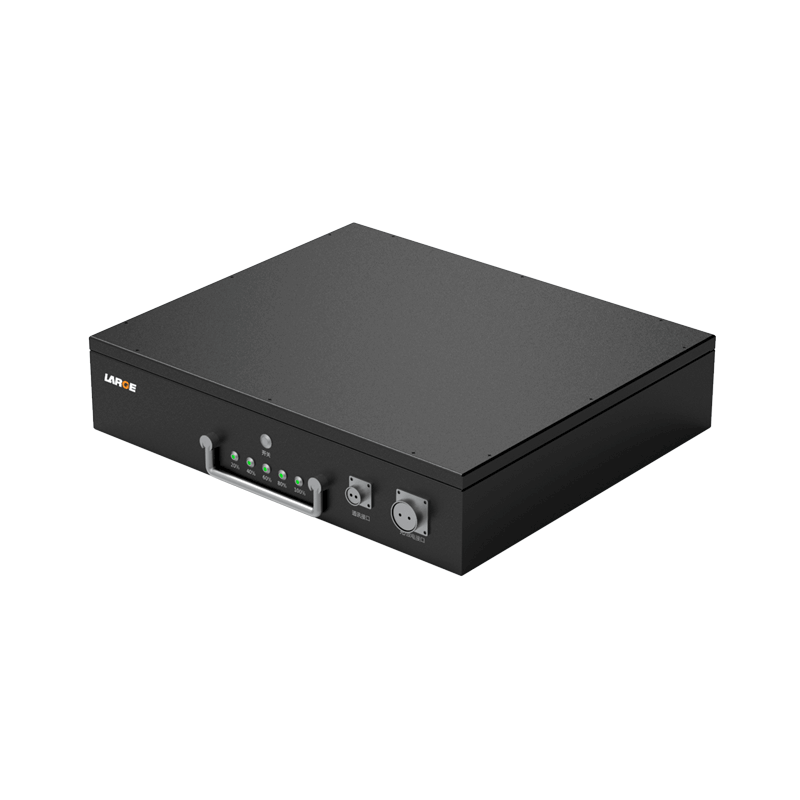

Custom Lithium ion Battery Pack
Product number: 01DQ0140-01
Cell model: 26650-15S11P-35.2 AH-48V
Specification: IRF26650/3300mah /3.2V
Product size: 460± 1.5mm *390±1 mm *100±1mm
Nominal voltage: 48V
Nominal capacity: 36.3Ah
Charging voltage: 54.75V
Charging current: Max. 10A
Discharge current: Max. 25A
Discharge cut-off voltage: 30V
Finished product internal resistance: ≤150mΩ
Battery weight: 22Kg
Charging temperature: -10~+55℃
Discharge temperature: -25~+55℃
Storage temperature: -20°C to 45°C (less than 1 month) -20°C to 35°C (less than 3 months); -20℃~ 25°C (less than 12 months)

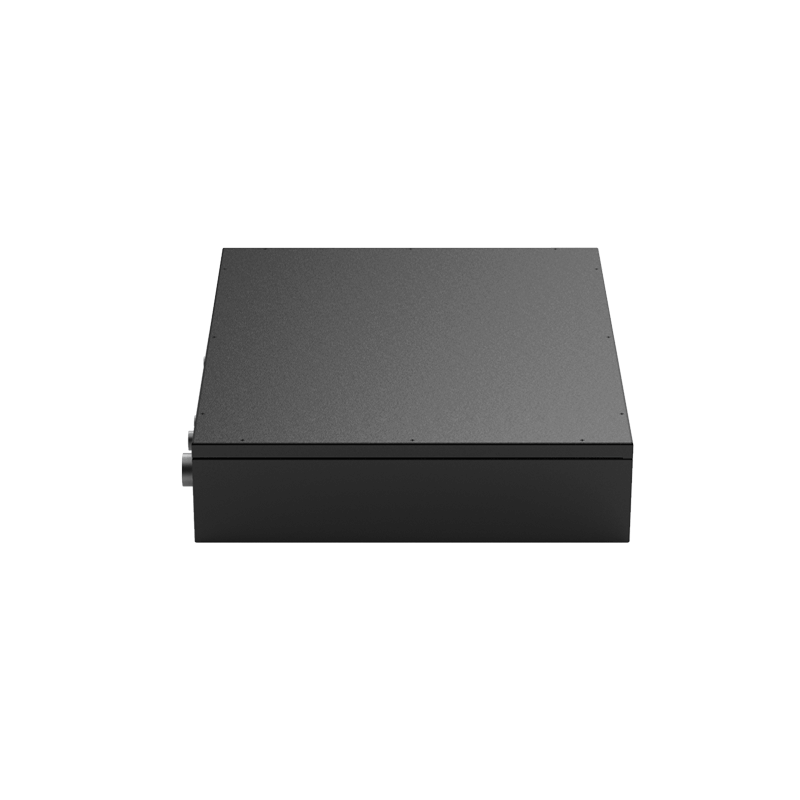

Battery package: black metal case
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.
Application: lift
Product Features
1.Black metal shell package is simple, reliable and is easy for installation.
2.MODBUS RTU communication with a baud rate of 19200
3.Output terminal: Adopt the output mode of GB UL wire to increase conductive reliability.
4.Battery protection management: Adopt imported well-known protection chips with good stability, high precision monitoring and accurate control, to eliminate safety risks to the maximum.
5.The battery pack has good safety, nice discharge performance and long cycle life.
6.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
