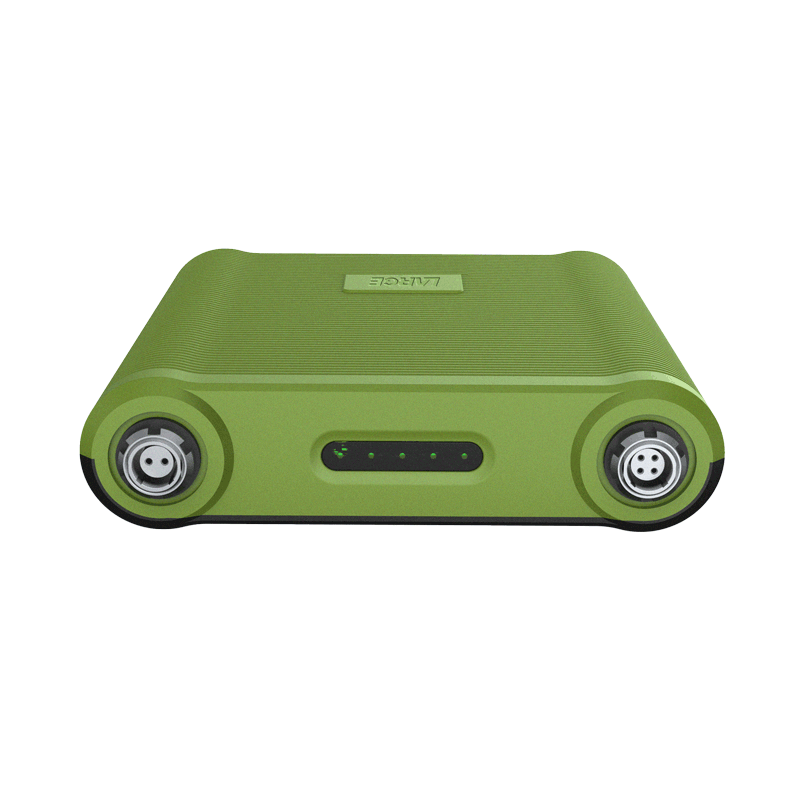

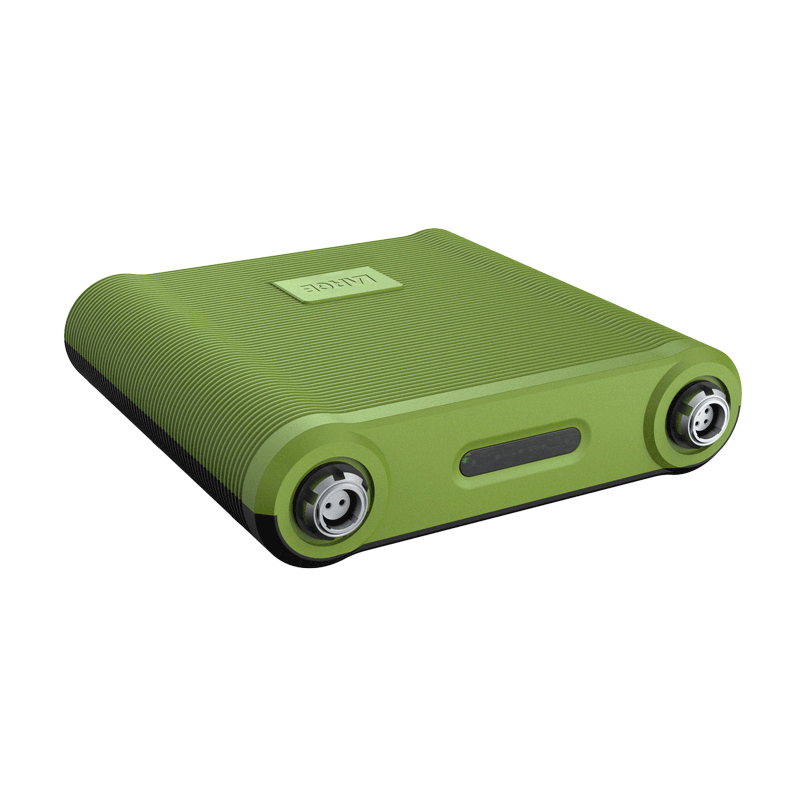

Custom Lithium ion Battery Pack
Product number: 35AQ227-03
Cell model: 18650/3.7V/2.2Ah
Battery specification: 18650/4S1P/14.8V/2.2Ah
Nominal voltage: 14.8V
Nominal capacity: 2.2Ah
Charging voltage: 16.8V
Charging current: ≤1A
Discharge current: 1A
Instant discharge current: 2A
Discharge cutoff voltage: 10V
Finished product internal resistance: ≤250mΩ
Battery weight: 500g
Product dimension: 104×104×24 (Max)
Charging temperature: 0 ~ 45℃
Discharge temperature: -40 ~ 60℃
Storage temperature: -20 ~ 20℃
Battery case: PC/CNC
Lithium-ion protection: short circuit protection, over charge protection, over discharge protection, over current protection.
Product features
1.Shockproof and waterproof: fill shockproof structure design with PC material shell to achieve the requirements of high safety and high reliability;
2.Low temperature operation: use special grade low temperature cell to ensure -40 degrees low temperature working.
3.Reliable connection: use special connectors, which is fast, safe and reliable;
4.The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
