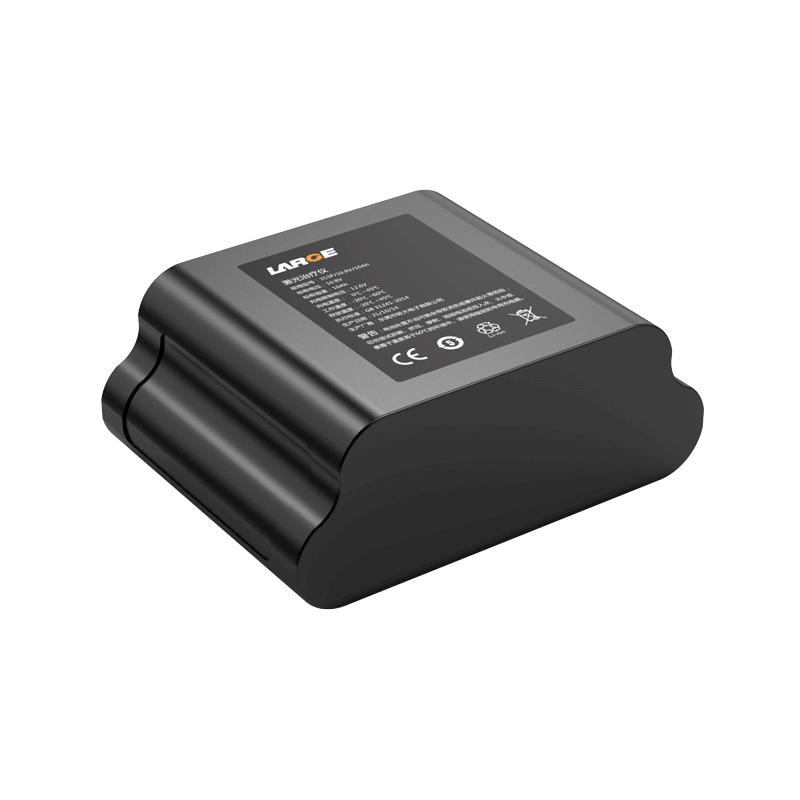

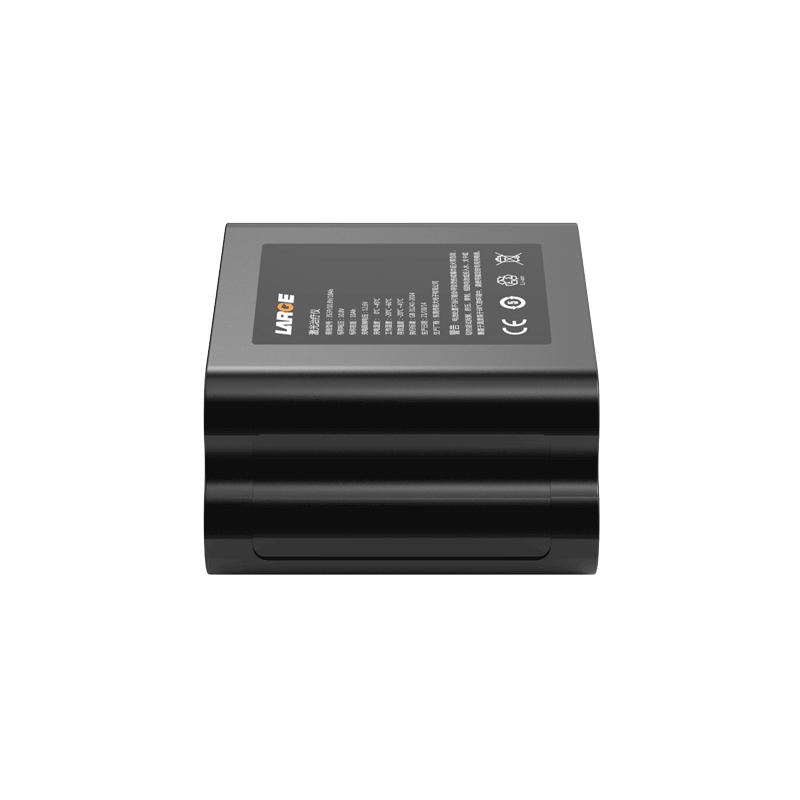

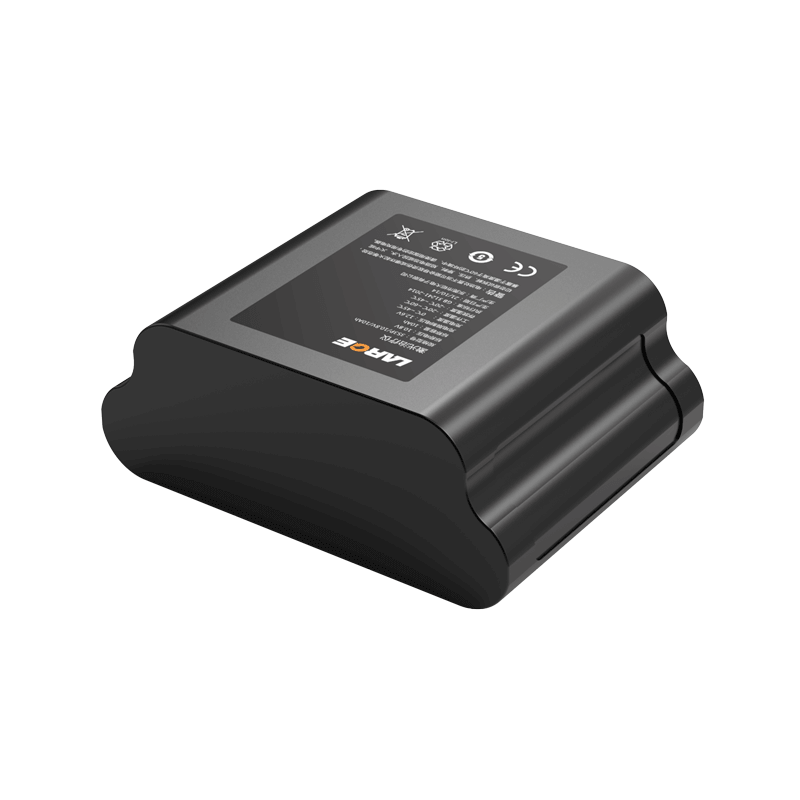

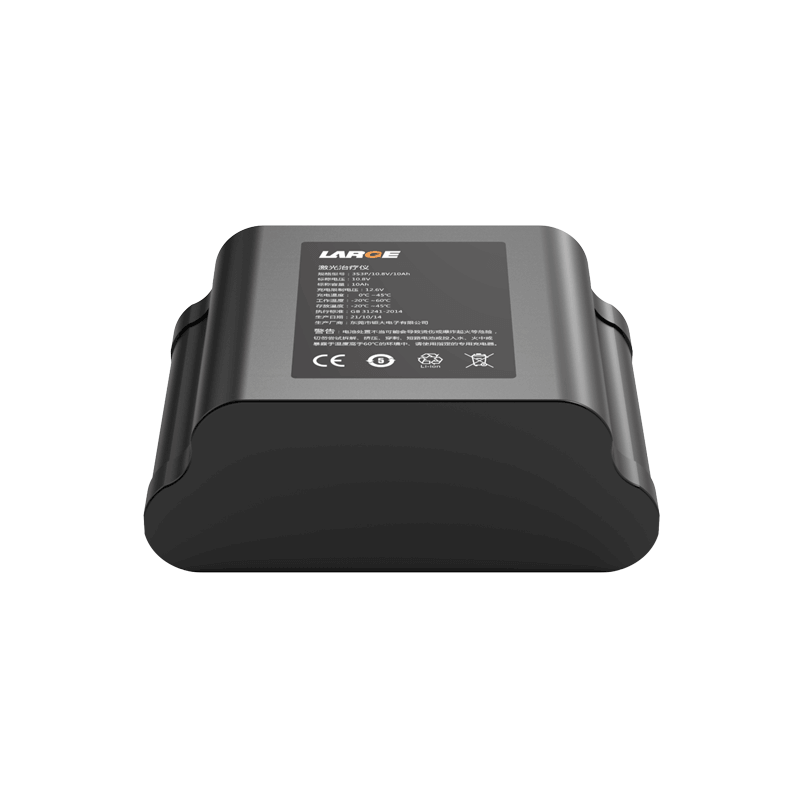

Custom Lithium ion Battery Pack
Item number: 33DZ036-01
Cell model: 18650 3.6V/ 3.35AH
Specification: 3S3P/10.8V/10Ah
Nominal voltage: 10.8V
Nominal capacity: 10Ah
Charging voltage: 12.6V
Charging current: ≤3A
Discharge current: 3-6A
Instantaneous discharge current: 10A
Discharge cut-off voltage: 8.1V
Finished product internal resistance: ≤150mΩ
Battery weight: 430 GB
Product size: 38.5*98*73 mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60 ℃
Storage temperature: -20 to 45 ° C
Battery case: PVC support
Communication: no
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, charging over current protection, discharge over current protection, etc.
Application: Medical device
Product Features
1.Energy consumption is low;
2.The battery pack is safe and has long cycle life.
3.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
