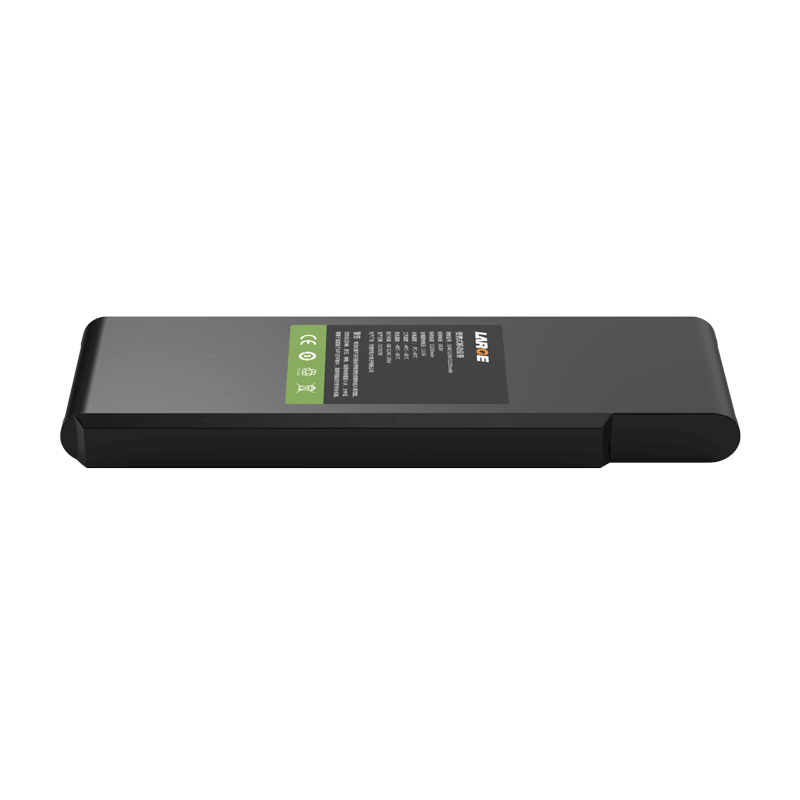

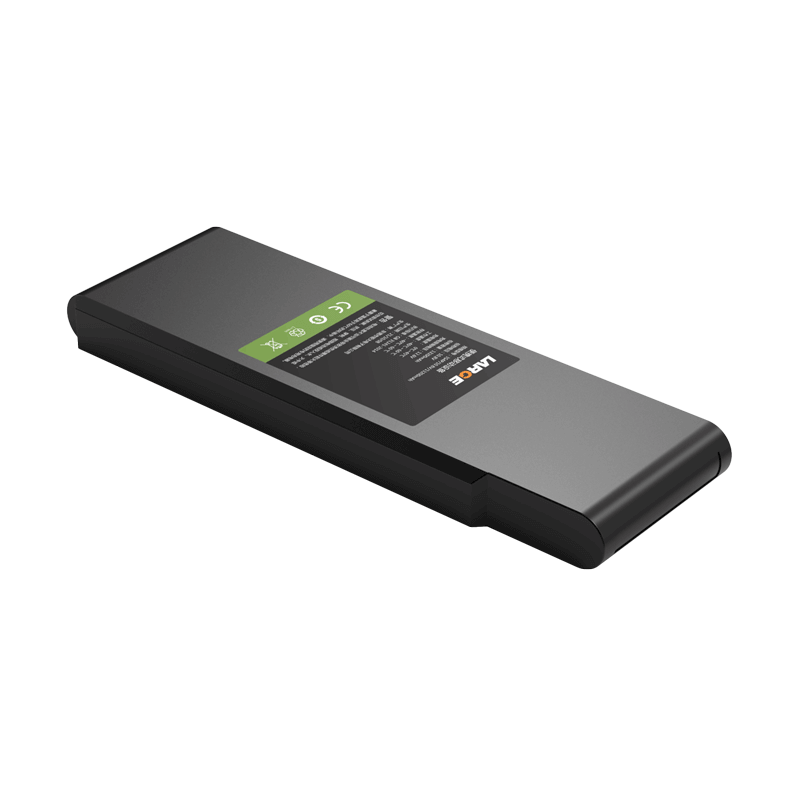

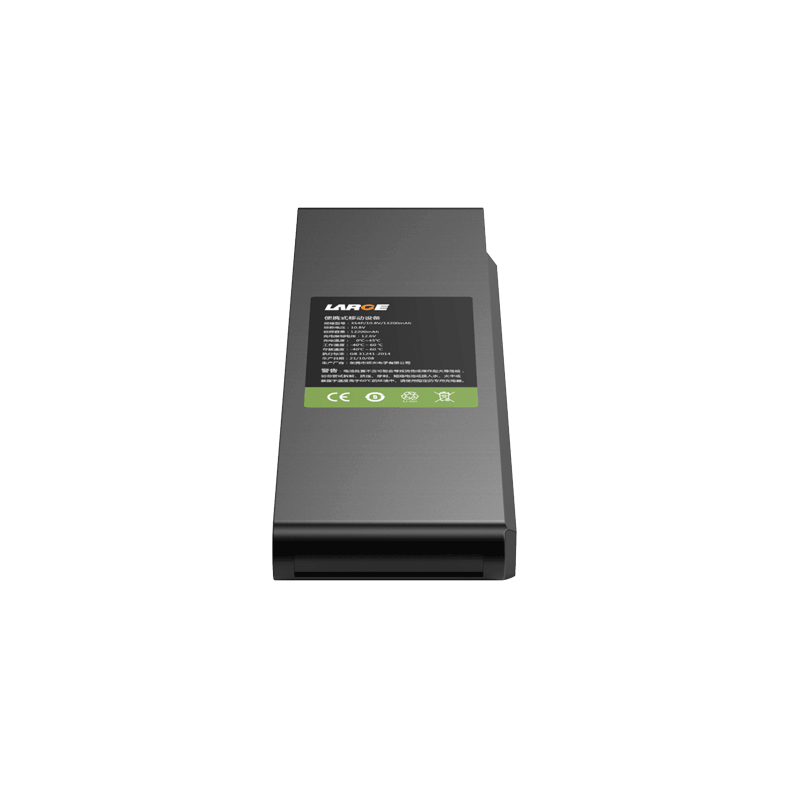

18650 10.8V 13200mAH Lithium-ion Battery for Portable Device

Customization | Free Battery Solution

Product Detail

Item number:33DZ015-02

Cell model: 18650 3.6V/3300mAh

Specification: 3S4P/10.8V/13200mAh

Nominal voltage: 10.8V

Nominal capacity: 13200mAh

Charging voltage: 12.6V

Charging current: ≤5A

Discharge current: 5A

Instantaneous discharge current: 7-9A

Discharge cut-off voltage: 8.1V

Finished product internal resistance: ≤150mΩ

Battery weight: 600G

Product size: 19*70*227.9mm

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 60 ℃

Storage temperature: -40 to 60 ° C

Battery package: PVC package

Communication: no

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, SMBUS communication, etc.

Application: Portable testing equipment


Product Features

1.Energy consumption is low;

2.Smart coulometer, SMBUS communication

3.The battery pack is safe and has long cycle life.

4.The battery cycle life is high, in line with low carbon, energy saving, environmental protection values;
