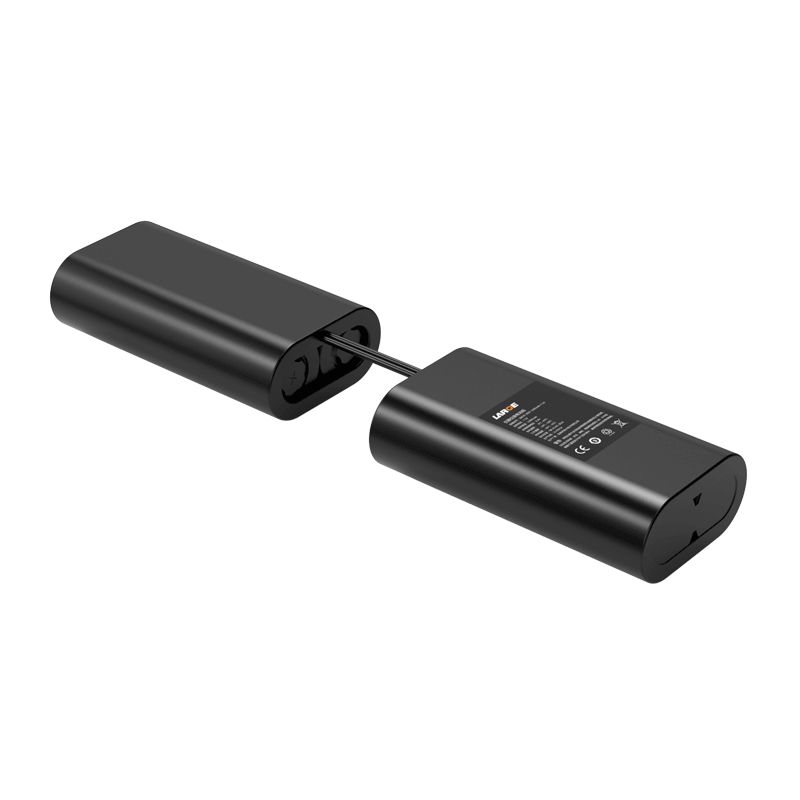

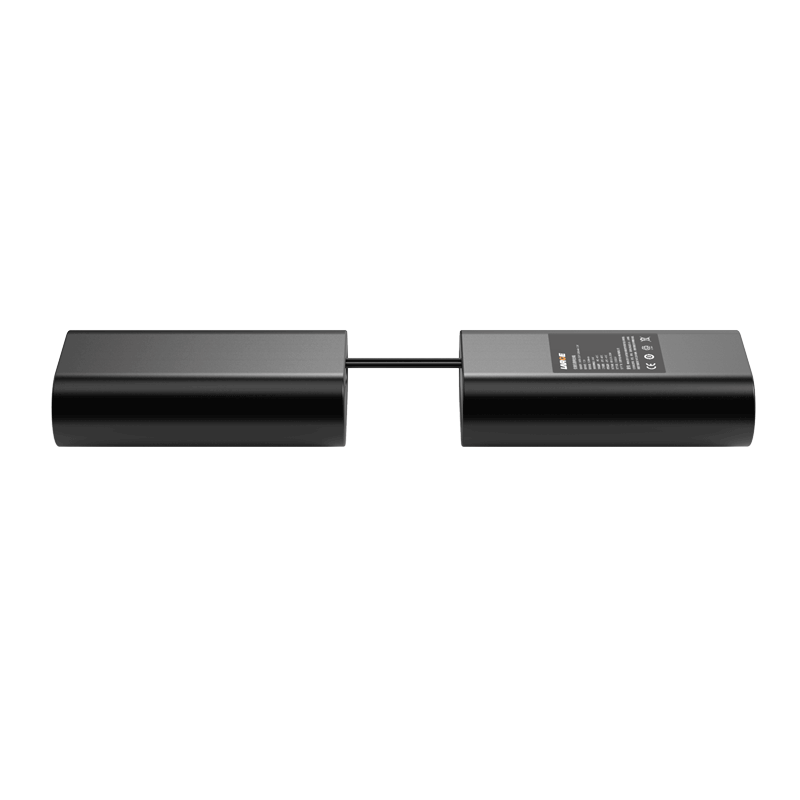

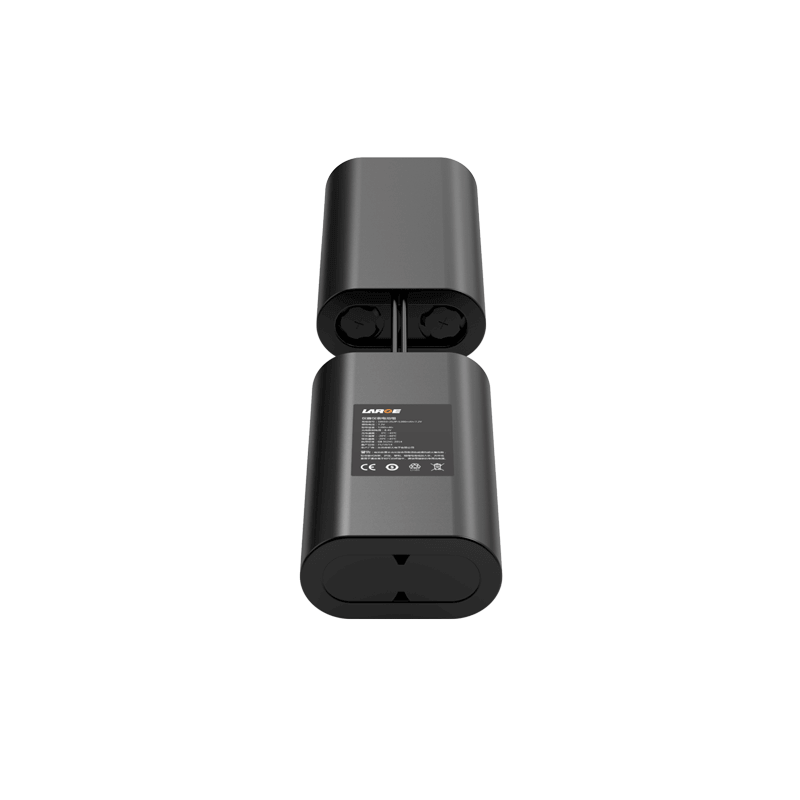

Custom Lithium ion Battery Pack
Product number: 33DZ033-01
Cell model: 18650/3.6V/2600mAh
Specification: 18650-2S2P-5200MAH-7.2V
Nominal voltage: 7.2V
Nominal capacity: 5200mAh
Charging voltage: 8.4V
Charging current: ≤2600mA
Discharge current: 4.4A
Instantaneous discharge current: 3-8A
Discharge cut-off voltage: 6V
Product internal resistance: ≤200mΩ
Battery weight: 100G
Product size: L*W*H 72*37.5*19.5mm+ 72*37.5*19.5mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60 ℃
Storage temperature: -20 to 45 ° C
Battery case: PVC
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Instrumentation
Product Features
1.Cell: Use a high energy cell that charges at -20C.
2.The battery pack has good safety, low temperature performance and long cycle life.
3.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
