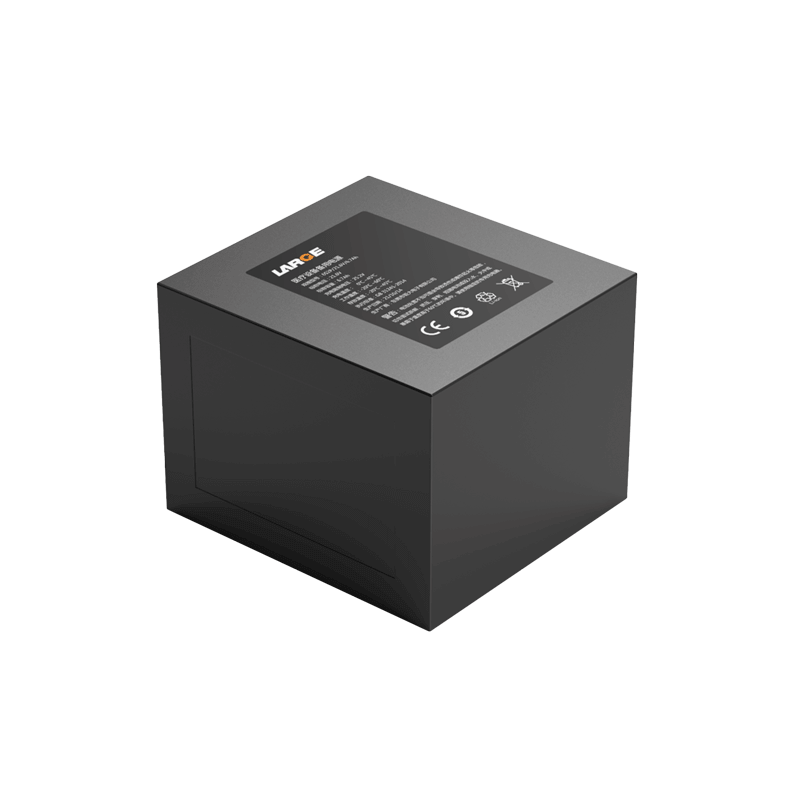

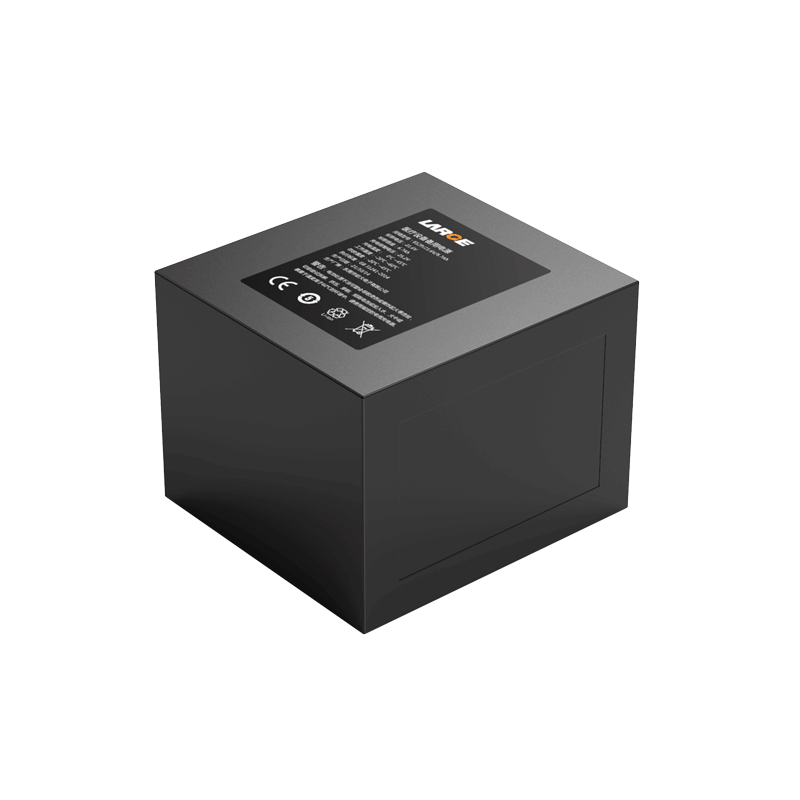

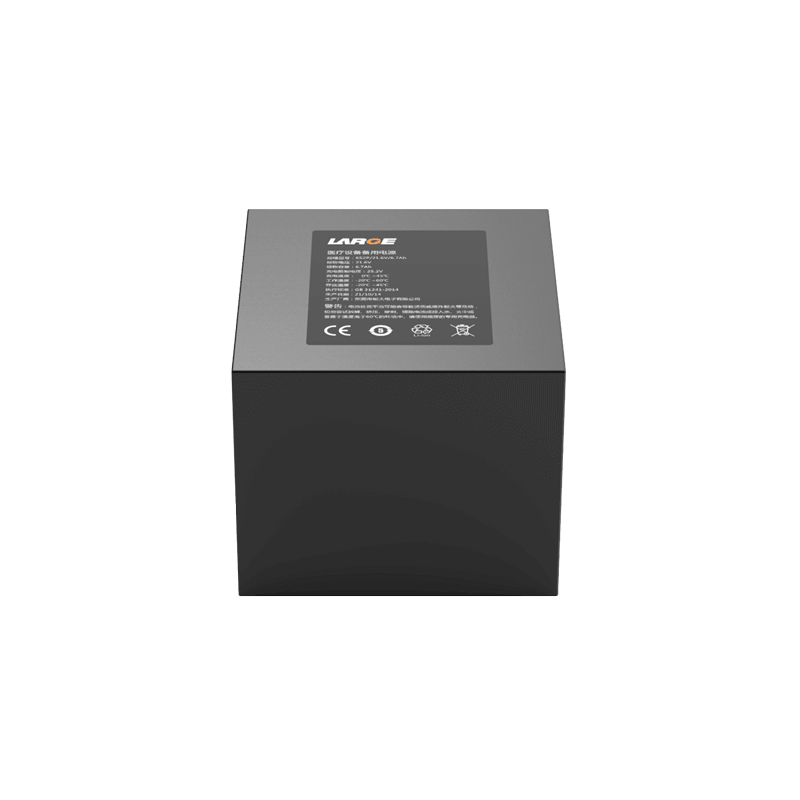

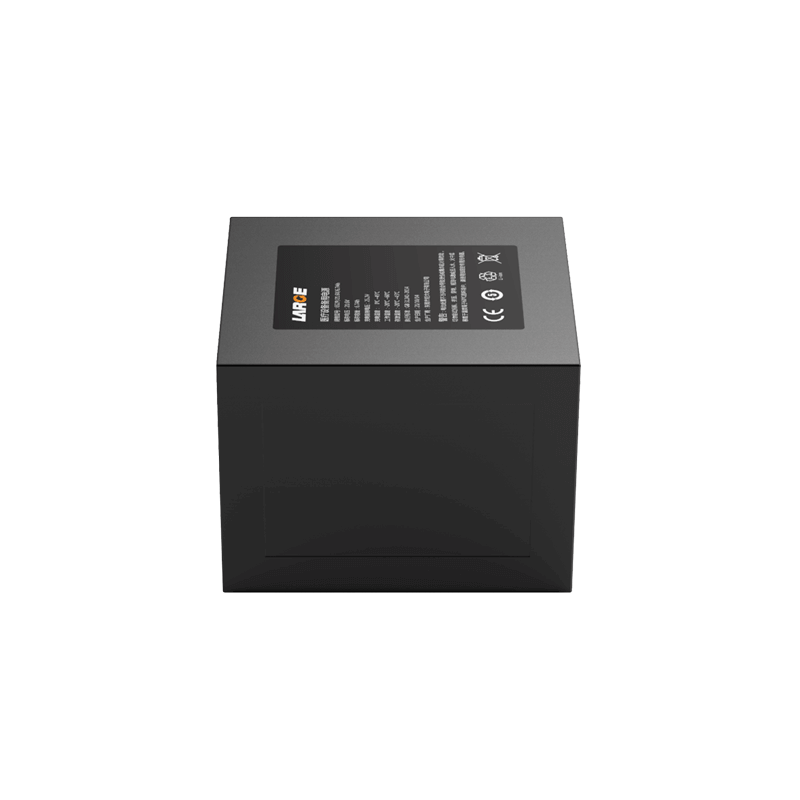

Custom Lithium ion Battery Pack
Product number: 37DZ071-03
Cell type: 18650/3.6V/ 3.35AH
Specification: 6S2P/21.6V/6.7Ah
Nominal voltage: 21.6V
Nominal capacity: 3.4Ah
Charging voltage: 25.2V
Charging current: ≤3.35A
Discharge current: ≤15A
Instantaneous discharge current: 20-40A
Discharge cut-off voltage: 18V
Product internal resistance: ≤200mΩ
Battery weight: 650G
Product size: 60*80*90 mm (Max)
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60 ℃
Storage temperature: -20 to 45 ° C
Temperature protection: 70℃±5℃
Battery case: PVC
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, temperature protection, anti reverse connection protection, etc.
Application: Medical devices
Product Features
1.Energy consumption is low;
2.Built-in temperature protection for the battery
3.The battery pack is safe and has long cycle life.
4.Discharge at high current rate
5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
