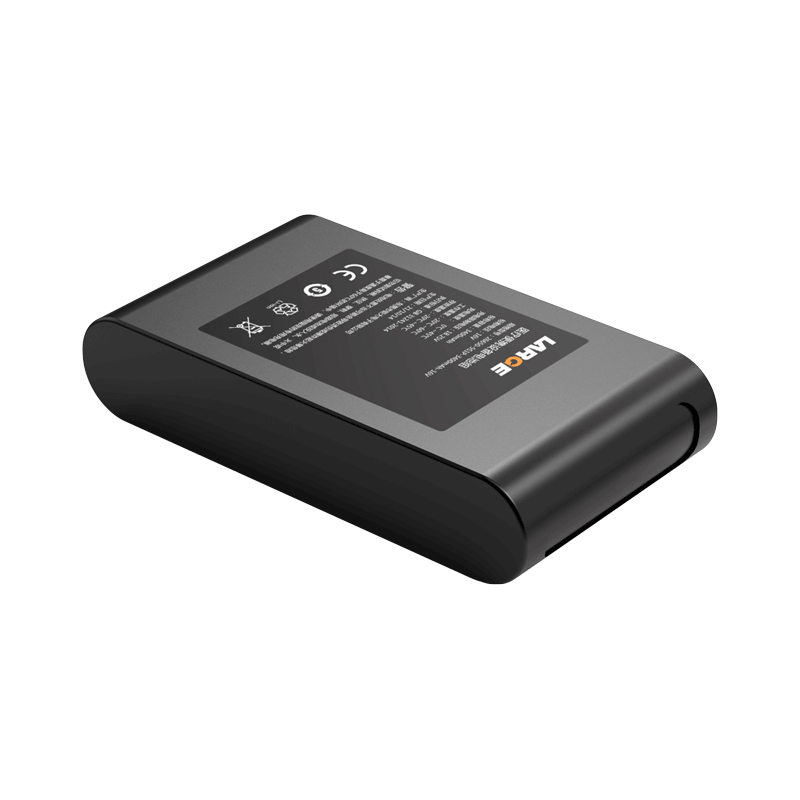

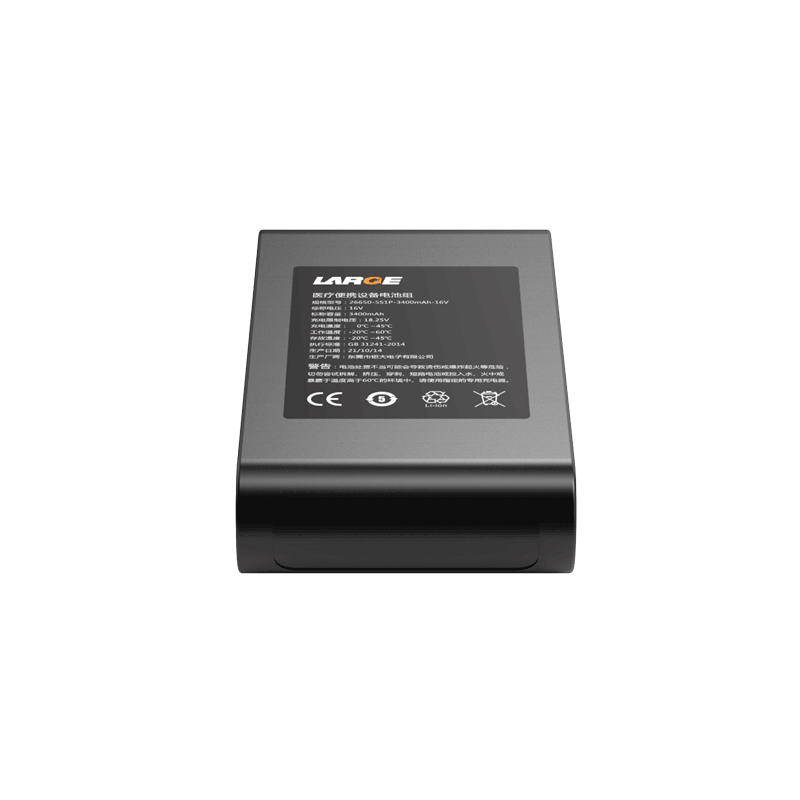

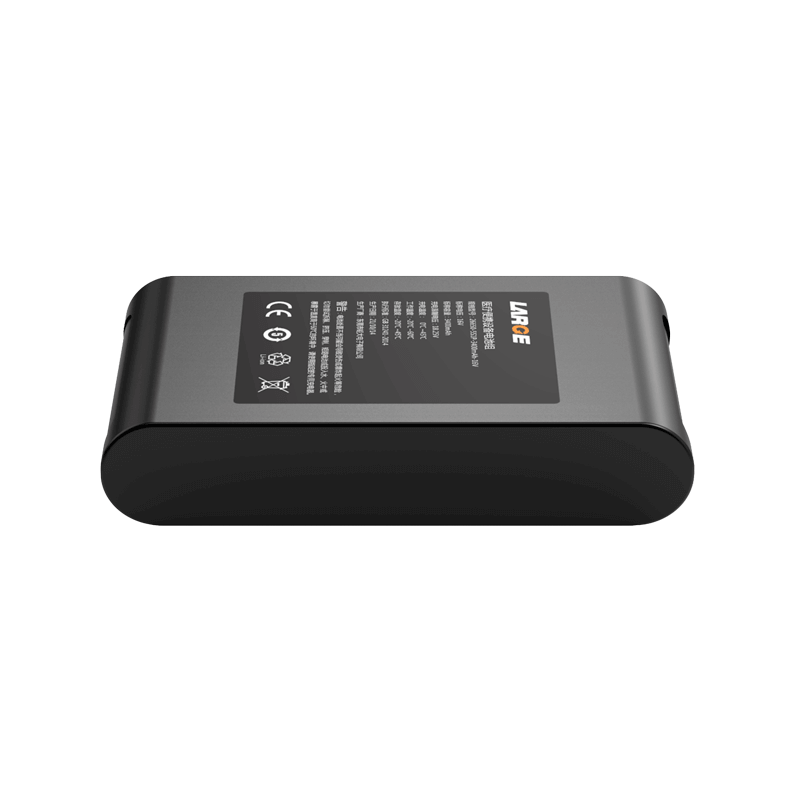

Product number: 33DZ009-03
Cell model: 26650/3.2V/3400mAh
Nominal voltage: 16V
Nominal capacity: 3400mAh
Charging voltage: 18.25V
Charging current: ≤2500mA
Discharge current: ≤2500mA
Instantaneous discharge current: 4-10A
Discharge cut-off voltage: 10V
Product internal resistance: ≤200mΩ
Battery weight: 400G
Product size: L*W*H 132.5*72*28mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60 ℃
Storage temperature: -20 to 45 ° C
Battery case: PVC
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature and so on
Application: Backup power supply
1.Conform to the CQC (GB31241-2014).
2.Cell: Super-safe lithium iron phosphate cell is used to charge at -20C.
3.The battery pack has good safety, low temperature performance and long cycle life.
4.Provide over-temperature protection.
5.The battery cycle life is high, in line with low carbon, energy saving, environmental protection values;
