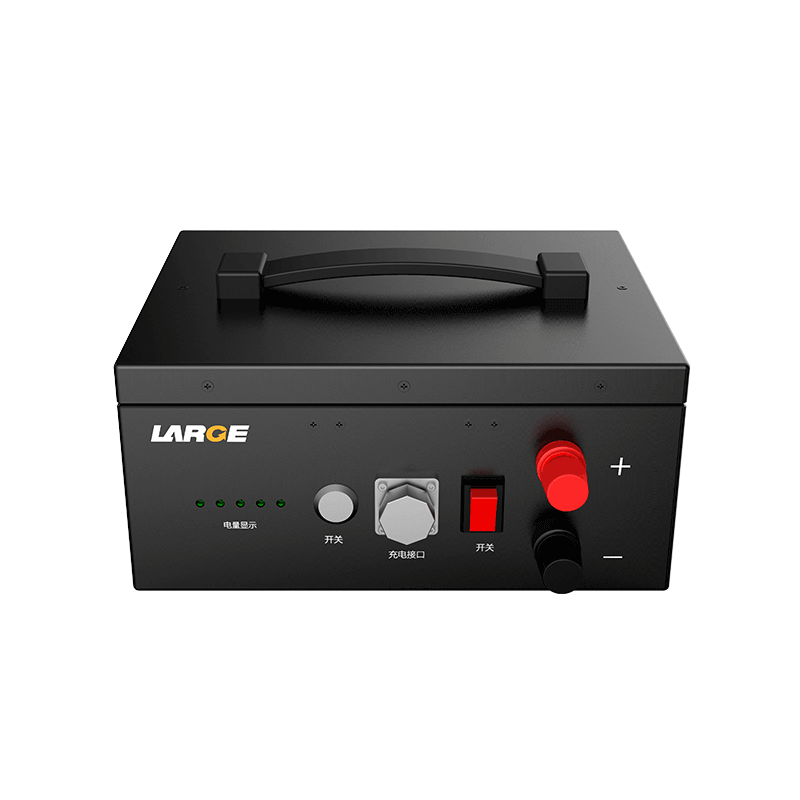

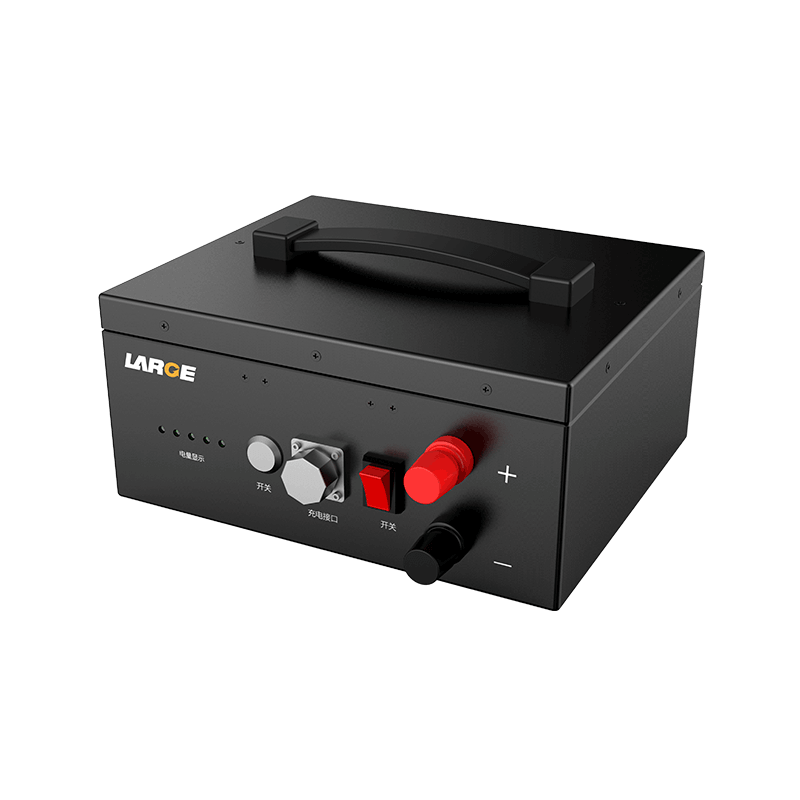

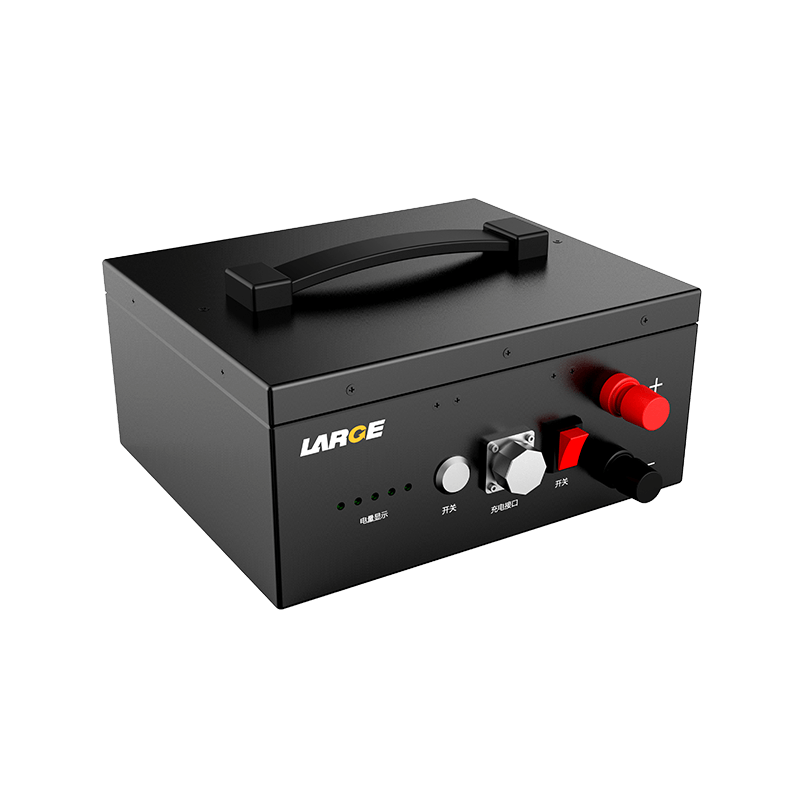

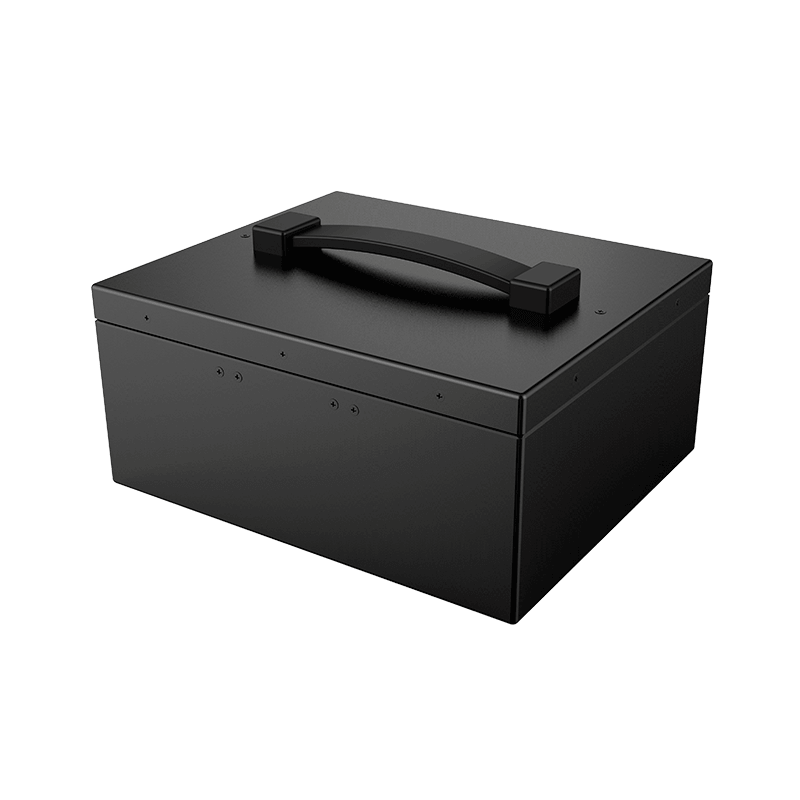

Custom Lithium ion Battery Pack
Product number: 35AQ092-01
Cell model: 18650/2600mAh/3.6V
Battery specification: 18650-7S8P/25.2V/20Ah
Nominal voltage: 25.2V
Nominal capacity: 20Ah
Charging voltage: 29.4V
Charging current: ≤10A
Discharge current: 10A
Instant discharge current: 20A
Discharge cutoff voltage: 21V
Internal resistance: ≤100mΩ
Battery weight: 3Kg
Product dimension: 190*170*90mm (Max)
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 55 ℃
Storage temperature: -20 ~ 45 ℃
Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, equalization, 232 or 485 communication, etc.
Application: special automotive power supply
Product features
1.Current: maximum sustainable 20A discharge.
2.Shell: portable handle, military grade waterproof and dustproof design
3.Data communication management: use imported software management chip with 232 or 485 communication function, accurate data transmission, precise temperature control to eliminate of security risks.
4.Output: 24V voltage regulator module can stabilize 24V DC output with LED power display.
5.The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
