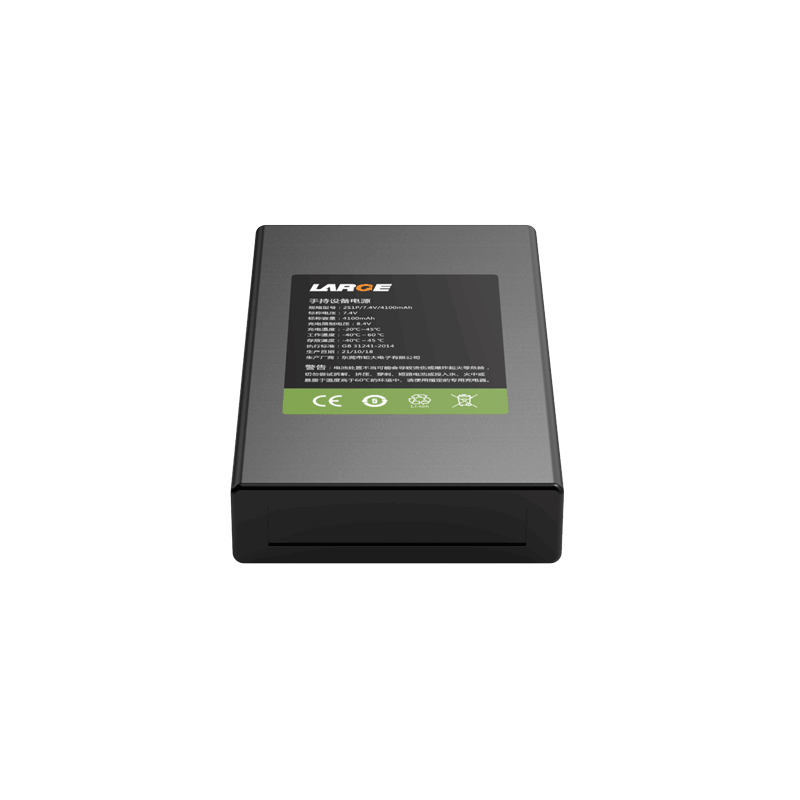

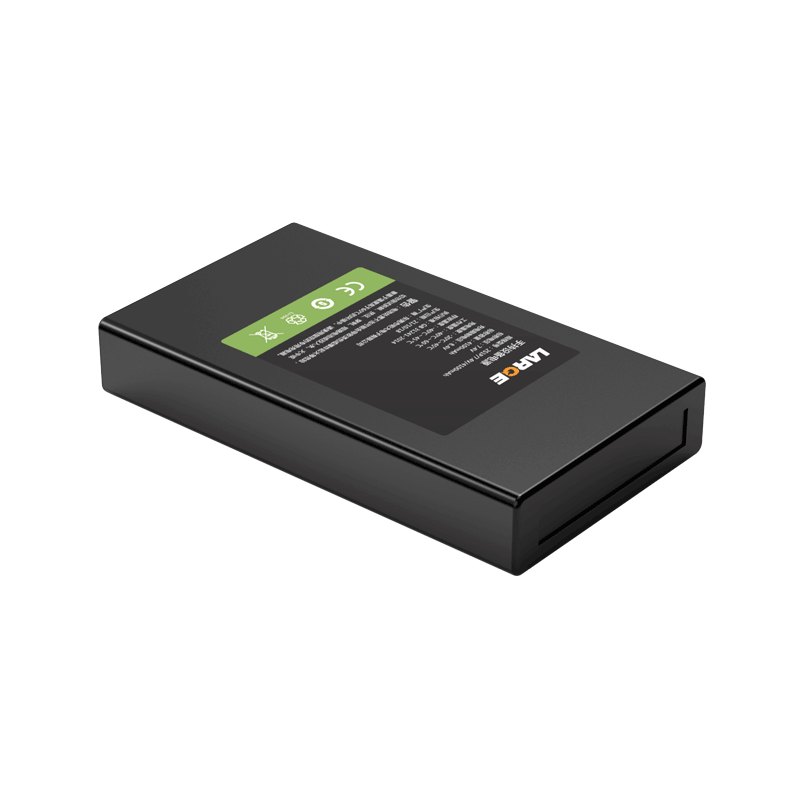

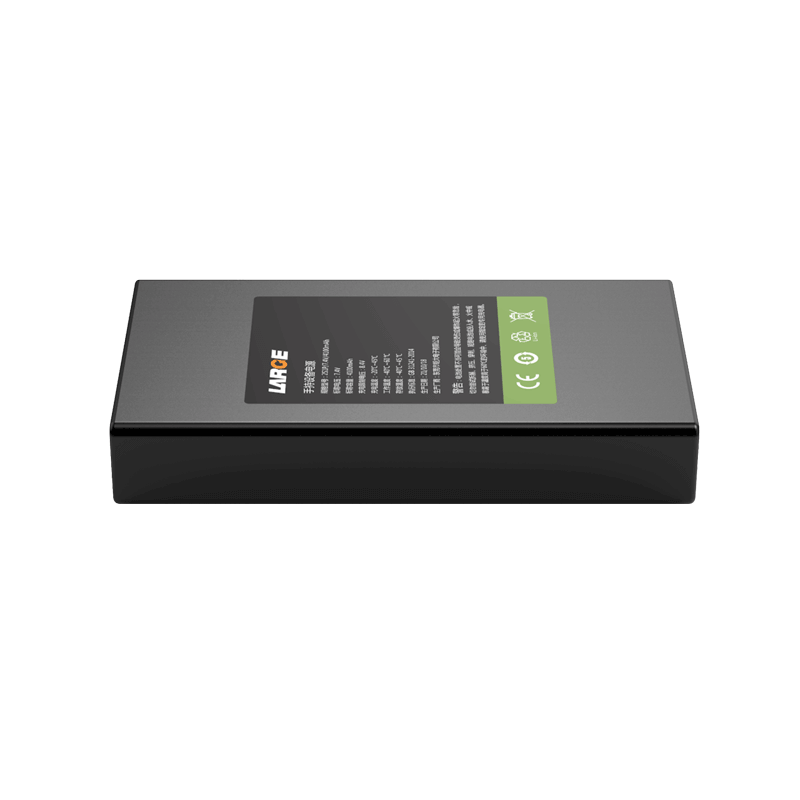

7.4V/4100mAH 705391 2S1P Lithium-ion Battery

Customization | Free Battery Solution

Product Detail

Project number:33DZ030-03

Cell model: 705391 3.7V/4100mAh

Specification: 2S1P/7.4V/4100mAh

Nominal voltage: 7.4V

Nominal capacity: 3900mAh

Charging voltage: 8.4V

Charging current: ≤ 2.5A

Discharge current: ≤ 2.5A

Instantaneous discharge current: 3-6A

Discharge cut-off voltage: 2.5V

Finished product internal resistance: ≤150mΩ

Battery weight: 140G

Product size: 15.5*55*96mm (Max)

Charging temperature: -20 ~ 45℃

Discharge temperature: -40 ~ 60 ℃

Storage temperature: -40 ° C to 45 ° C

Battery case: Polymer battery plus board out of the cable

Communication: no

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.

Application: Power supply for handheld devices

Product Features

1.Energy consumption is low;

2.The battery pack is safe and has long cycle life.

3.The battery has long cycle life, in line with low carbon, energy saving, environmental protection values;
