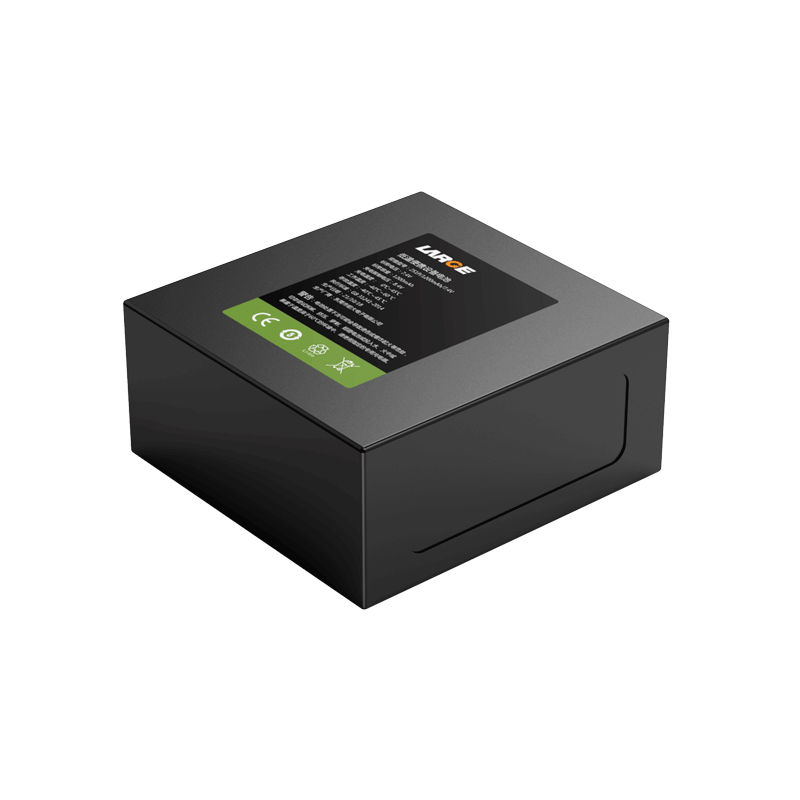

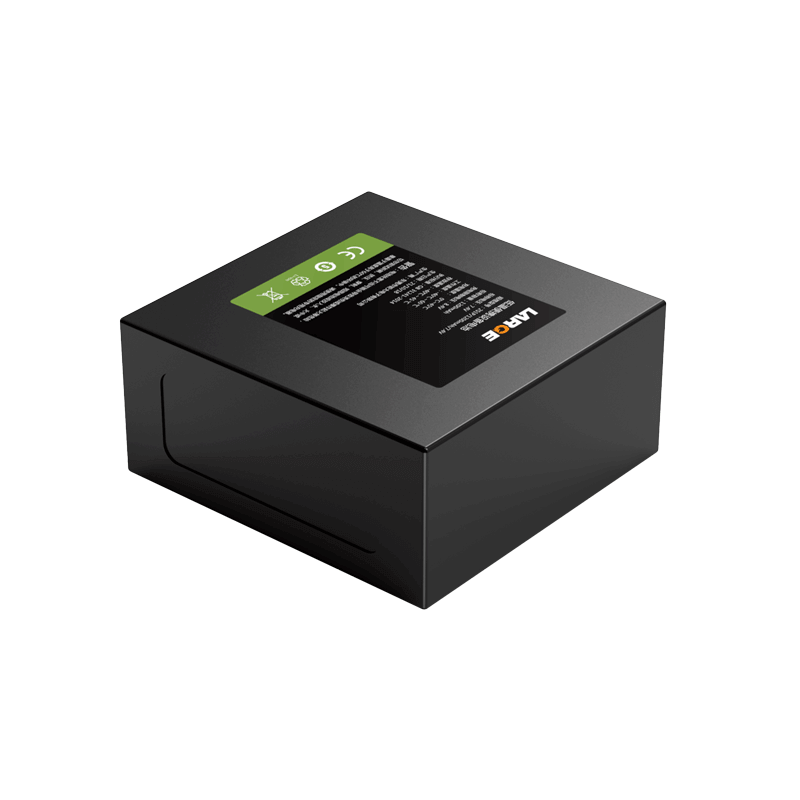

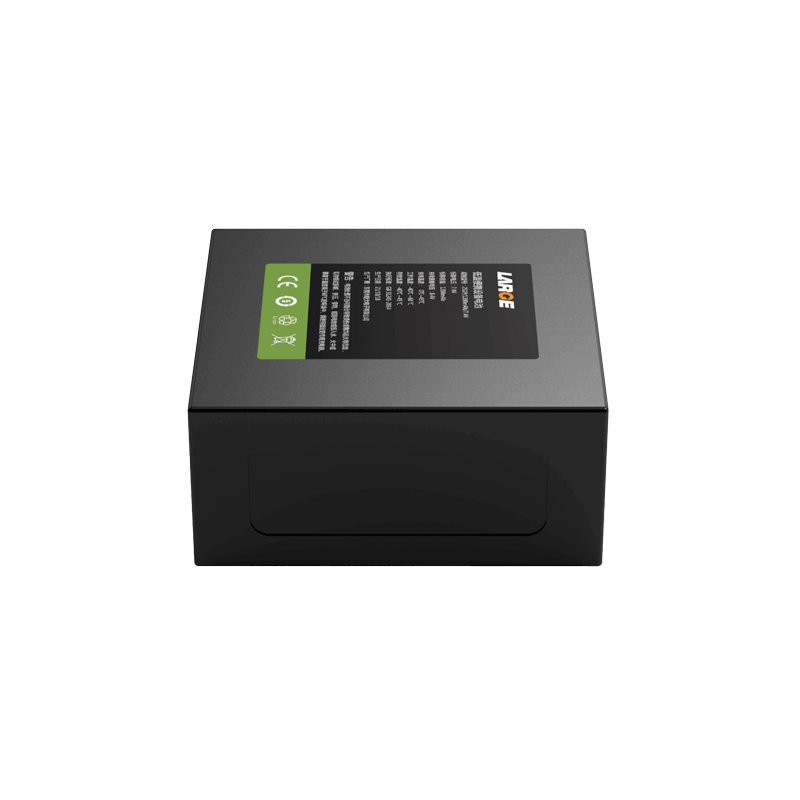

Custom Lithium ion Battery Pack
Project number: 40DZ009-03
Cell model: 784040/1200mah /3.7V
Specification: 2S1P/1200mAh/7.4V (low temperature)
Nominal voltage: 7.4V
Nominal capacity: 1200mAh
Charging voltage: 8.4V
Charging current: ≤0.6A
Discharge current: 2.4A
Instantaneous discharge current: 3-5A
Discharge cut-off voltage: 5V
Product internal resistance: ≤200mΩ
Battery weight: 45G
Product size: 19.2*41*42mm (Max)
Charging temperature: 0 ~ 45℃
Discharge temperature: -40 ~ 60 ℃
Storage temperature: -40 ° C to 45 ° C
Battery case: PVC
Communication: no
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection,SMBUS communication, etc.
Application: Portable devices
Product Features
1.Energy consumption is low;
2.Communication management: Use TI software to manage chips, transmit data precisely and control temperature, so as to minimise security risks.
3.The battery pack is safe, has good low-temperature performance and long cycle life.
4.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
