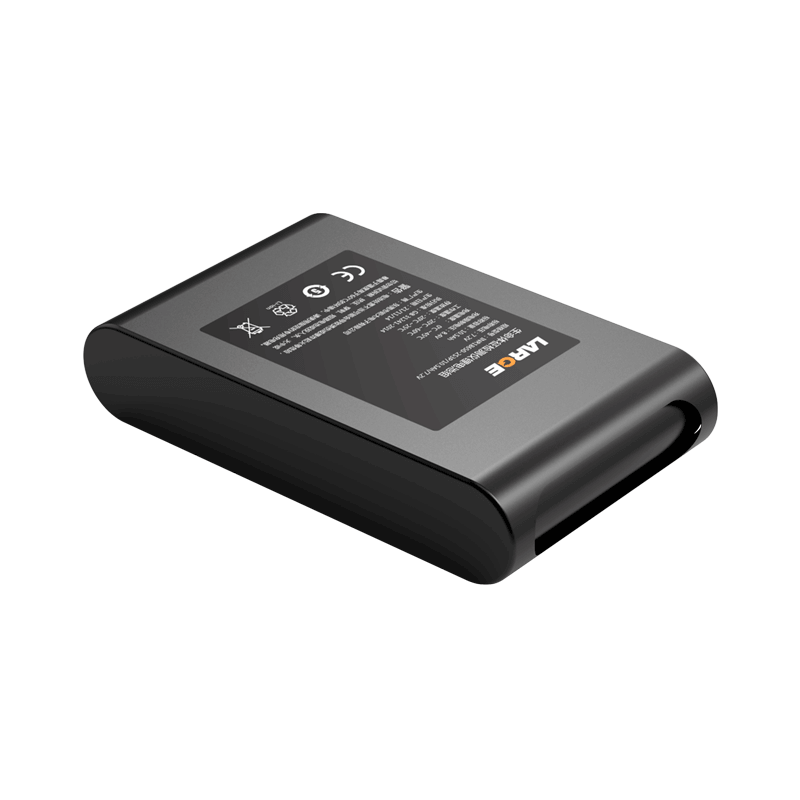

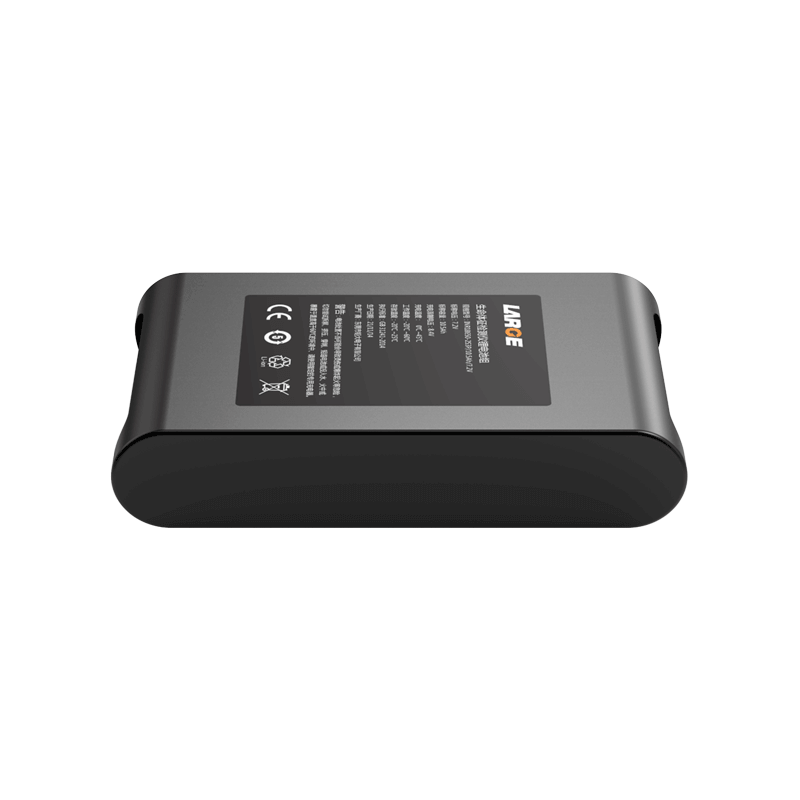

Custom Lithium ion Battery Pack
Project number: 06DQ057-02
Cell model: INR18650-35E/3350mAh/3.7V
Specification: INR18650-2S3P/ 10.5AH /7.2V
Nominal voltage: 7.2V
Nominal capacity: 10.5Ah
Charging voltage: 8.4V
Charging current: ≤5.25A
Discharge current: 5.25A
Instantaneous discharge current: 6.0A
Cut-off voltage: 5.6V
Finished product internal resistance: ≤150mΩ
Battery weight: 400G
Product size: 23.0*68*115mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 to 25 ° C
Battery case: /
Intelligent lithium battery protection: power calculation, short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Vital sign detector
