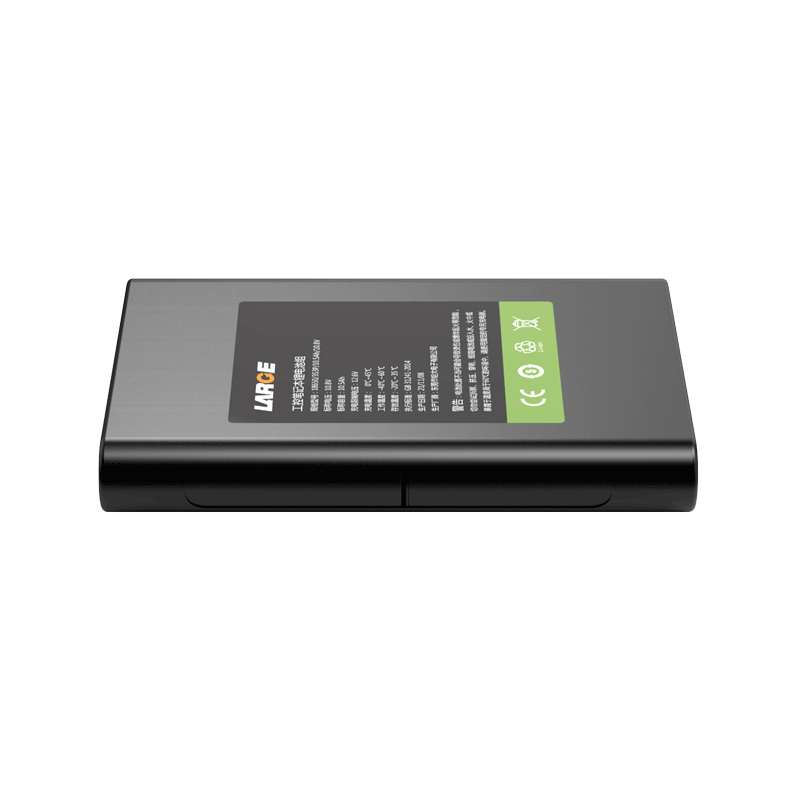

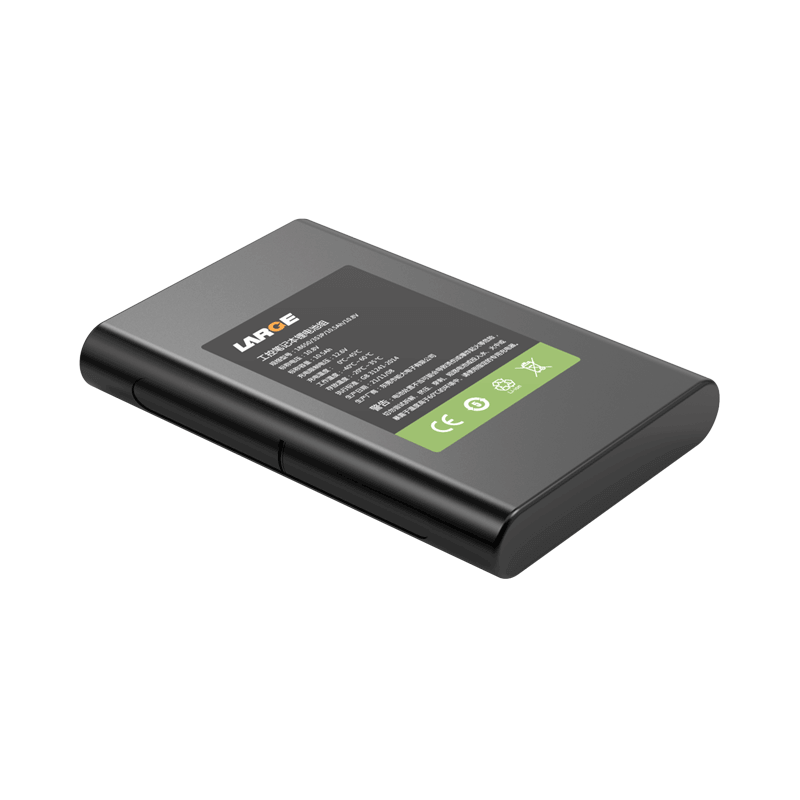

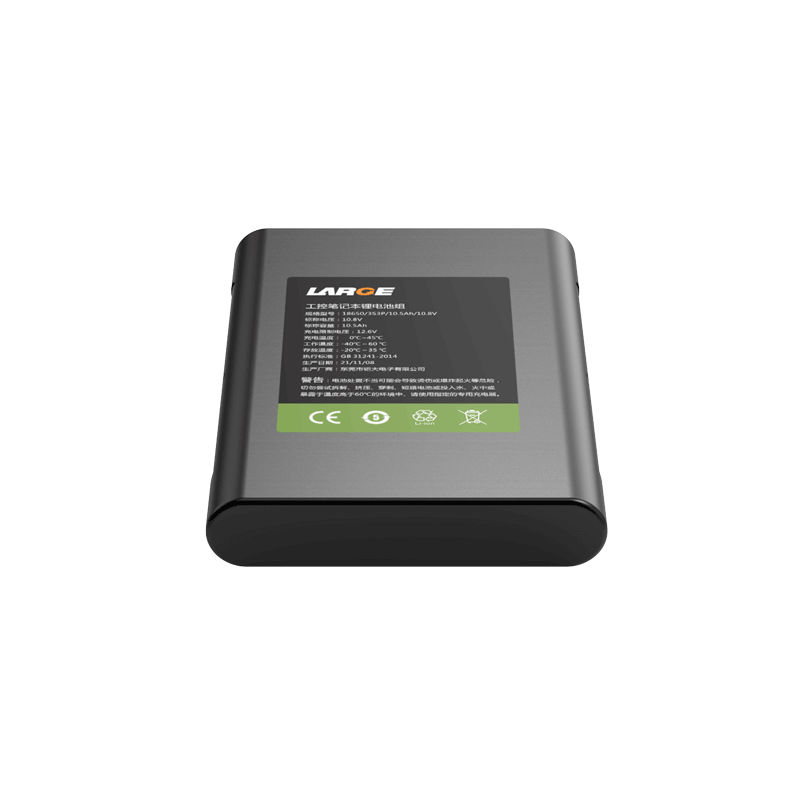

Project number: 08DQ0004-01
Cell model: N18650CP/3200mAh/3.6V-BAK
Specification: 18650/3S3P/10.5Ah/10.8V
Nominal voltage: 10.8V
Nominal capacity: 10.5Ah
Charging voltage: 12.6V
Charging current: ≤3.0A
Discharge current: 4.0A
Instantaneous discharge current: 7.0A
Discharge cut-off voltage: 7.5V
Internal resistance: ≤250mΩ
Battery weight: 500G
Product size: 21.5*95*138mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -40 ~ 60℃
Storage temperature: -20 to 35 ° C
Battery case: /
Intelligent lithium battery protection: power management, short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Industrial laptop
