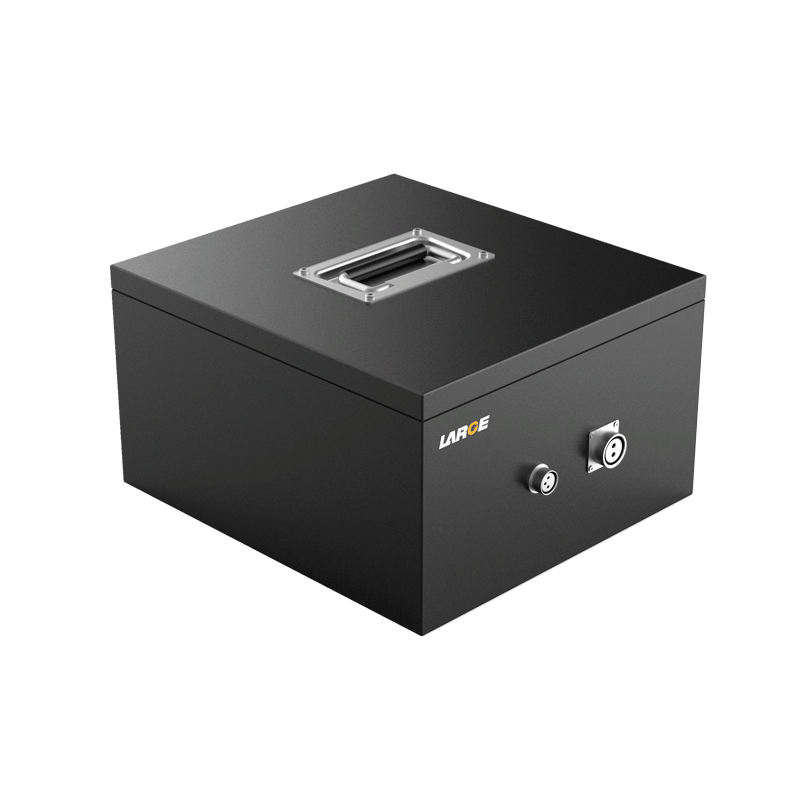

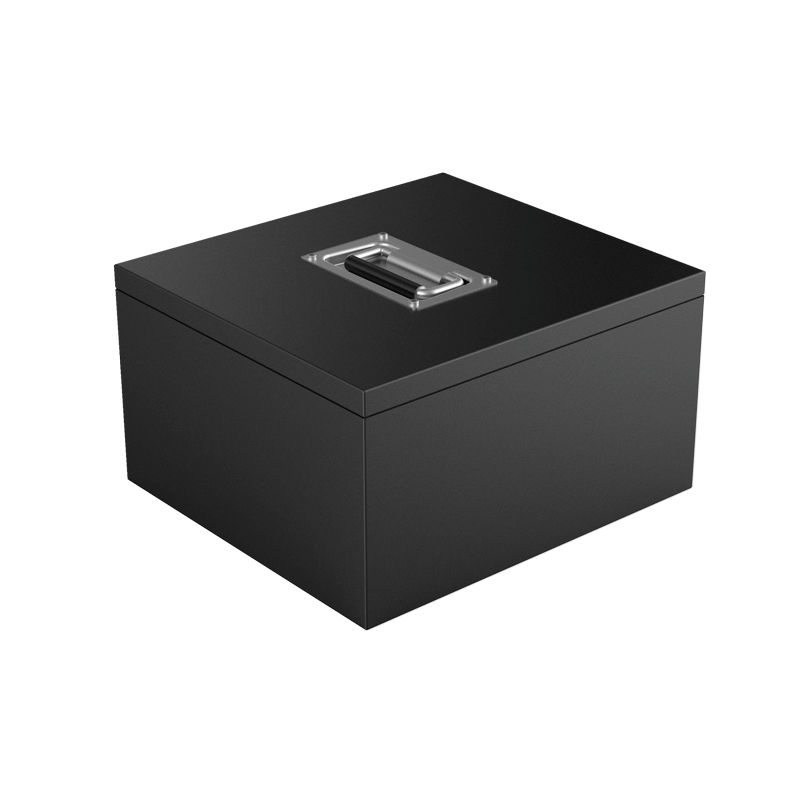

Custom Lithium ion Battery Pack
Product number: 03EQ123-01
Cell model：32650/3.2V/6Ah
Battery specification: 32650-8S16P/24V/96Ah
Nominal voltage：24V
Nominal capacity：96Ah
Charging voltage: 29.2V
Charging current: ≤20A
Discharging current: 10A
Instant discharging current: 50A
End-off voltage: 18.4V
Internal resistance: ≤150mΩ
Battery weight: 23.0kg
Product dimension: 350*320*180mm（Max）
Charging temperature：0～45℃
Discharging temperature: -20～60 ℃
Storage temperature: -20～60 ℃
Temperature protection: 65℃±5℃
Battery case: cold rolling and metal plate
Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, etc.
Application: ocean monitoring, industrial equipment, emergency power supply of portable emission instrument, etc.
Product features
1. Fast connect: adopt push-pull self-locking connector, which is efficient, safe and reliable.
2. Data communication management: adopt IC+TI charger management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.
3. The battery pack has good security, professional handle, nice low temperature performance and long cycle life.
4. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
5. Shock-resistant and waterproof: fill in the shock-resistant structure inside the cold rolling metal plate housing to satisfy the requirements of good security and high reliability.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
