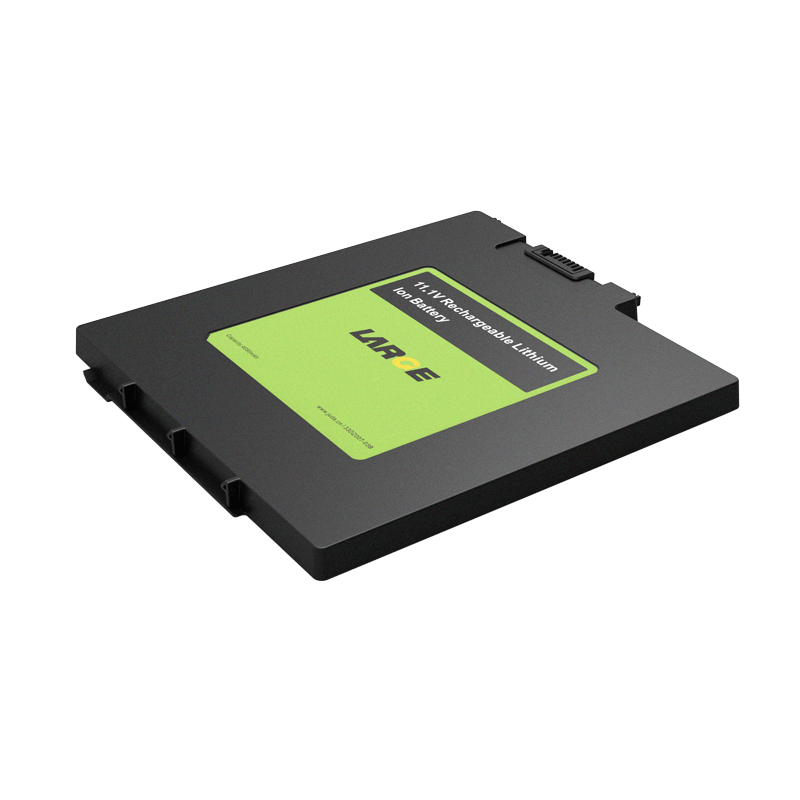

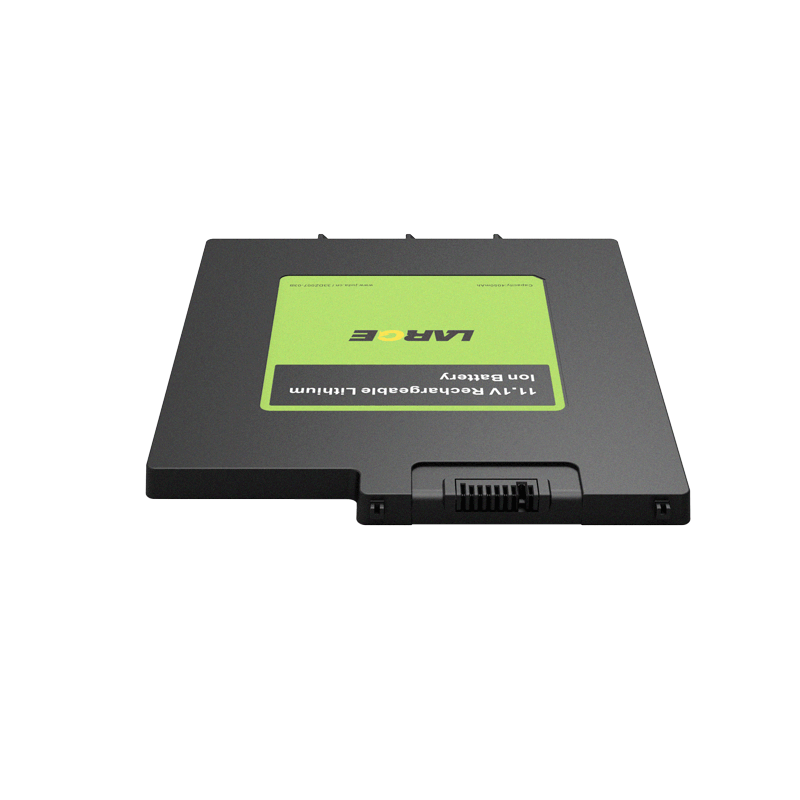

Custom Lithium ion Battery Pack
Product number: 33DZ007-03B
Cell model：5642128/3.7V/4050mAh
Battery specification: LPB-808-00B-3S1P/4050mAh/11.1V
Nominal voltage：11.1V
Nominal capacity：4050mAh
Charging voltage: 12.6V
Charging current: ≤3A
Discharging current: 3A
Instant discharging current: 4A
End-off voltage: 7.5V
Internal resistance: ≤200mΩ
Battery weight: 350g
Product dimension: 131.91*145.91*8.6mm(L*W*H)
Charging temperature：0～45℃
Discharging temperature: -40～60 ℃
Storage temperature: -20～35 ℃
Temperature protection: 65℃±5℃
Communication protocol: SMBUS
Battery case: engineering plastic, military grade
Battery protection: short circuit+overcharge+over-discharge+overcurrent protection, temperature protection, equilibrium, etc.
Application field: laptop
Product features
1. Hardware output connector: adopt gold-plated shrapnel output mode to increase conductive reliability.
2. Cell: adopt ultra-low temperature cell, so that it can discharge at 40℃.
3. Data communication management: adopt TI software management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.
4. The battery pack has good security, nice low temperature performance, and it is military product.
5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
