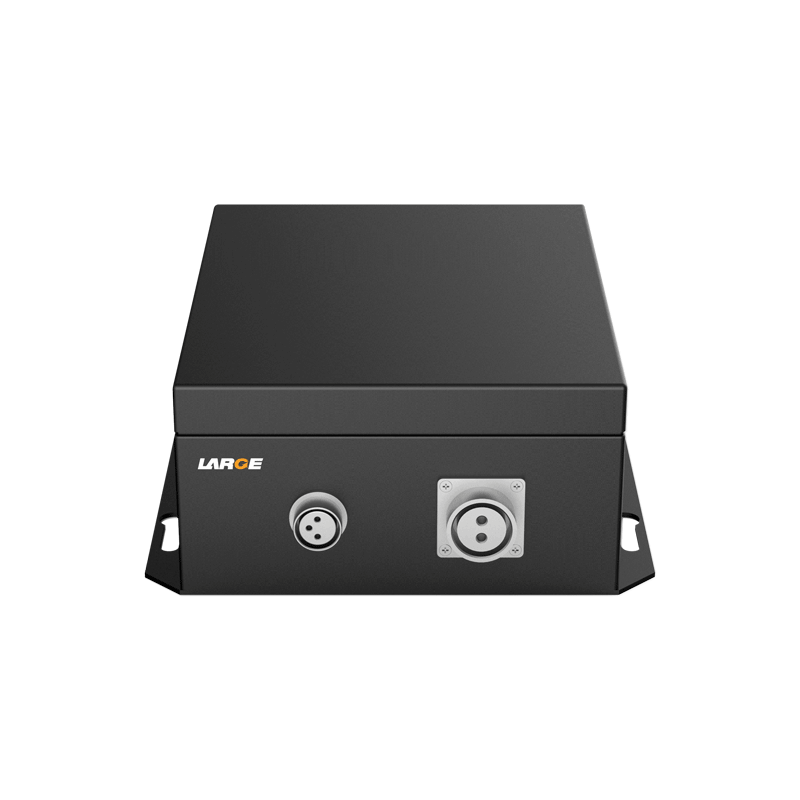

Custom Lithium ion Battery Pack
Product number: 03EQ111-01
Cell model：18650/3.6V/3.35Ah
Battery specification: 18650-7S8P/24V/26.8Ah
Nominal voltage：24V
Nominal capacity：26.8Ah
Charging voltage: 25.2V
Charging current: ≤5A
Discharging current: 7A
Instant discharging current: 15A15ms
End-off voltage: 19.6V
Internal resistance: ≤150mΩ
Battery weight: 4.0kg
Product dimension: 210*165*80mm（Max）
Charging temperature：0～45℃
Discharging temperature: -20～60 ℃
Storage temperature: -20～60 ℃
Temperature protection: 65℃±5℃
Battery case: metal plate housing
Battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, RS485 communication, etc.
Application
industrial machinery equipment, emergency power supply of portable emission instrument, etc.
Product features
1. Communication function: RS485 communication protocol; can monitor the battery information of voltage, current, capacity, temperature, etc.
2. Fast connect: adopt push-pull self-locking connector, which is efficient, safe and reliable.
3. Data communication management: adopt IC+TI charger management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.
4. The battery pack has good security, professional handle, nice low temperature performance and long cycle life.
5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
6. Shock-resistant and waterproof: fill in the shock-resistant structure inside the cold rolling metal plate housing to satisfy the requirements of good security and high reliability.
