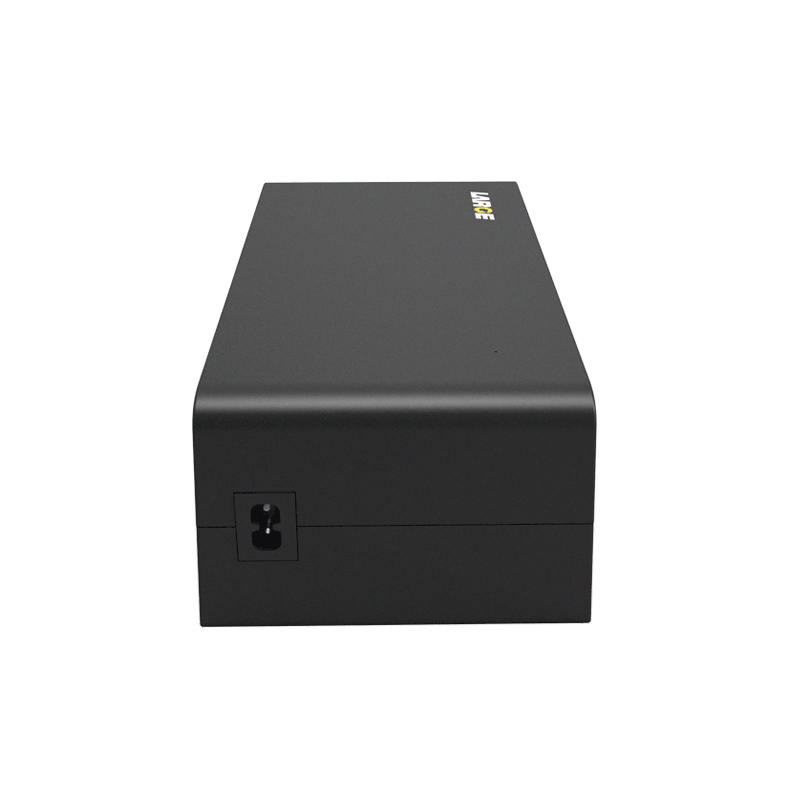

24V 7Ah LiFePO4 Battery Pack for Electric Sofa

Customization | Free Battery Solution

Product Detail

Product number: 03EQ206-01

Cell model:26650/3.2V/3.5Ah

Battery specification: 26650-8S2P/24V/7Ah

Nominal voltage:25.6V

Nominal capacity:7Ah

Charging voltage: 29.2V

Charging current: 1A

Discharging current: 5A

Instant discharging current: 20A 15ms

End-off voltage: 21.6V

Internal resistance: ≤200mΩ

Battery weight: 2.5kg

Product dimension: 245*120*75mm(Max)

Charging temperature:0~45℃

Discharging temperature: -20~60℃

Storage temperature: -20~35℃

Temperature protection: 65℃±5℃

Battery case: engineering plastic PC+ABS

Battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, power display, low power alarm.


Industrial device, portable equipment, household electric sofa, etc.

Product features

1. Parameter function: short circuit protection, overcharge protection, over discharge protection, over current protection, temperature protection, power display, low power alarm, etc.

2. Fast connection: adopt UBS minin connector, which is fast, safe and reliable.

3. Data communication management: adopt IC+TI charger management chip, precise data transmission and accurate temperature control so as to try our best to eliminate the security risks.

4. The battery pack has good security, vehicle standard, stable performance and long cycle life.

5. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.

6. Shockproof: it has plastic housing shockproof structure design, which meets the safe and reliable requirements.
