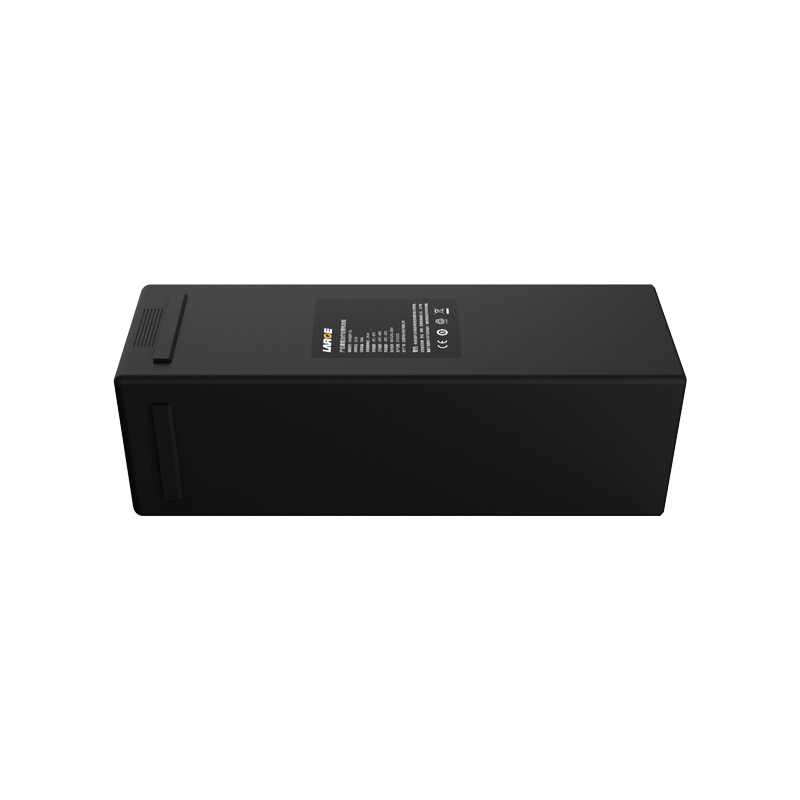

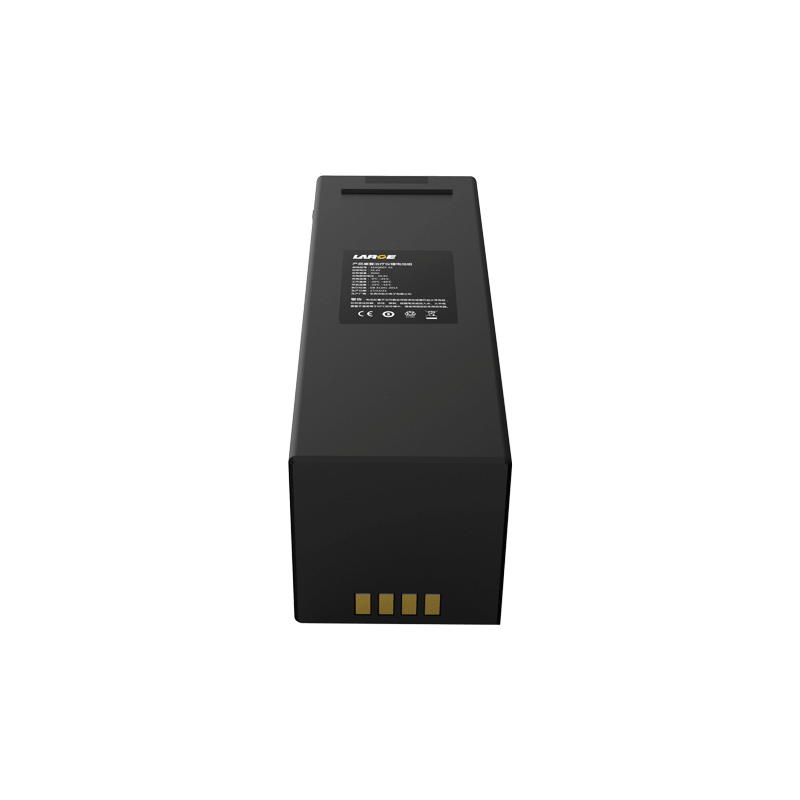

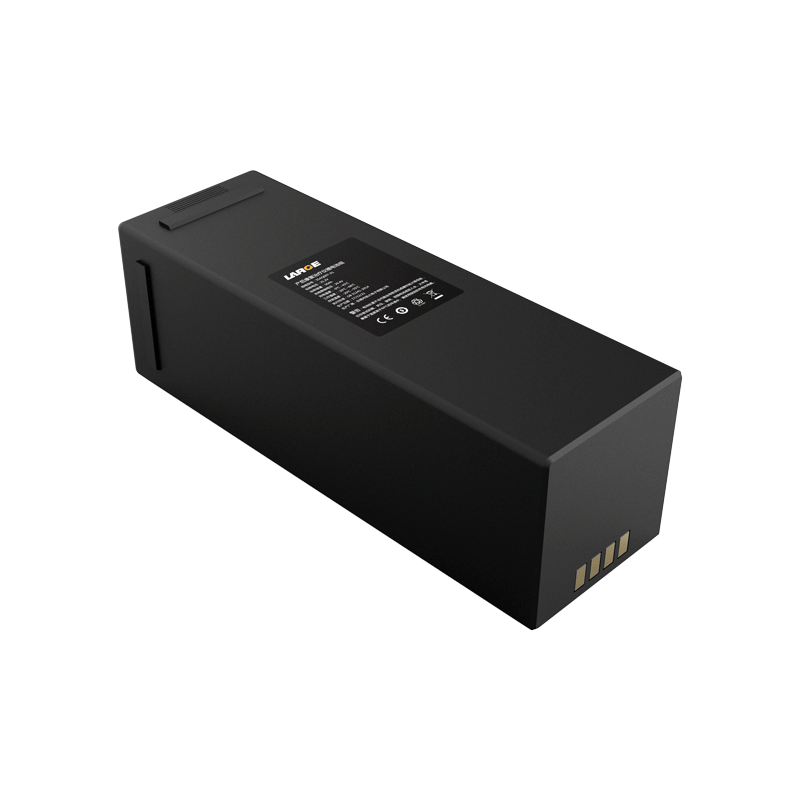

25.2V 3300mAh 18650 Lithium Battery Pack

Product Number: 35AQ007-01

Battery cell model: 18650/3.6V/3350mAh

Battery specifications: 18650/7S1P/25.2V/3300mAh

Nominal voltage: 25.2V

Nominal capacity: 3300mAh

Charging voltage: 29.4V

Charging current: ≤1.5A

Discharge current: 1A

Instantaneous discharge current: 3A

Discharge cut-off voltage: 19.6V

Finished product internal resistance: ≤200mΩ

Battery weight: 500g

Product dimensions: 151×49×49mm (Max)

Charging temperature: 0-45℃

Discharge temperature: -20 to 50℃

Storage temperature: -20 to 40℃

Temperature protection: 65℃±5℃

Battery housing: PC/CNC

Lithium battery protection: short-circuit protection, overcharge protection, overdischarge protection, overcurrent protection, temperature protection

Application fields: Medical equipment, postpartum rehabilitation medical devices

Product features

Shockproof: Through the design of a high-strength PC fireproof shell filled with shockproof structure inside, it meets the requirements of high safety and high reliability.

High-current connector: It adopts gold finger connector, which is safe and reliable.

Communication interface: It adopts the RS485 communication protocol, which can read information such as battery voltage, current, temperature and capacity.

Data communication management: Utilizing software management chips, precise data transmission, and accurate temperature control to eliminate potential security risks to the greatest extent.

The battery pack is safe and equipped with a temperature probe. It automatically starts protection when the temperature exceeds the limit.

The battery pack has a high cycle life and conforms to the value concepts of low carbon, energy conservation and environmental protection.
