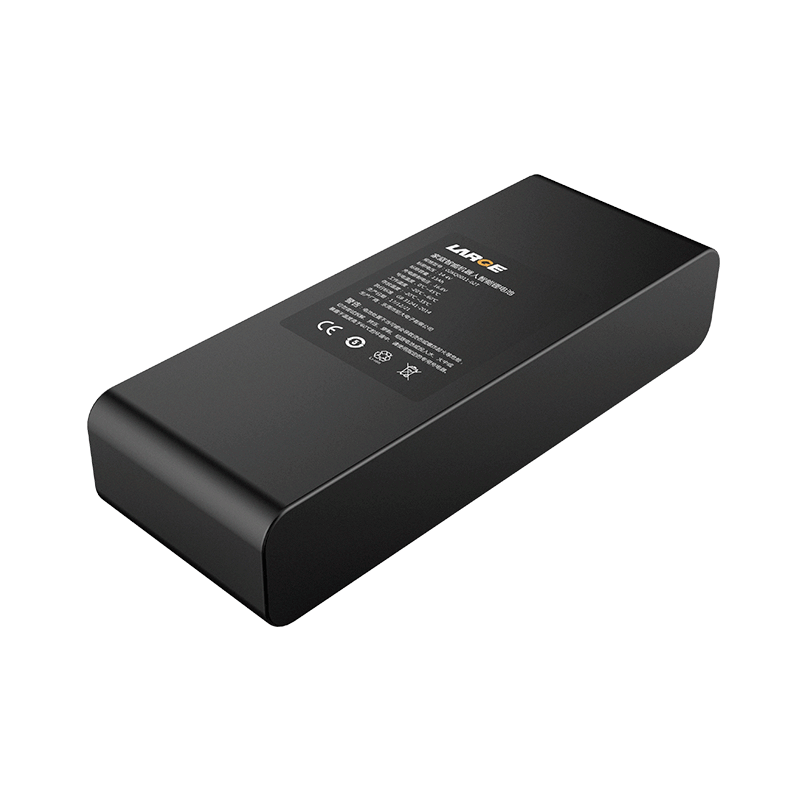

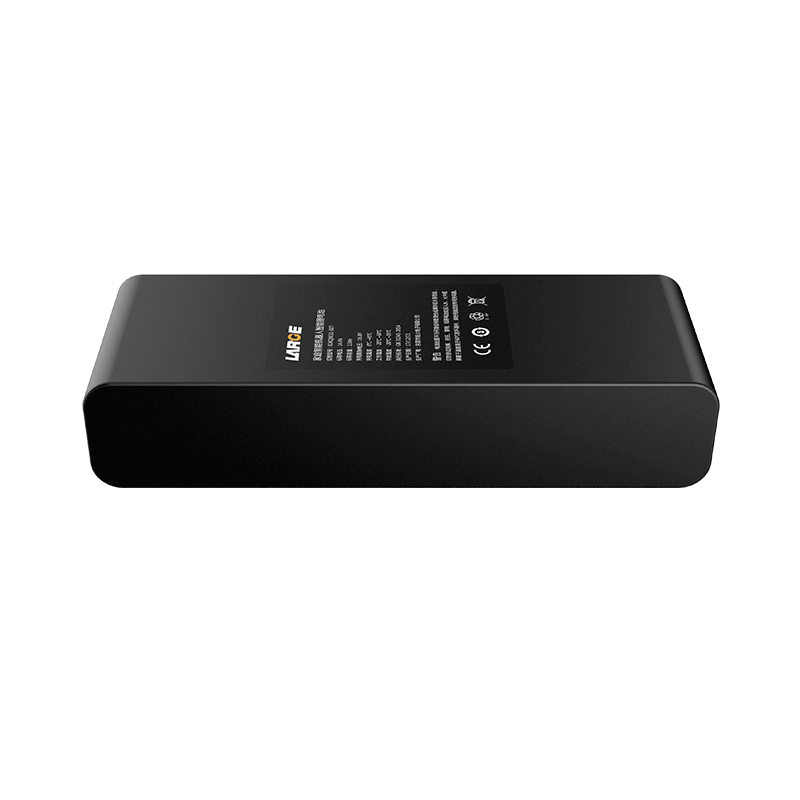

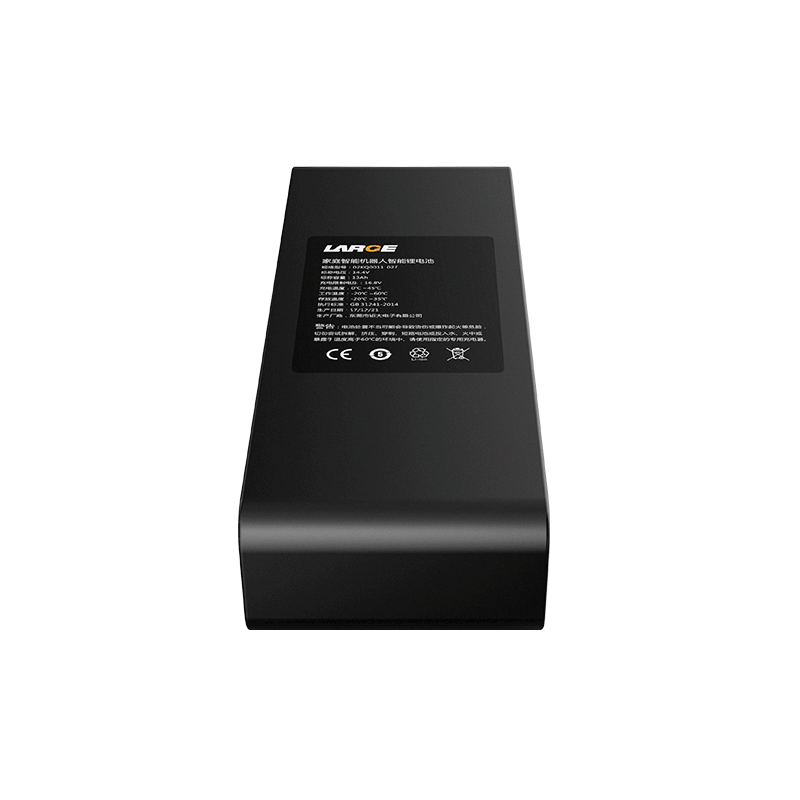

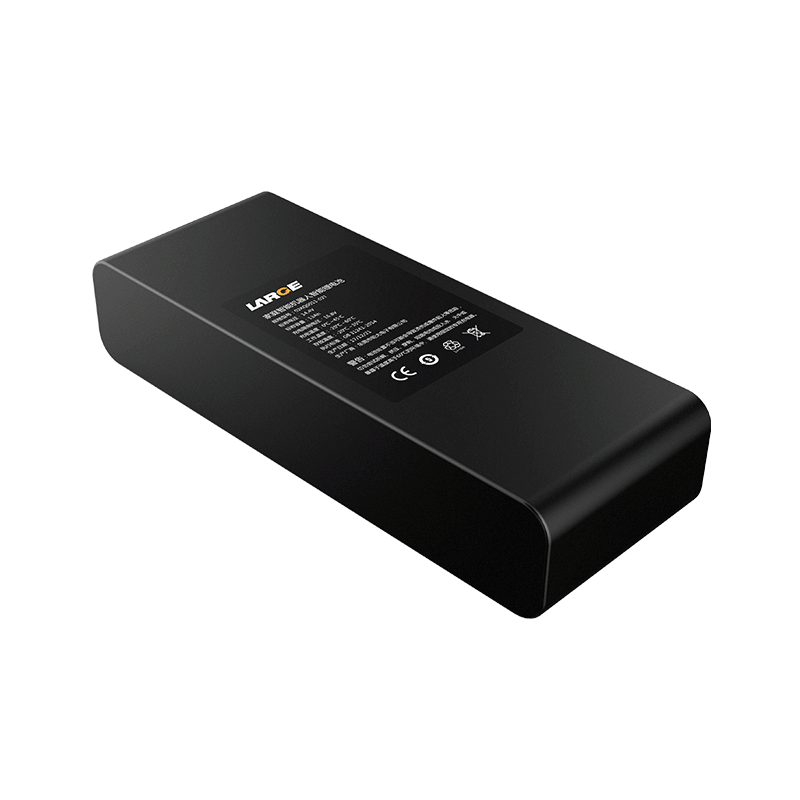

Custom Lithium ion Battery Pack
Product number: 02KQ0011-02T
Cell model: LR1865SK/2600mAh/3.6V
Specification: LR1865SK / 4 s5p / 13000 mah / 14.4 V
Nominal voltage: 14.4V
Nominal capacity: 13Ah
Charging voltage: 16.8V
Charging current: ≤5.0A
Discharge current: ≤6.0A
Instant discharge current: 8.0A for 1S
Discharge cutoff voltage: 11.0V
Internal resistance of finished product: ≤200mΩ
Battery Weight: Approximately 980g
Product dimension: 190*71*38mm (Max)
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60 ℃
Storage temperature: -20 ~ 35 ℃
Temperature protection: charge 55±2℃ discharge 60±2℃
Battery case: PVC
Lithium battery protection: over charge protection, over discharge protection, charge and discharge over current protection, charge and discharge short circuit protection, charge and discharge temperature protection,low voltage alarm, etc.
Application: Home intelligent robot
Product features
1.Data communication management SMBUS: use TI software management chip and IC to monitor battery pack temperature, voltage, capacity, percentage and other parameters.
2.The host machine carries out data transmission through SMBUS communication, so that the battery pack information can be known at any time to improve security.
3.The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
