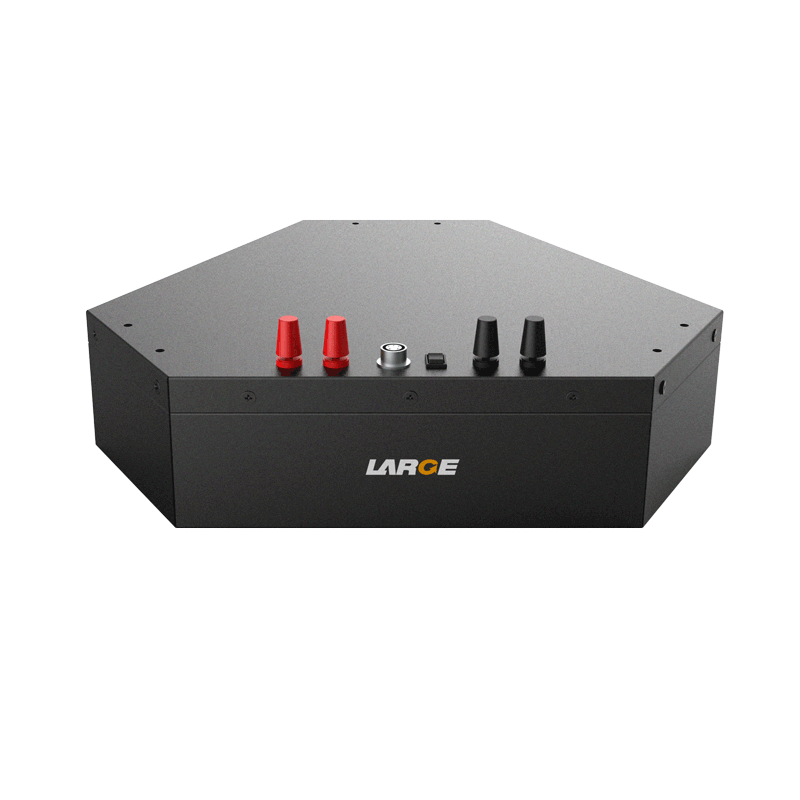

Custom Lithium ion Battery Pack
Product number: 36AQ188-01
Cell model：26650/3.2V/3.5Ah
Battery specification: 26650-12S6P/38.4V/21Ah
Nominal voltage：38.4V
Nominal capacity：21Ah
Charging voltage: 43.8V
Charging current: 10A
Discharging current: 20A
Instant discharging current: 60A 1s
End-off voltage: 30V
Internal resistance: ≤150mΩ
Battery weight: 12kg
Product dimension: 328*317.6*88.5mm（Max）
Charging temperature：0～45℃
Discharging temperature: -20～55℃
Storage temperature: -20～40℃
Temperature protection: 60℃±5℃
Battery case: metal plate housing
Communication: RS485
Battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, power display, low power alarm, etc.
Application field: robot, AGV, etc.
