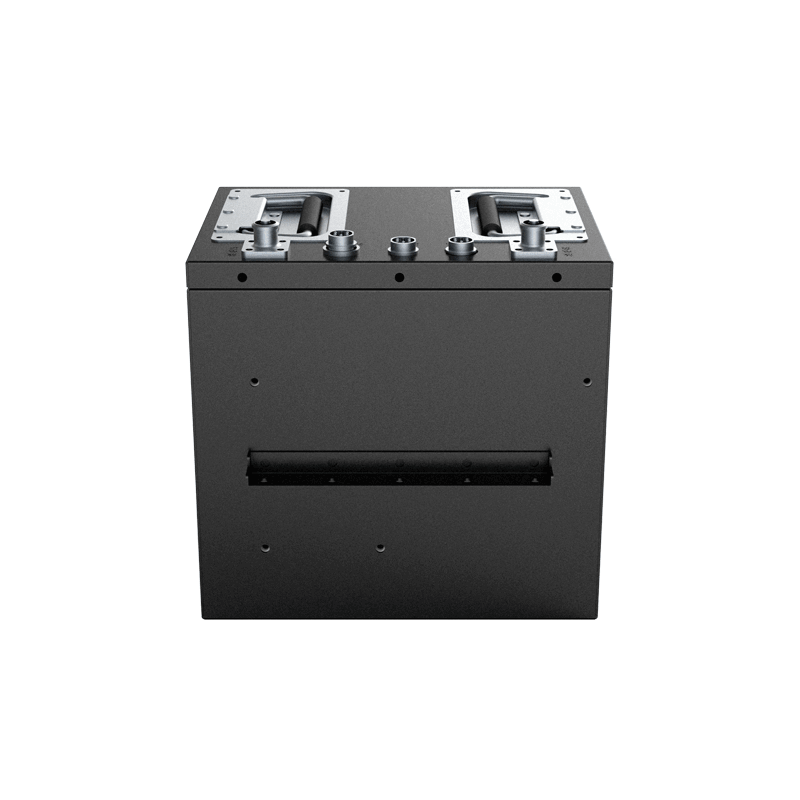

Custom Lithium ion Battery Pack
Product number: 39DZ003-04
Cell model：2770145/3.2V/20Ah
Battery specification: 10S2P/32V/40Ah
Nominal voltage：32V
Nominal capacity：40Ah
Charging voltage: 36.5V
Charging current: ≤10A
Discharging current: 40A
Instant discharging current: 60A
End-off voltage: 20V
Internal resistance: ≤150mΩ
Battery weight: 13Kg
Product dimension: 245*185*230mm
Charging temperature：0～45℃
Discharging temperature: -20～60 ℃
Storage temperature: -20～45 ℃
Temperature protection: 70℃±5℃
Battery case: metal shell
Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection and SOC management.
Application field: electric patrol inspection robot
Product features
1. It has weak current switch.
2. The battery comes with temperature protection.
3. The battery has its own battery detection port.
4. RS485 communication management: It has SOC management with fault warning.
5. The battery has good security and long cycle life.
6. It can fast charge at 0.5C.
7. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
