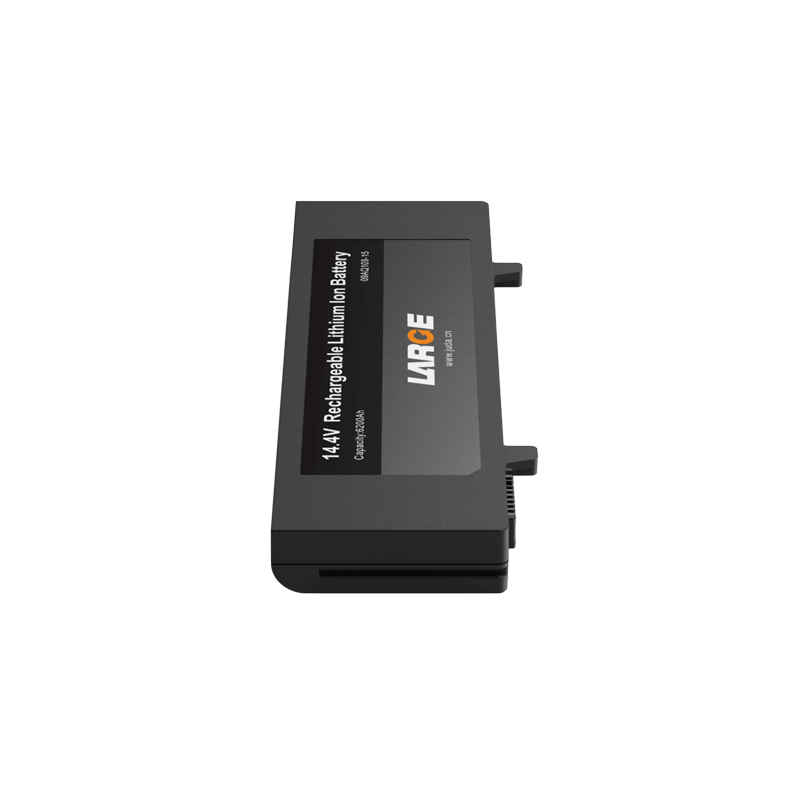

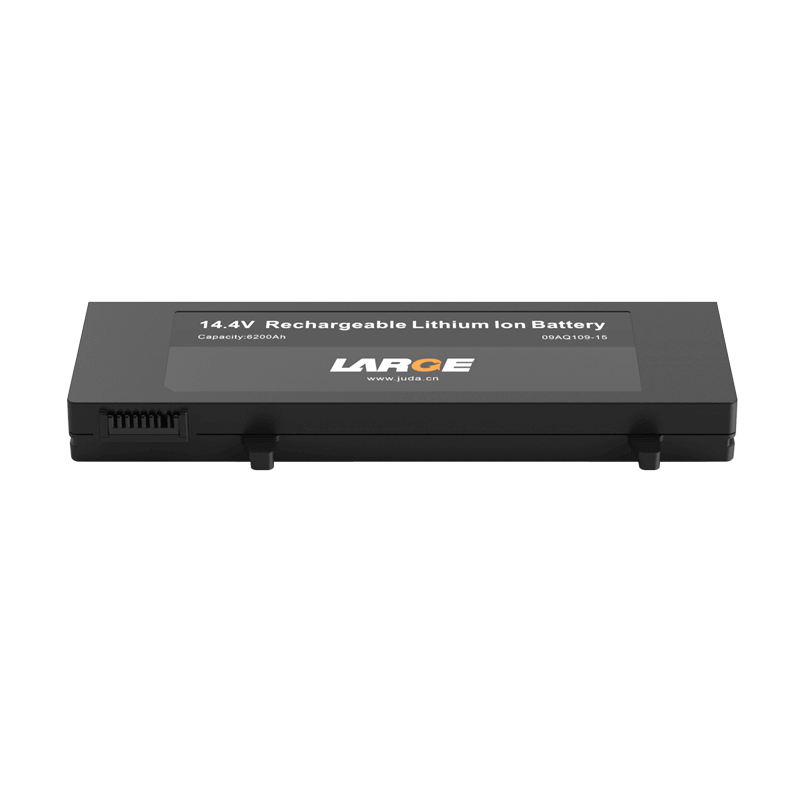

Custom Lithium ion Battery Pack
Project number: 09AQ109-15
Batteries model: NCR18650GA6W / 3350 mah / 3.6 V
Specification: 18650-4S2P/6200mAh/14.4V (Smart + Case)
Nominal voltage: 14.4V
Nominal capacity: 6200mAh
Charging voltage: 16.8V
Charging current: ≤3.10A
Discharge current: 6.20A
Instantaneous discharge current: 8.0A
Discharge cut-off voltage: 12.0V
Internal resistance: ≤250mΩ
Battery weight: 410G
Product size: 21.5*77.69*208mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ° C to 23 ° C
Battery case: /
Intelligent lithium battery protection: power management, short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: B ultrasound machine
