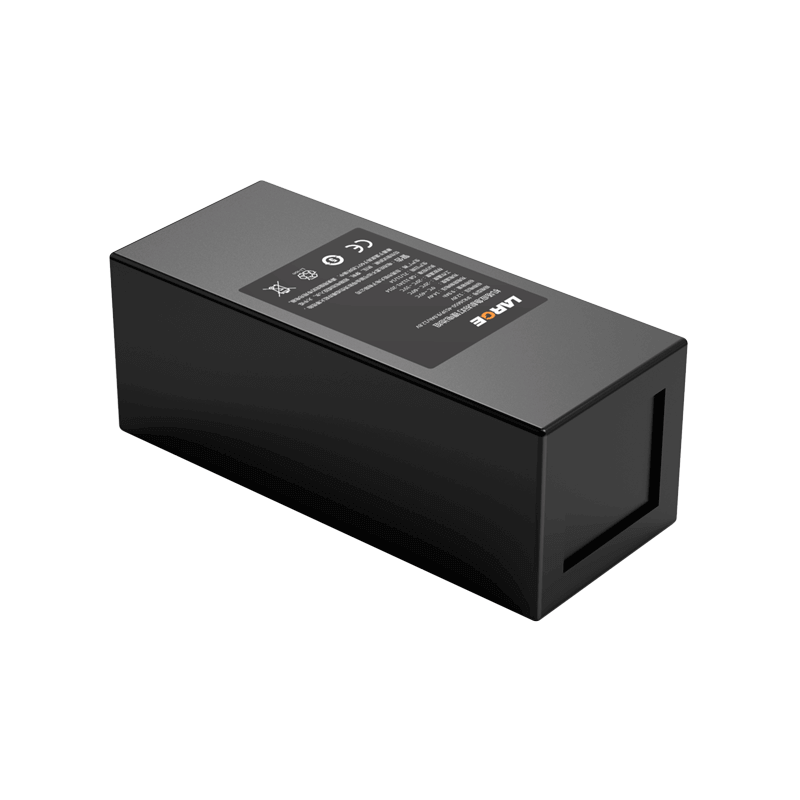

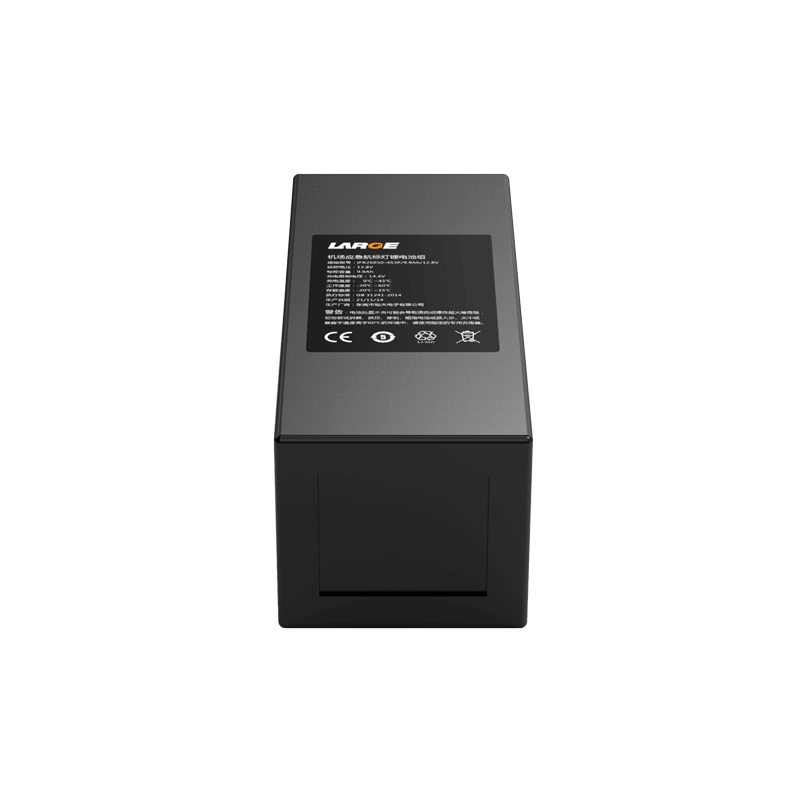

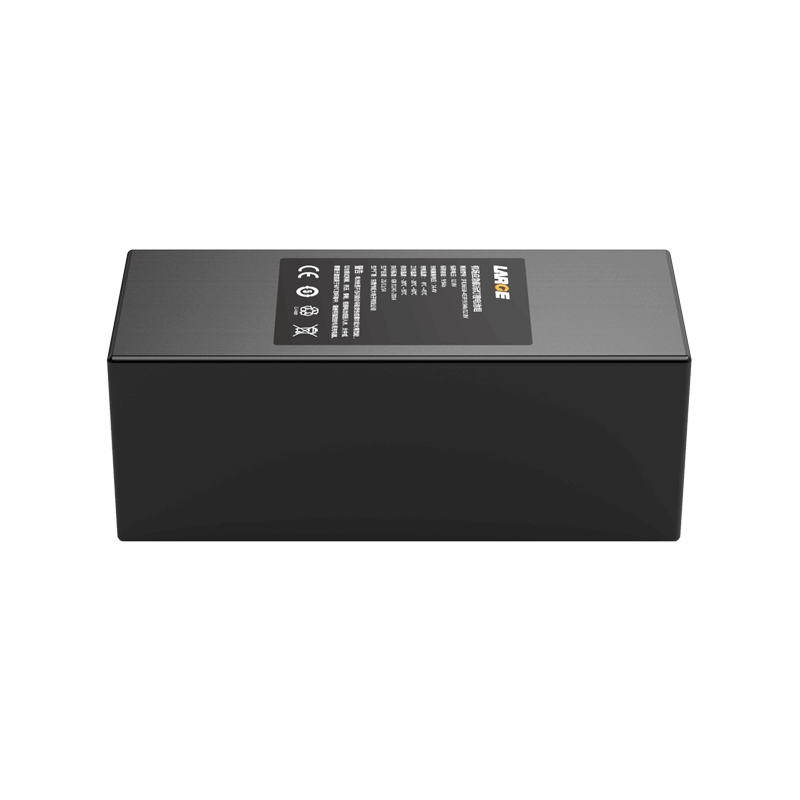

Custom Lithium ion Battery Pack
Project number: 01DQ0143-01
Cell model: IFR26650/4000mah /3.2V
Specification: IFR26650-4S3P/ 9.9Ah /12.8V
Nominal voltage: 12.8V
Nominal capacity: 9.9Ah
Charging voltage: 14.4V
Charging current: ≤2.0A
Discharge current: 3.0A
Instantaneous discharge current: 11.1A
Discharge cut-off voltage: 7.20V
Internal resistance of finished product: ≤100mΩ
Battery weight: 1200G
Product size: 65.0*72*172mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 to 35 ° C
Battery case: /
Intelligent lithium battery protection: charging management, power management, short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: airport emergency navigation light
