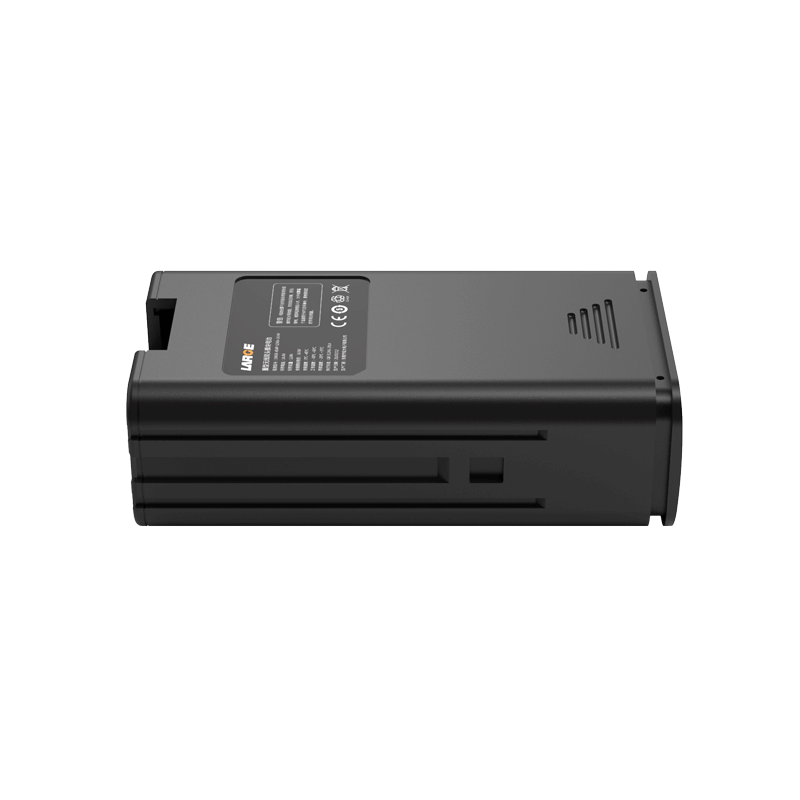

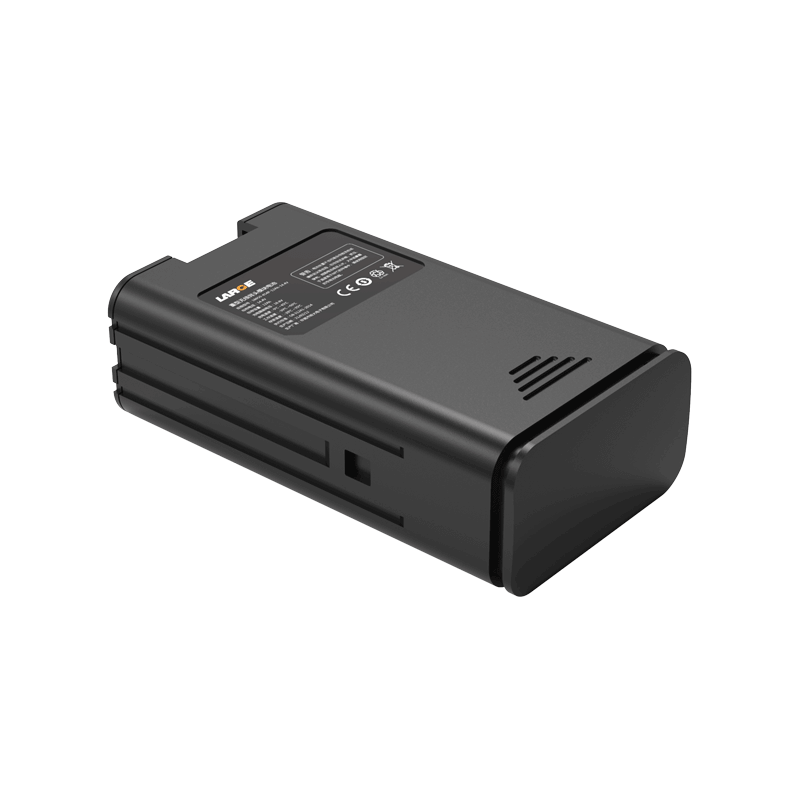

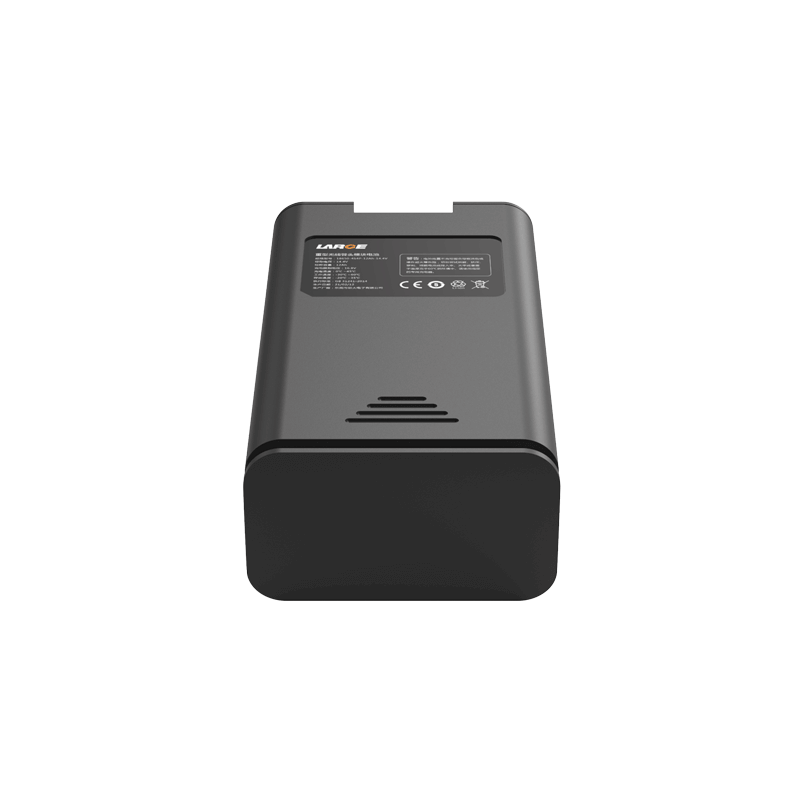

Custom Lithium ion Battery Pack
Product number: 36AQ517-05
Cell model: 18650-3350MAH-3.6V
Specification: 18650/1S2P/6600mAh/3.6V
Product size: 81.25*44*25mm
Nominal voltage: 3.6V
Nominal capacity: 6600mAh
Product internal resistance: ≤180mΩ
Charging voltage: 4.2V
Charging current: ≤3A
Discharge current: ≤3A
Discharge cut-off voltage: 3.0V
Battery weight: 120G
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60 ℃
Storage temperature: -20 to 35 ° C
Battery case: engineering plastic ABS+PC
Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.
Application: Infrared thermal imaging equipment, portable infrared equipment
Product Features
1.ABS+PC shell increases battery reliability and firmness.
2.Hardware output: Adopt gold-plated shrapnel output to increase conductive reliability;
3.Battery protection management: Adopt dedicated lithium battery protection chip with good stability, high precision monitoring and precise control,so as to eliminate security risks to the greatest extent.
4.The battery pack is safe, has good discharge performance and long cycle life.
5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
