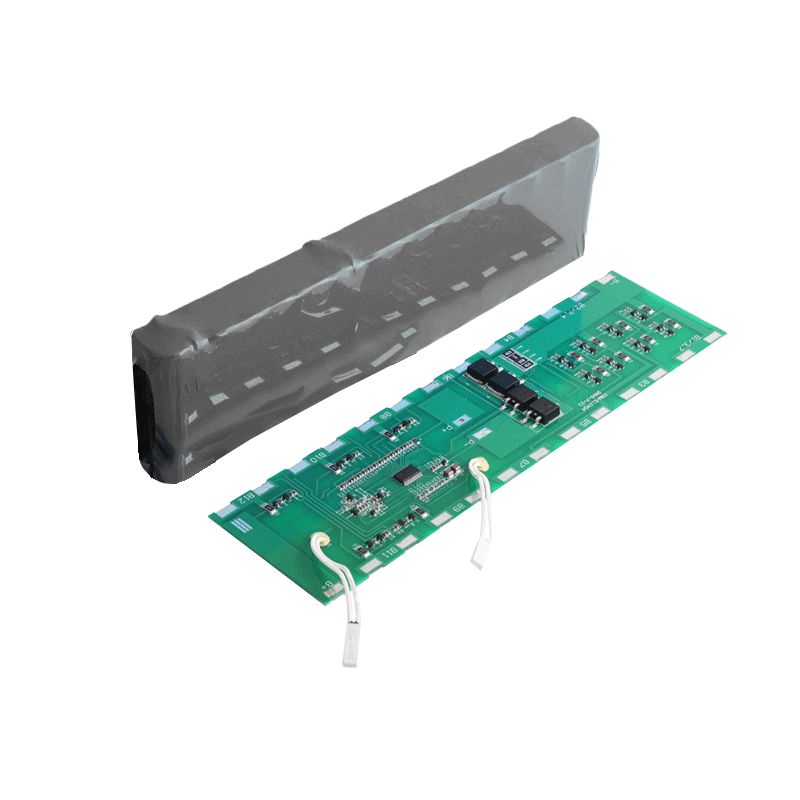

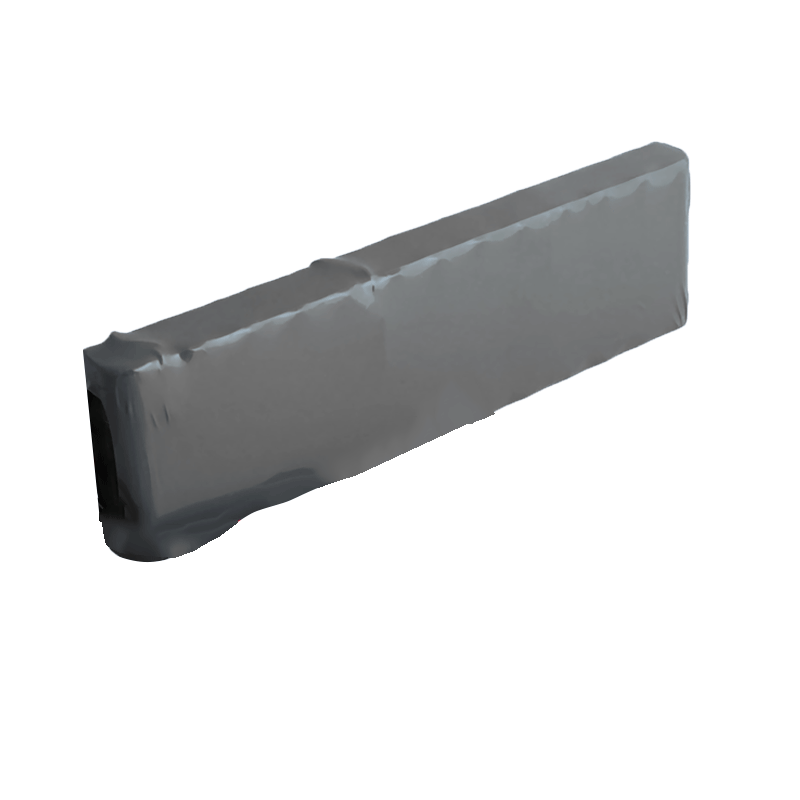

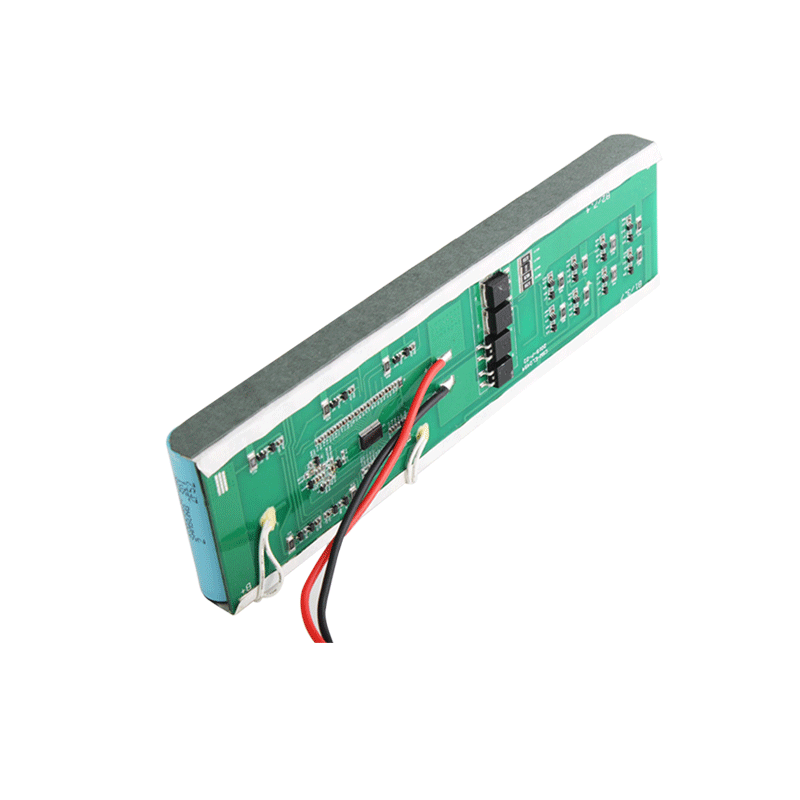

Custom Lithium ion Battery Pack
Nominal voltage: 48.1V
Nominal capacity: 2900mAh
Operating voltage: 32.5V~54.6V
Operating current: 10A
Over-current protection: 30±5A
Operating temperature range: 0-45℃ (charging), -20~60℃ (discharging)
Overcharge protection: 4.25V±0.025V
Over-discharge protection: 2.5V±0.05V
Charging Balance Function
Equalization starting voltage: 4.18V±0.025V
Equalization current :50±10mA
Charging temperature protection function :65±5℃
Discharge temperature protection function :65±5℃
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
