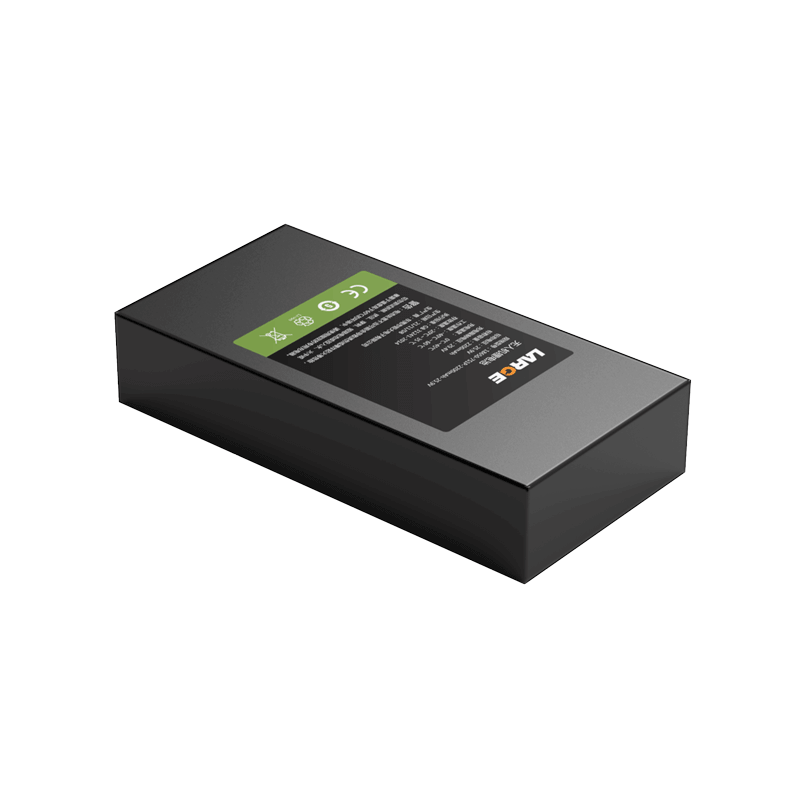

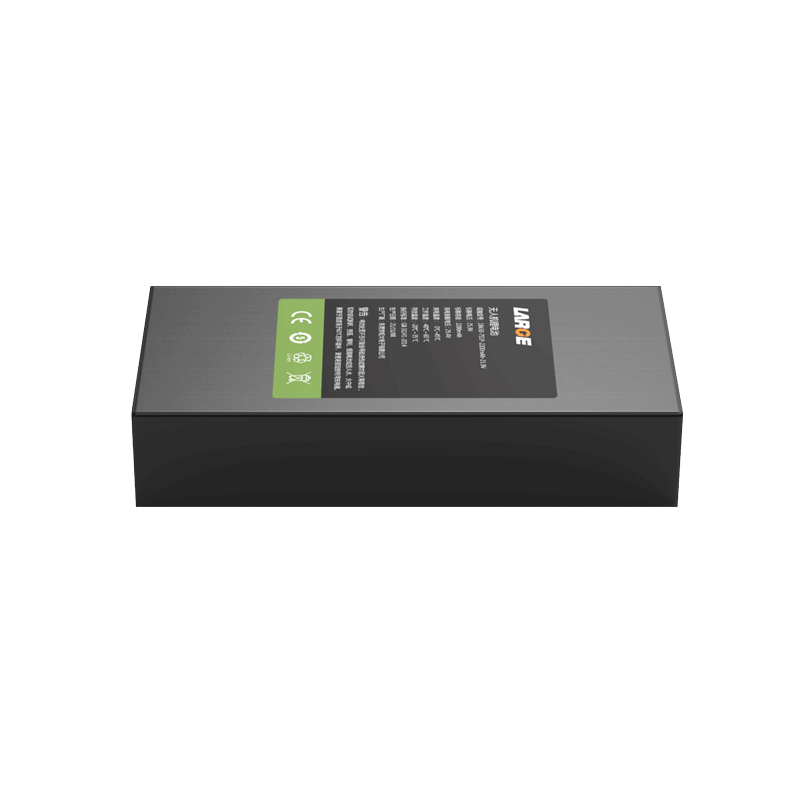

Custom Lithium ion Battery Pack
Product number: 35AQ224-01
Cell model: 18650-2200MAH-3.7V
Specification: 18650-7S1P-2200MAH-25.9V
Product size: 145*72*38mm (Max)
Nominal voltage: 25.9V
Nominal capacity: 2200mAh
Internal resistance of finished product: ≤500mΩ
Charging voltage: 29.4V
Charging current: ≤1A
Discharge current: ≤2A
Discharge cut-off voltage: 17.5V
Battery weight: 370g
Charging temperature: 0 ~ 45℃
Discharge temperature: -40 ~ 60 ℃
Storage temperature: -20 to 35 ° C
Battery package: blue PVC heat shrinkable film package
Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.
Application: UAV
Product Features
1.Blue PVC heat shrinkable film package is simple, reliable and easy to install.
2.Low temperature -40℃ discharge lithium battery
3.Battery protection management: Adopt dedicated lithium battery protection chip with good stability, high precision monitoring and precise control,temperature protection and other functions to eliminate security risks to the greatest extent.
4.The battery pack has good safety, nice low-temperature discharge performance and high low-temperature discharge rate, supporting -40℃ discharge rate and the discharging power is over 60%.
5.The battery pack is safe, has good discharge performance and long cycle life.
6.The battery has long cycle life, in line with low carbon, energy saving, environmental protection values.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
