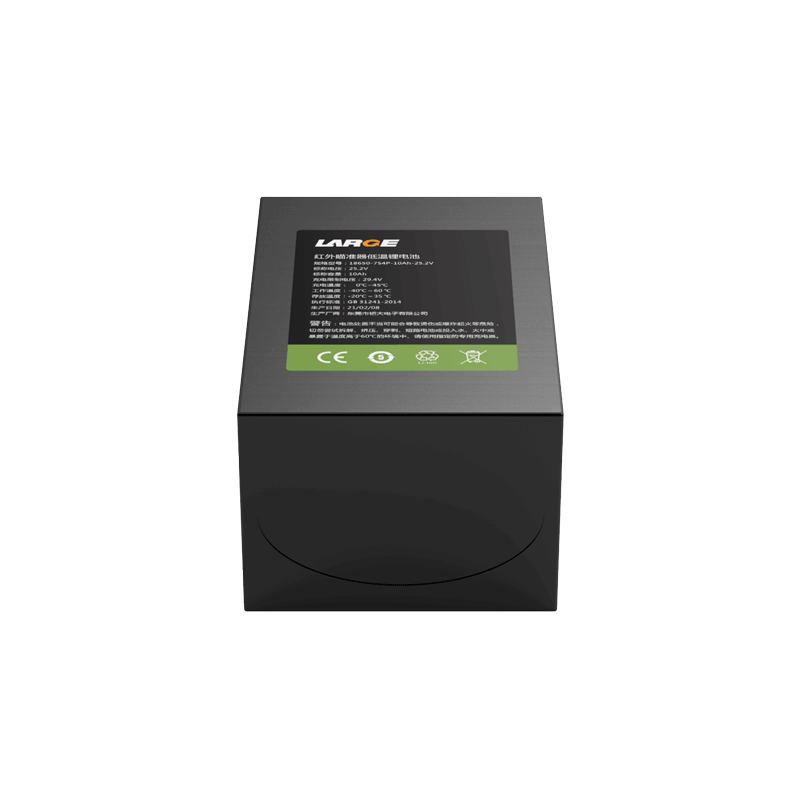

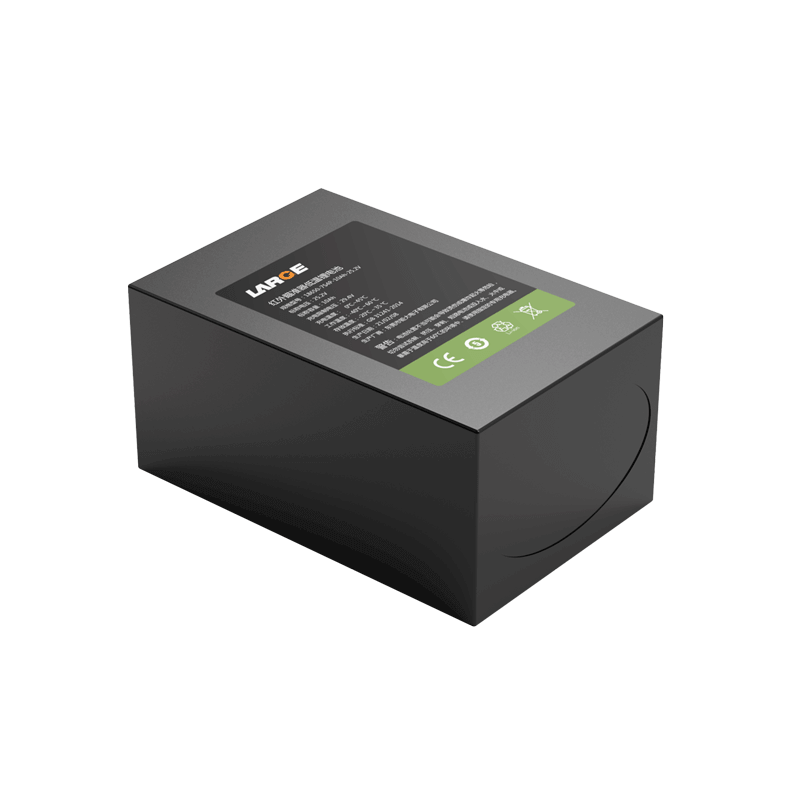

18650 10Ah 25.2V Low Temperature Battery for Infrared Targeting

Customization | Free Battery Solution

Product Detail

Product number: 35AQ211-02

Cell model: 18650-2600MAH-3.6V

Specification: 18650-7S4P-10AH-25.2V

Product size: 154*100*72mm (Max)

Nominal voltage: 25.2V

Nominal capacity: 10Ah

Finished product internal resistance: ≤120mΩ

Charging voltage: 29.4V

Charging current: ≤5A

Discharge current: ≤10A

Discharge cut-off voltage: 17.5V

Battery weight: 1.4kg

Charging temperature: 0 ~ 45℃

Discharge temperature: -40 ~ 60 ℃

Storage temperature: -20 to 35 ° C

Battery case: blue PVC heat shrinkable film package

Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection, etc.

Application: telescopic sight, infrared device, low temperature equipment


Product Features

1.Blue PVC heat shrinkable film package is simple, reliable and easy to install.

2.Low temperature -40℃ discharge lithium battery

3.Battery protection management: Adopt dedicated lithium battery protection chip with good stability, high precision monitoring and precise control, temperature protection to eliminate security risks to the greatest extent.

4.BMS communication uses opto-isolator, allowing customers to communicate on a 232 bus at a baud rate of 9600bps.

5.The battery pack has good safety, nice low-temperature discharge performance and high low-temperature discharge rate, supporting -40℃ discharge rate and discharging power of over 60%.

6.The battery pack is safe, has good discharge performance and long cycle life.

7.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
