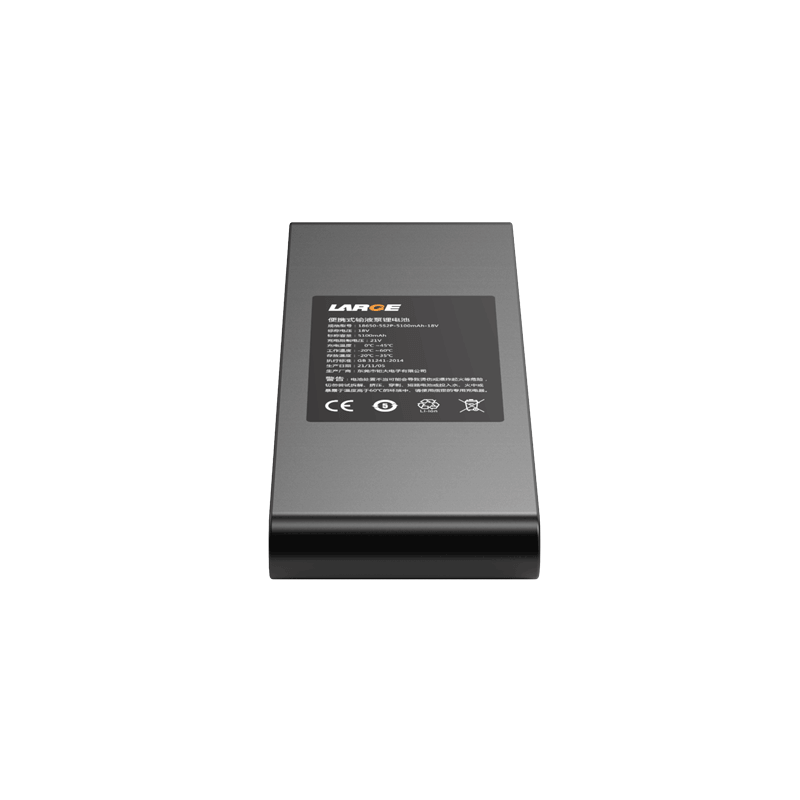

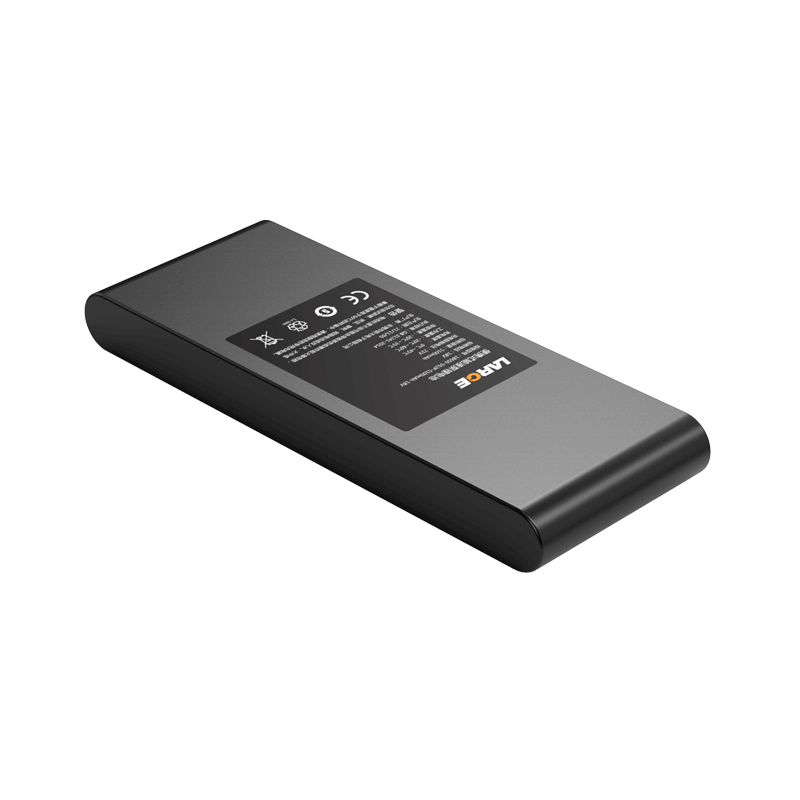

Custom Lithium ion Battery Pack
Product number: 08AQ606-06
Cell model: 18650-2550MAH-3.6V
Specification: 18650-5S2P-5100MAH-18V
Nominal voltage: 18V
Nominal capacity: 5100mAh
Charging voltage: 21V
Charging current: ≤ 2.5A
Discharge current: ≤5.0A
Discharge cut-off voltage: 13.5V
Internal resistance of finished product: ≤300mΩ
Battery weight: 510G
Product size: Max:210*75*22mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60 ℃
Storage temperature: -20 to 35 ° C
Battery case: PVC heat shrinkable film package
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Portable infusion pump medical equipment, portable medical equipment
Product Features
1.Blue PVC heat shrinkable film package is simple, reliable and easy to install.
2.Communication management: Use TI-IIC software management chip, IIC communication precise data transmission, accurate temperature control to eliminate security risks.
3.Battery management: Adopt TI protection chip with good stability, high precision monitoring, precise control, ESD protection, temperature protection and other functions.
4.The battery pack is safe, has good discharge performance and long cycle life.
5.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
